Bose PS3-2-1 User Manual

14
System Setup
English

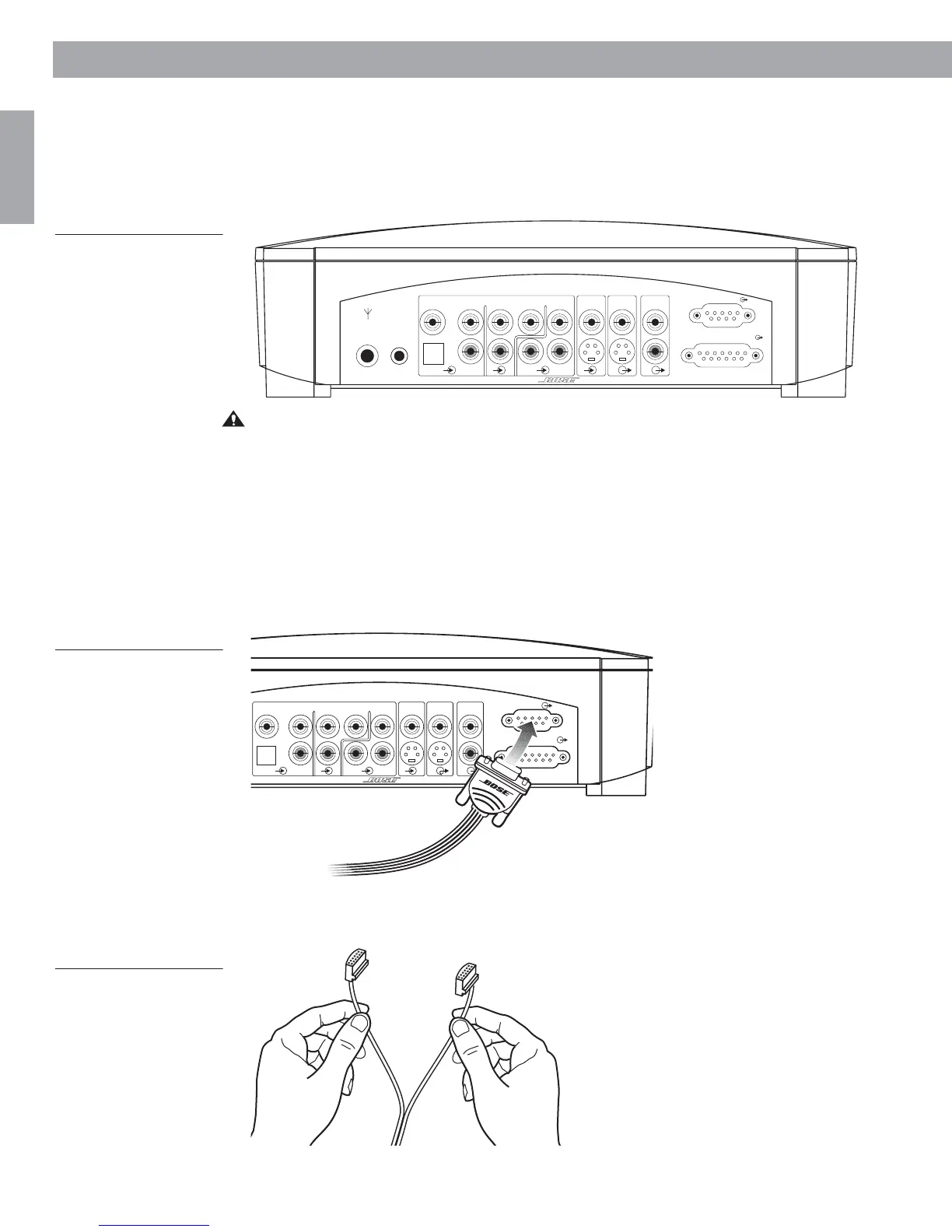

Making the connections
The components of the 3•2•1 and 3•2•1 GS home entertainment systems are
connected through the media center, using custom cables supplied with the system. The
jacks on the rear of the media center are labeled (Figure 9), to help get everything hooked up
right the first time.
Figure 9
Connection panel on the
rear of the media center
CAUTION: Do not plug the music system into an AC power (mains) outlet until all the
components are connected.
Additional cables
If additional audio cables or longer cables are needed to make these connections, contact
Bose. Before you call, refer to the list of offices included in the product carton.
Connecting the 3•2•1 speakers
1. Insert the single-plug end of the speaker cable into the SPEAKERS connector on the rear
panel of the media center (Figure 10). Tighten the screws on either side of the plug.
Figure 10
Connecting the speaker
cable to the media center
2. Grasp the two connectors at the other end of the speaker cable and pull the two strands
of cable apart as much as necessary to reach each speaker (Figure 11).
Figure 11
Pulling apart the left and
right strands of speaker
cable
L L
R
D
D
L
R
C
S
C
S
L
R
VIDEO 1 VIDEO 2 AUX
AUDIO INPUT
AUDIO
OUTPUT
VIDEO
OUTPUT
VIDEO
INPUT
OPTICAL
75
1
FM
ANTENNA
AM
LOOP
ANTENNA
SPEAKERS
ACOUSTIMASS
MODULE
D
R
L
R
L
R
D
D
L
R
C
S
C
S
L
R
VIDEO IDEO 2 AUX
AUDIO INPUT
AUDIO
OUTPUT
VIDEO
OUTPUT
VIDEO
INPUT
OPTICAL
SPEAKERS
ACOUSTIMASS MODULE
D
6SHDNHUFDEOH
AM271966_00_V.pdf August 18, 2003

Bose PS3-2-1 Specifications

General

Type	Home Theater System
Tuner	AM/FM
Remote Control	Yes
Media Playback	CD
Subwoofer	Yes
