CD player, tape deck,
or VCR
Audio output jacks
If there are two sets of
outputs (fixed and
variable), use fixed so
that the volume can
be controlled from the
radio.
AUX IN jacks
Television Audio output jacks
If there are two sets of
outputs (fixed and
variable), use fixed so
that the volume can
be controlled from the
radio.
AUX IN jacks
Stereo cable with
male-to-male RCA
plugs.
AUX IN jacksBose
®
Lifestyle
®
music system
Powered Bose
speakers
Speaker system input
(as described in the
speaker owner’s
manual)
VARIABLE OUT jacks
Headphone jack
For best sound, set
the player volume
control to approxi-
mately
3
/
4
of maximum
volume.
Portable CD or tape
player
AUX IN jacks
One miniplug-to-
stereo audio cable
Use the audio input
cable that came with
your speakers.
If your Bose audio input cable has
three connectors at the non-speakers
end, use only the two connectors that
look alike to connect to the radio
outputs. DO NOT USE THE THIRD
CONNECTOR.
Connecting speakers to the VARI-
ABLE OUT jacks shuts off the radio
speakers.

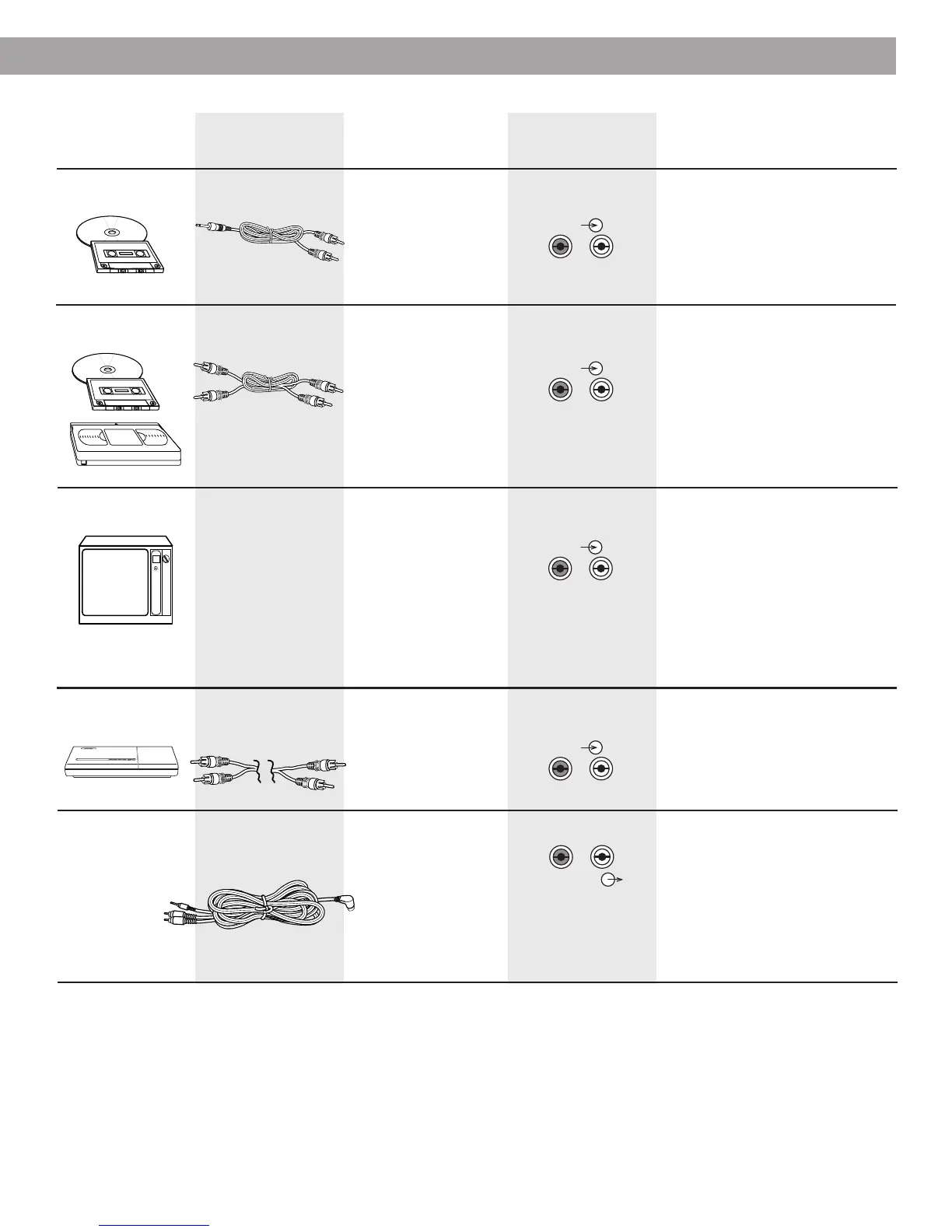

Setting Up
®
Connection at Connection at
Component Cable component Wave radio Note
Use a standard RCA
cable for a TV with
stereo output jacks.
Use a standard Y
adapter for a TV with a
single (mono) audio
output jack.
You may need a special
adapter for a TV with a
headphone outlet.
TAPE (REC) jacks
One stereo audio
cable
Recording from your Wave
®
radio is not
recommended because connections to
the VARIABLE OUT jacks shut off the
radio speakers, preventing you from
monitoring the recording volume.
To make sure the sound seems to
come from the screen, place the
Wave radio close to the TV. If there is
any interference with the TV picture,
move the radio farther away.
CAUTION:
To prevent interference
with the TV picture, do not place the
Wave radio directly on top of the TV.
VARIABLE OUT
RL
AUX IN
RL
AUX IN
RL
AUX IN
RL
AUX IN
