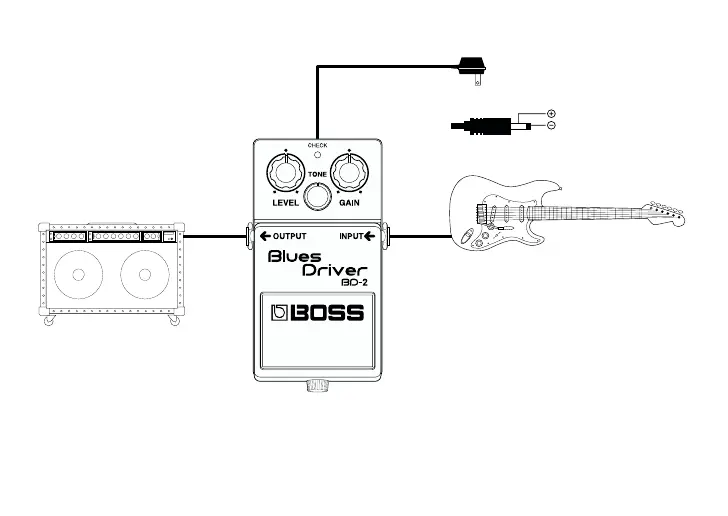

MAKING THE CONNECTIONS
* Inserting a plug into the Input Jack will automatically switch the unit on.
* Before connecting or disconnecting any patch cords, be sure all the volume controls in your system
are set to minimum. This will help prevent any damage to system components.
AC Adaptor
(
PSA-Series ; Optional
)
Electric Guitar
Amplifier
OUT 9V DC / 200 mA
