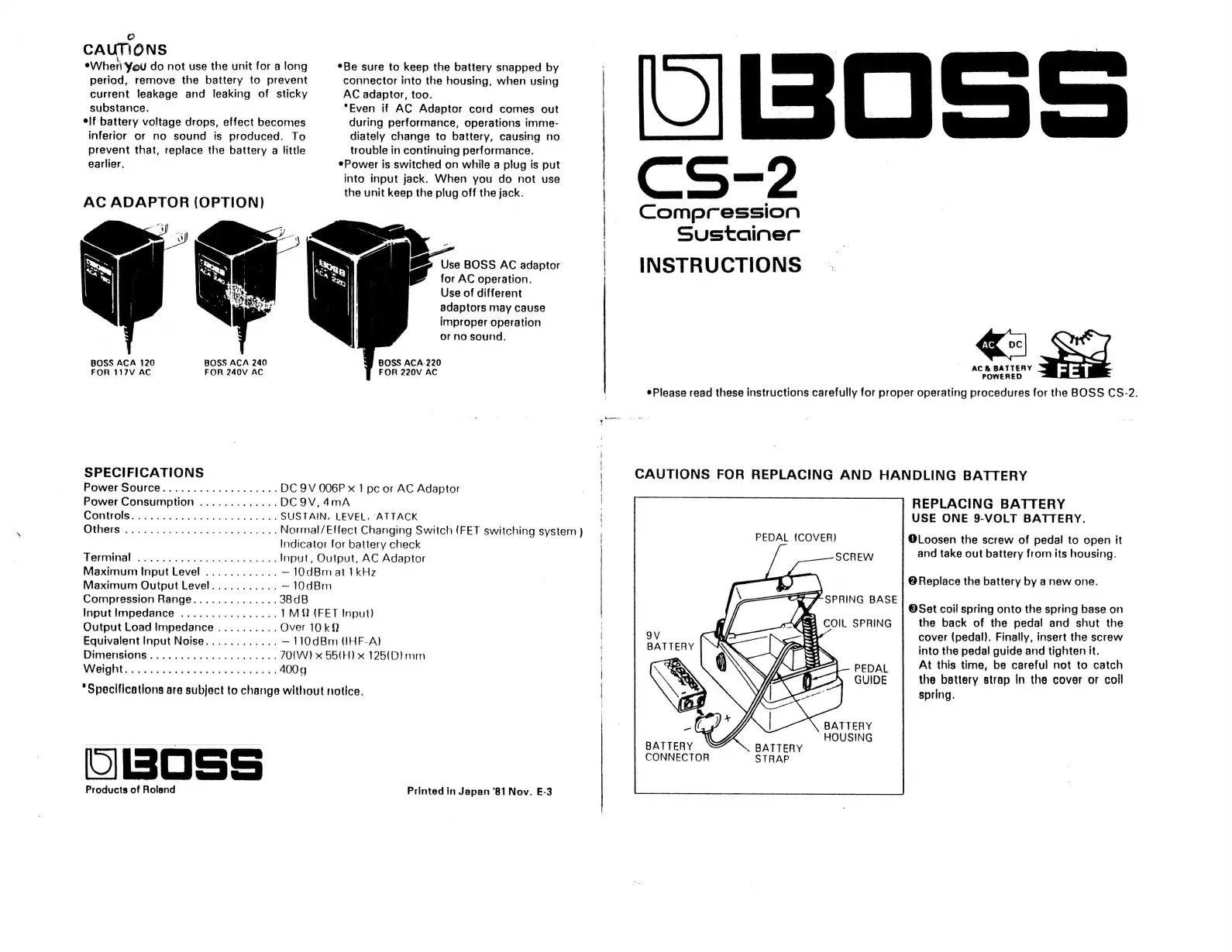

Boss Compression Sustainer CS-2 - Page 2

o
CAUTIONS
*Wheri You do not use the unit for a long
period, remove the battery to prevent
current leakage and leaking of sticky
substance.
elf battery voltage drops, effect becomes
inferior or no sound is produced. To
prevent that, replace the battery a little
earlier.
AC ADAPTOR (OPTION)
BOSS ACA 240
BOSS ACA 120
FOR 117V AC FOR 240V AC FOR 220V AC
SPECIFICATIONS
PowerSource................... DC 9V 006P x 1 pc or AC Adaptor
Power Consumption ............. DC9V,4mA
COM ONS Kamaz cata iaa de SUSTAIN, LEVEL. ‘ATTACK
A Bae EM Normal/Effect Changing Switch (FET switching system )
Indicator for battery check
Terminal sera ad ane yates ER Input, Output, AC Adaptor
Maximum Input Level ............ — 10dBm at 1kHz
Maximum Output Level........... — 10dBm
Compression Range.............. 38 dB
Input Impedance ................ IM (FET Input)
Output Load Impedance .......... Over 10k
Equivalent Input Noise............ — 110dBm (IHF-A)
Dimensions..................... 70(W) x 55(H) x 125(D) mm
Well. ei iocari lim aoe 400g
*Be sure to keep the battery snapped by
connector into the housing, when using
AC adaptor, too.
*Even if AC Adaptor cord comes out
during performance, operations imme-
diately change to battery, causing no
trouble in continuing performance.
*Power is switched on while a plug is put
into input jack. When you do not use
the unit keep the plug off the jack.
for AC operation.
Use of different
adaptors may cause
improper operation
or no sound.
BOSS ACA.220
"Specifications are subject to change without notice.
UBOSS
Products of Roland
Printed in Japan '81 Nov. E-3
Compression
Sustainer
INSTRUCTIONS
AC & BATTERY
POWERED
ePlease read these instructions carefully for proper operating procedures for the BOSS CS-2.
CAUTIONS FOR REPLACING AND HANDLING BATTERY
REPLACING BATTERY
USE ONE 9-VOLT BATTERY.
PEDAL (COVER) @Loosen the screw of pedal to open it
and take out battery from its housing.
@ Replace the battery by a new one.
SPRING BASE
O Set coil spring onto the spring base on
4 COIL SPRING the back of the pedal and shut the
9V cover (pedal). Finally, insert the screw
into the pedal guide and tighten it.
At this time, be careful not to catch
the battery strap İn the cover or coil
spring.
BATTERY
a
BATTERY
HOUSING
BATTERY BATTERY
CONNECTOR STRAP
