ASSEMBLING YOUR bbq

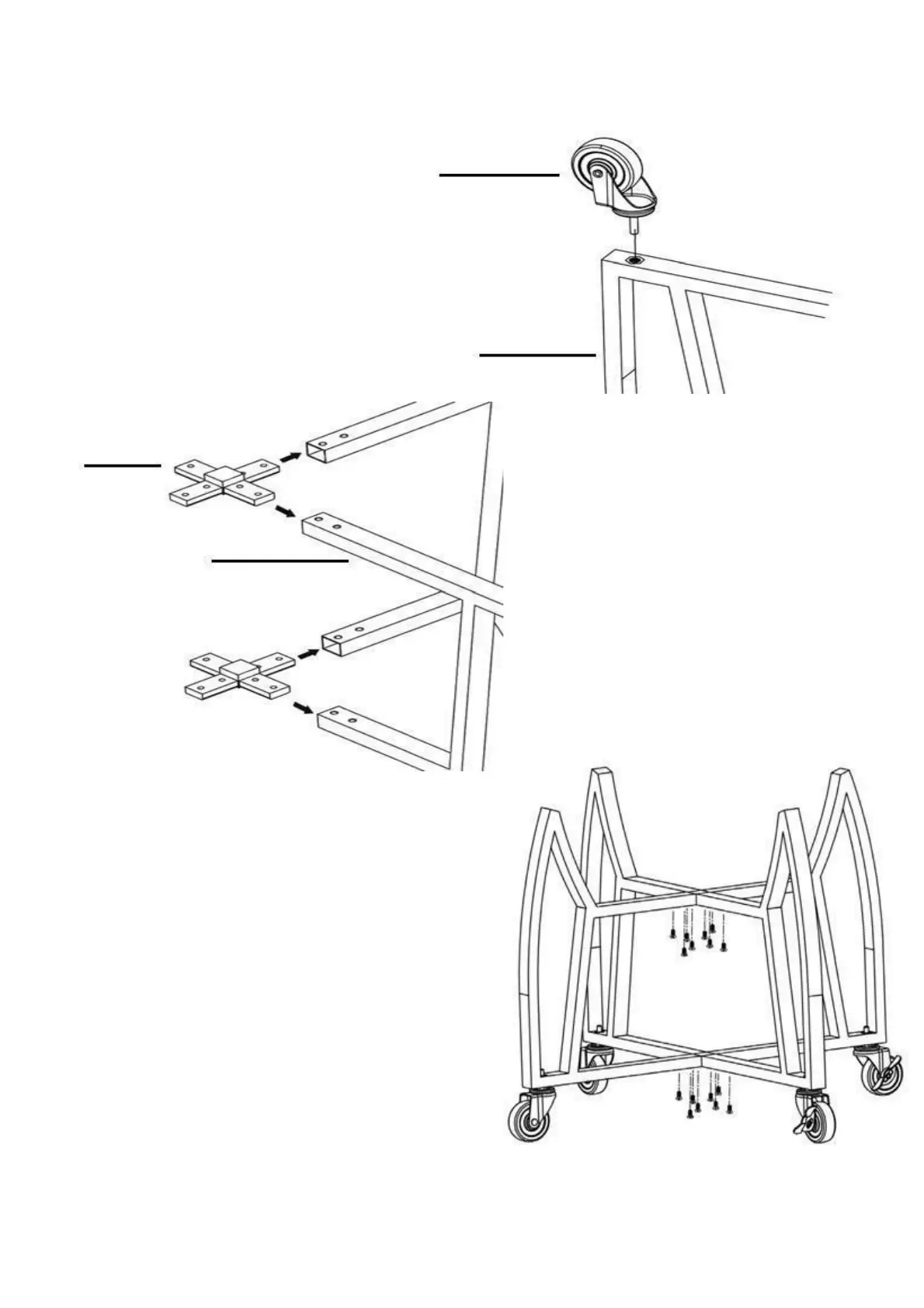

STEP 1 - ATTACH THE CASTORS
Screw the castors (2 & 3) into the base
of each of the four Frame Sections (1).
These should be tightened by hand.
STEP 2 - ASSEMBLE THE FRAME
To assemble the frame, insert the two Frame
Brackets (4) into two of the Frame Sections
(1) on both the top and bottom joints.
STEP 3 - COMPLETE THE FRAME
Fix the cross pieces fitted in step 2 by loosely tightening
2 x Bolts (A) into both the top and bottom of the frame
into the Frame Bracket.
Once the two Frame Sections are fitted to the Bracket,
place the other Frame Sections onto the bracket and
secure in the same way.
When all 4 Frame sections are fitted (Using 16 x Bolts) all
the bolts can be fully tightened.
