34
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SIZE
DWG NO
REV
SCALE
SHEET OF
DRAWN
PATH
TITLE
CHECKED
MATERIAL
THIS DRAWING AND ALL
INFORMATION THEREIN IS
THE PROPERTY OF BOSS
INDUSTRIES, INC., IS CON-
FIDENTIAL AND MUST NOT
BEMADE PUBLIC OR
COPIED. IT IS LOANED
SUBJECT TO RETURN UPON
DEMAND, IS NOT TO BE
USED DIRECTLY OR IN-
DIRECTLY IN ANYWAY DE-
TRIMENTIAL TO THE IN-
TEREST OF BOSS INDUS-
TRIES, INC.
DO NOT SCALE
TOLERANCES
UNLESS NOTED
MACHINED SURFACES
NOMINAL DIM.
0.000 TO 1.000
.010
1.001 TO 5.000
.015
5.001 TO 10.000
.020
10.001 & OVER
/
BOSS INDUSTRIES
1761 GENESIS DR.
LA PORTE, IN 46350
G:\INVENTOR 9.0\
Rev. Num.
Rev. Date
EN Num.
Released For
R

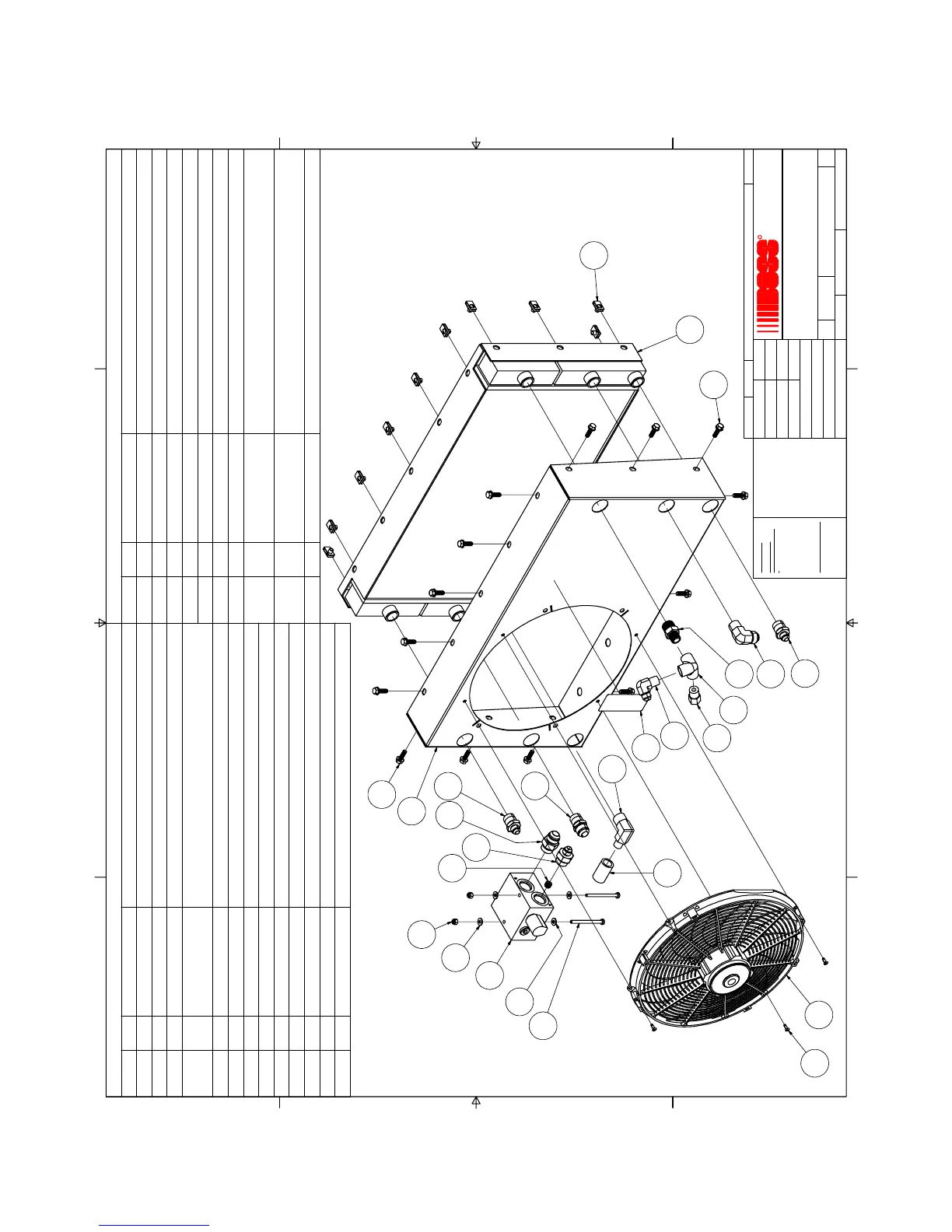

OIL-AIR-HYD CLNG SYS, INFINITY SCI8G 08
200356-999
1 1
0
C
DCL
12/3/2007
NDD
12/4/2007
Parts List
ITEM
QTY
PART NUMBER
DESCRIPTION
1 1 302570
COOLER, COMPR/HYD/AIR 30 X 16
2 1 302087 BULBWELL, 5/8 UNF X 1/2 NPT
3 14 929705-100 BOLT, WHIZLOCK GR5 5/16-18 X 1
4 1 302622 FAN ASSY, WITH MOTOR AND GRILL 14.09
PUSHER CURVED BLADE
5
2 960108-075 CONNECTOR, 1/2 MJIC X 3/4 MNPT
6 1 960208-050 ELBOW, 1/2 JIC X 1/2 MNPT
7
1 984112-050 ELBOW, HYD 3/4 MNPT X 1/2 MNPT
8 1 907215-020 COUPLING, PIPE 1/2 GAL 150 PSI
9 14 961505-140 NUT, TINNERMAN 5/16-18
10 1 961612-050 NIPPLE, HYD HEX RED 3/4 X 1/2
11 1 960112-075 CONNECTOR, 3/4 MJIC X 3/4 MNPT
12 1 902615-020 ELBOW, PIPE SIDE OUT 1/2 GAL 150PSI
13 1 960212-075 ELBOW, HYD 3/4 MJIC X 3/4 MNPT
Parts List
ITEM
QTY
PART NUMBER
DESCRIPTION
14 1 302397
BOX, COOLER SHROUD INFINITY (REV 3)
15 4 943104-038 RIVET, POP 1/4 X 3/8 ALUMINUM
16 1 300041 DECAL, WARNING FAN GUARD
17 1 970508-106 CONNECTOR, 1/2 MJIC X -12 MSAE
18 4 938604-071 WASHER, FLAT GR5 1/4
19 2 924304-145 NUT, NYLOC GR5 1/4-20
20 2 929104-325 BOLT, HEX GR5 1/4-20 X 3 1/4
21 1 80056-13-12 KIT, HYD VALVE BLOCK 13GPM FLOW
CONTROL
22 1 304700 VALVE, CHECK -12JIC M X -12SAE M FLOW
JIC TO SAE
23 1 306812-282 ORIFICE, BLACK .282 FOR HYD BLOCK
8
11
5
20
18
21
18
19
14
3
16
6
2
12
10
13
5
3
1
9
15
4
23
22
17
7
