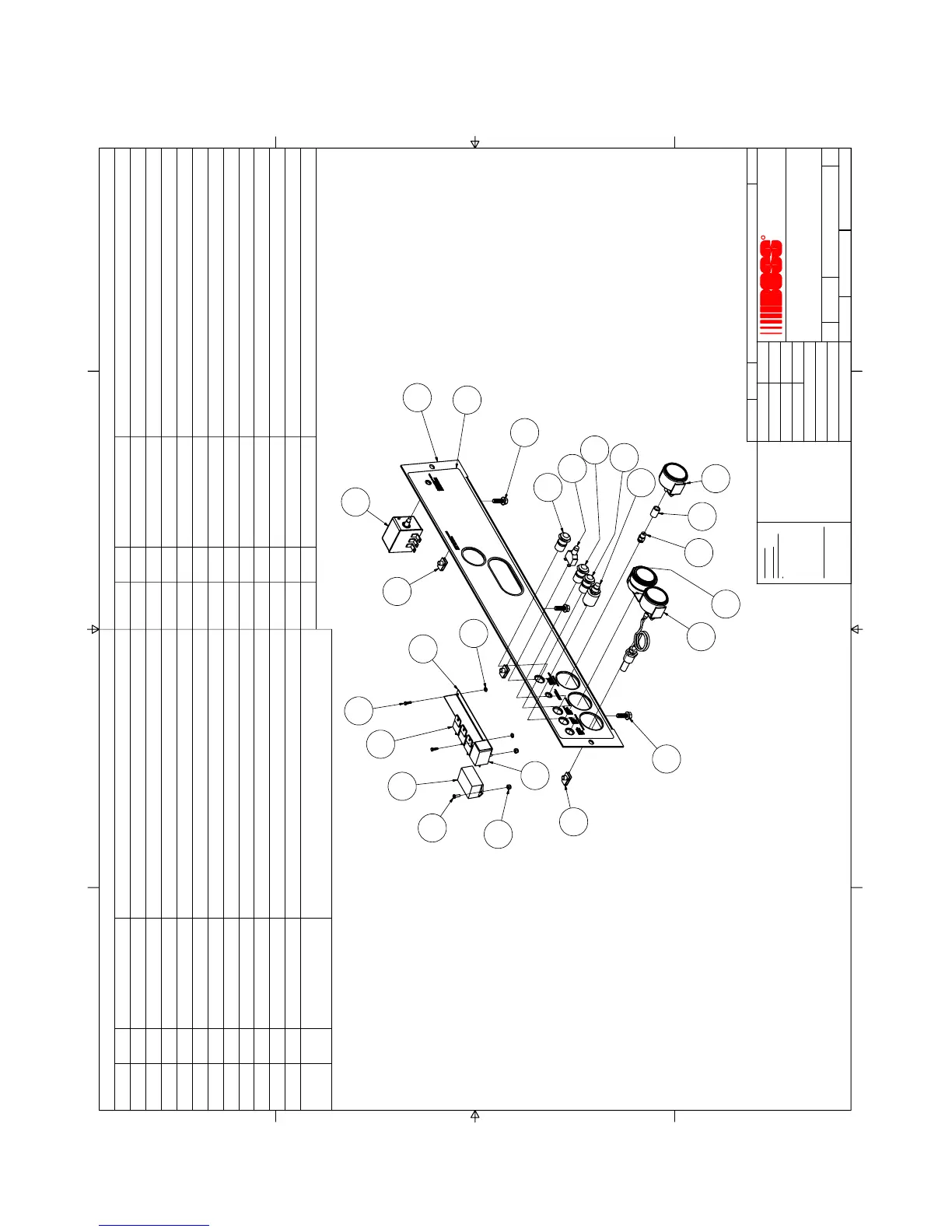

Boss Infinity - Page 32

33
1 1
2 2
3 3
4 4
A A B B
C C D D
SIZE
DWG NO
REV
SCALE
SHEET OF
DRAWN PATH
TITLE
CHECKED
MATERIAL
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF BOSS INDUSTRIES, INC., IS CON- FIDENTIAL AND MUST NOT BEMADE PUBLIC OR COPIED. IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR IN- DIRECTLY IN ANYWAY DE- TRIMENTIAL TO THE IN- TEREST OF BOSS INDUS- TRIES, INC.
DO NOT SCALE
TOLERANCES UNLESS NOTED MACHINED SURFACES NOMINAL DIM. 0.000 TO 1.000

.010
1.001 TO 5.000

.015
5.001 TO 10.000

.020
10.001 & OVER
 

   
/

  
BOSS INDUSTRIES
1761 GENESIS DR.
LA PORTE, IN 46350
G:\INVENTOR 9.0\
Rev. Num.
Rev. Date
EN Num.
Released For
R
ELEC SYS, INFINITY 45-60-150 SCI8G 08
200355-999
1 1
0
C
DCL
12/3/2007
NDD
12/4/2007
Parts List
ITEM
QTY
PART NUMBER
DESCRIPTION
1 1 307192
PANEL, GAUGE & LIGHTS INFINITY 08
2 1 300074 GAUGE, HOURMETER 3 1 302449 LIGHT, INDICATING GREEN 4 2 302450 LIGHT, INDICATING RED 5 1 302592 SWITCH, N O MOMENTARY SPST 6 1 302486 BREAKER, PANEL MTG RESET 7
3 929705-100 BOLT, WHIZLOCK GR5 5/16-18 X 1
8 3 961505-140 NUT, TINNERMAN 5/16-18 9 1 307191 DECAL, INFINITY 08 GAUGE PANEL
10 1 300076-004 SWITCHGAUGE, TMP 4 ft - 250 11 1 300075 SWITCHGAUGE, PRESSURE 12 1 302591 SWITCH, SHUTDOWN 117LF WITHOUT FUSE
(REV 1)
Parts List
ITEM
QTY
PART NUMBER
DESCRIPTION
13 1 901215-005
COUPLING, PIPE 1/8 GAL 150PSI
14 1 980604-012 CONNECTOR, TUBE 1/4 PAR X 1/8 NPT 15 3 300211 RELAY, POWER 16 1 307196 ENCLOSURE, COMPACT RELAY 17 4 931201-050 SCREW, MACH RD HD #8-32 X 1/2 18 4 924301-156 NUT, NYLOC GR5 #8-32 19 1 302678 BRACKET, RELAY HOLDER INFINITY (REV 2) 20 2 929102-050 BOLT, HEX GR5 #6-32 X 1/2 21 1 302780 TIMER, RELAY 12V 30 SEC N.C. 22 2 924200-114 NUT, MACH #6-32
NS 1 307193 HARNESS, WIRING INFINITY 08 NS .083 307190 RELAY, COMPACT 12VDC 30MA
1
9
7
12
8
20
19
22
21
15
16
17
18
8
7
10
2
14
13
11
4
6
3
4
5
