Parts List
DESCRIPTIONPART NUMBERQTYITEM
PANEL, CANOPY BACK-END INFINITY (REV 4)30239211
PANEL, CANOPY HYD END INFINITY (REV 6)302395 12
PANEL, CANOPY AIR END INFINITY30239613
DOOR, CANOPY INFINITY (REV 4)30239414
LATCH, BULLET
30138325
HINGE, INFINITY ALUM 3.0" OPEN FACE .18PIN 1/2
KNUCKLE (REV 1)
30244216
NUT, TINNERMAN 1/4-20961504-09012
7
BOLT, BTNHD SS STAR-DRIVE 1/4-20 X 3/4983904-075108
WASHER, NYLON 1/4 X .06 X .62
977004-062109
NUT, TINNERMAN 5/16-18961505-140510
BOLT, WHIZLOCK GR5 5/16-18 X 1
929705-100711
WASHER, FLAT GR8 3/8938206-071212
BUMPER, DOOR STOP INFINITY302639213
DECAL, BOSS
300649114
DECAL, HYD PRESS LEXAN302443115
DECAL, HYD TANK LEXAN
302444116
DECAL, AIR LEXAN302445117
DECAL, OIL DRAIN300913118
DECAL, INFINITY (REV 1)
302323119
RIVET, POP 3/16 X 1/2 ALUMINUM943103-0252420
NUT, NYLOC GR5 5/16-18
924305-166221
WASHER, FLAT WIDE 1/4 SS984004-0711022
DECAL, WARNING CONNECT AIR300042123
DECAL, SERIAL TAG BOSS (REV 1)
305761124
GROMMET, 1 7/8 OD X 1 1/4 ID X 1/16 THK307433125
CLIP, 1/2" HYD HOSE HOLDER302613226
TAPE, 1/16 X 1/2 CLOSED CELLO3004448 FTNS
SHEET
200354
1 1
OF
REV
1

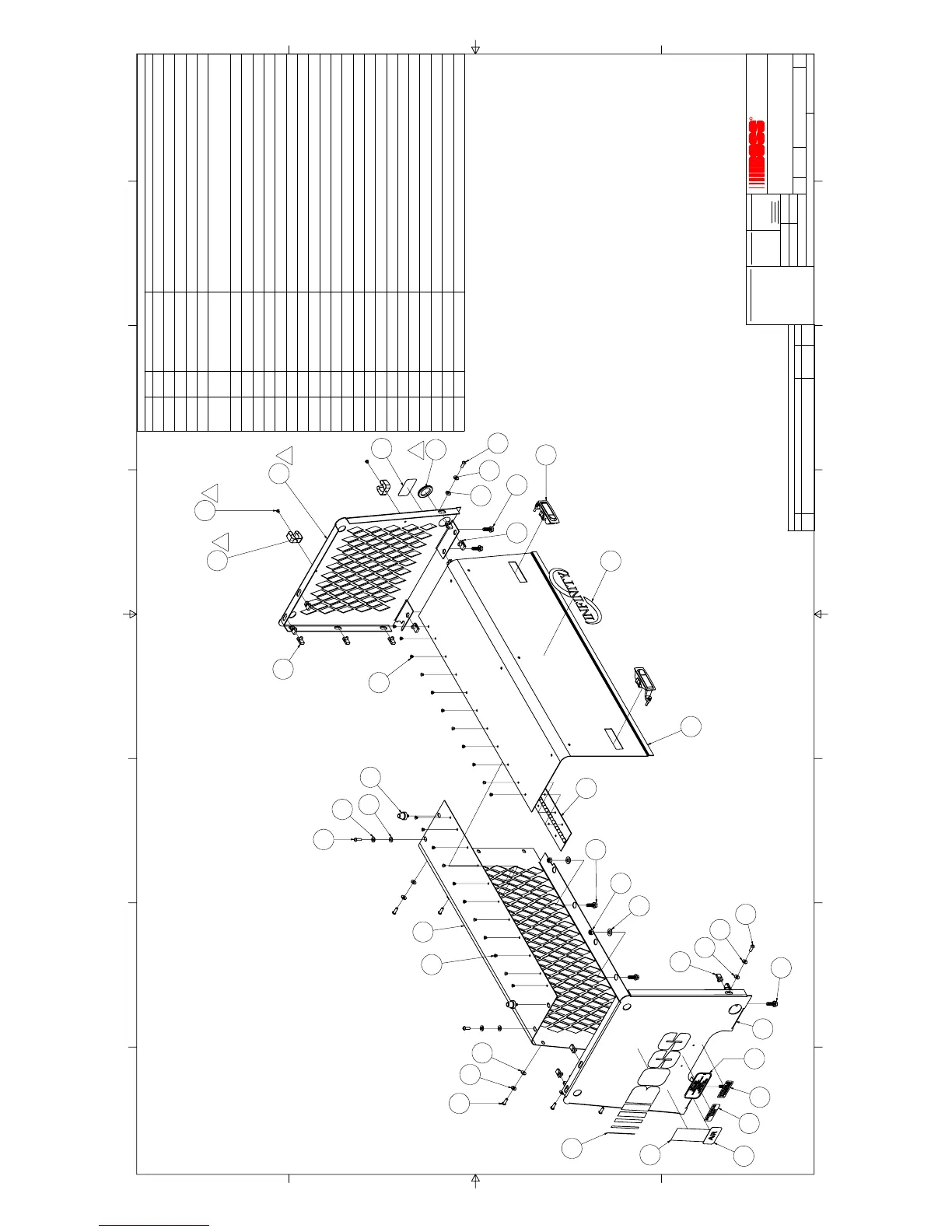

CANOPY SYS, INFINITY 45-60-150 SCI8G 08
BOSS INDUSTRIES
1761 GENESIS DR.
LA PORTE, IN 46350
N/A
PATH
MATERIAL
G:\Inventor Files\200k\200354.dwg
12/3/2007
12/3/2007
DCL
DRAWN
NDD
CHECKED
1=4
D
DESCRIPTION
DWG NO
R
SCALE
SIZE
UNMACHINE D SURFACES
FRACTIONAL
`
1/16
DECIMAL
`
.03
ANGULAR
`
1°
DO NOT SCALE
TOLERANCES
UNLESS NOTED
MACHINED SURFACES
NOMINAL DIM.
0.000 TO 1.000
`
.010
1.001 TO 5.000
`
.015
5.001 TO 10.000
`
.020
10.001 & OV ER
`
.025
THIS DRAWING AND ALL ITS
CONTENTS ARE PROPERTY
OF BOSS INDUSTRIES, INC.
AND MUST NOT BE COPIED
OR MADE PUBLIC. IT IS
LOANED AND IS SUBJECT TO
RETURN UPON DEMAND. THE
INFORMATION CONTAINED IN
THIS DRAWING IS
CONFID ENTIAL AND MUST
NOT BE USED, DIRECTLY OR
INDIRECTLY, IN ANY WAY
DETRIMENTAL TO THE
INTEREST OF BOSS
INDUSTRIES, INC.
PROPRIETARY INFORMATION
18
9
22
8
3
11
5
19
6
4
11
21
12
7
20
13
9
22
8
1
20
9
22
8
14
23
17
16
15
24
2
11
7
9
22
8
10
26
20
25
REVISION HISTORY
REV DESCRIPTION DATE ENG
1
ADDED (1) 307433, (2) 302613, (2) 943103-025.
UPDATED 302396 TO REV 4.
5/23/2008 MCM
