BOSS Phaser PH-1 gives you
a sharp phase effect with a
wide range from very slow to
fast speed. The well-thought-
out Jow-noise construction
and natural phase sound will
wield an unprecedented pow-
er in studio and on stage.

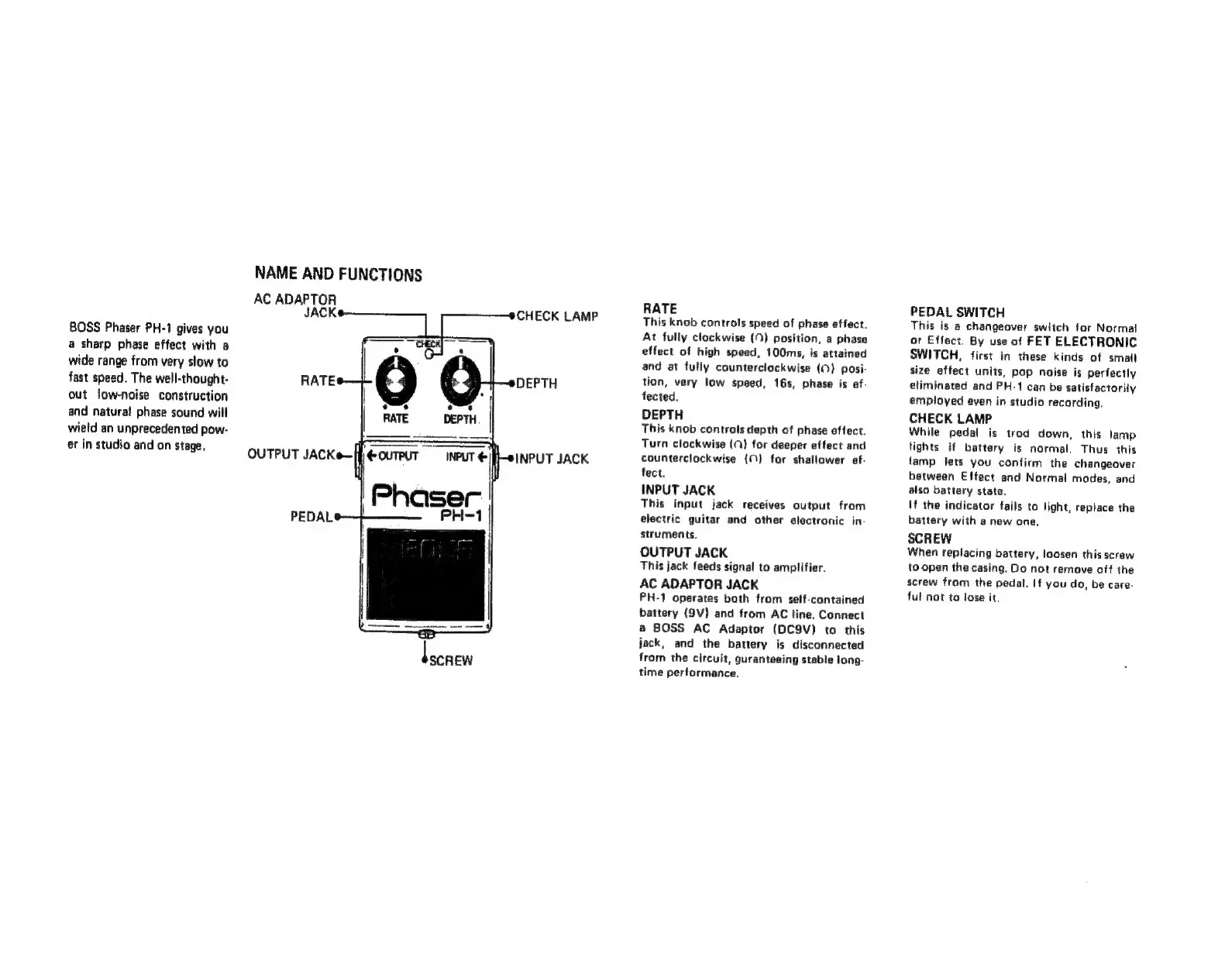

NAME
AND
FUNCTIONS
AC
ADAFTOR
RATE
OUTPUT JACKe~
PEDAL
CHECK LAMP
DEPTH
INPUT JACK
RATE
This knob controls speed of phase effect.
At fully clockwise (Q) position, a phase
effect of high speed, 100ms, is attained
and at fully counterclockwise (O) posi-
tion, very low speed, 16s, phase is ef
fected.
DEPTH
This knob controls depth of phase effect.
Turn clockwise (9) for deeper effect and
counterclockwise (©) for shallower ef-
fect,
INPUT JACK
This input jack receives output from
electric guitar and other electronic in
struments,
OUTPUT JACK
This jack feeds signal to amplifier.
AC ADAPTOR JACK
PH-1 Operates both from self-contained
battery (9V) and from AC line. Connect
a@
BOSS
AC
Adaptor
(DC9V)
to
this
jack,
and
the
battery
is
disconnected
from the circuit, guranteeing stable long-
time performance.
PEDAL SWITCH
This is a changeover switch for Normal
or
Effect.
By
use
of
FET
ELECTRONIC
SWITCH,
first
in
these
kinds
of
small
size
effect
units,
pop
noise
is
perfectly
eliminated and PH-1 can be satisfactorily
employed even in studio recording.
CHECK LAMP
White
pedal
is
trod
down,
this
lamp
tights
if
battery
is
normal.
Thus
this
lamp
lets
you
confirm
the
changeover
between
Effect
and
Normal
modes,
and
also
battery
state.
If
the
indicator
fails
to
light,
replace
the
battery
with
a
new
one,
SCREW
When
replacing
battery,
loosen
this
screw
to
open
the
casing.
Do
not
remove
off
the
screw
from
the
pedal.
If
you
do,
be
care-
ful
not
to
lose
it.
