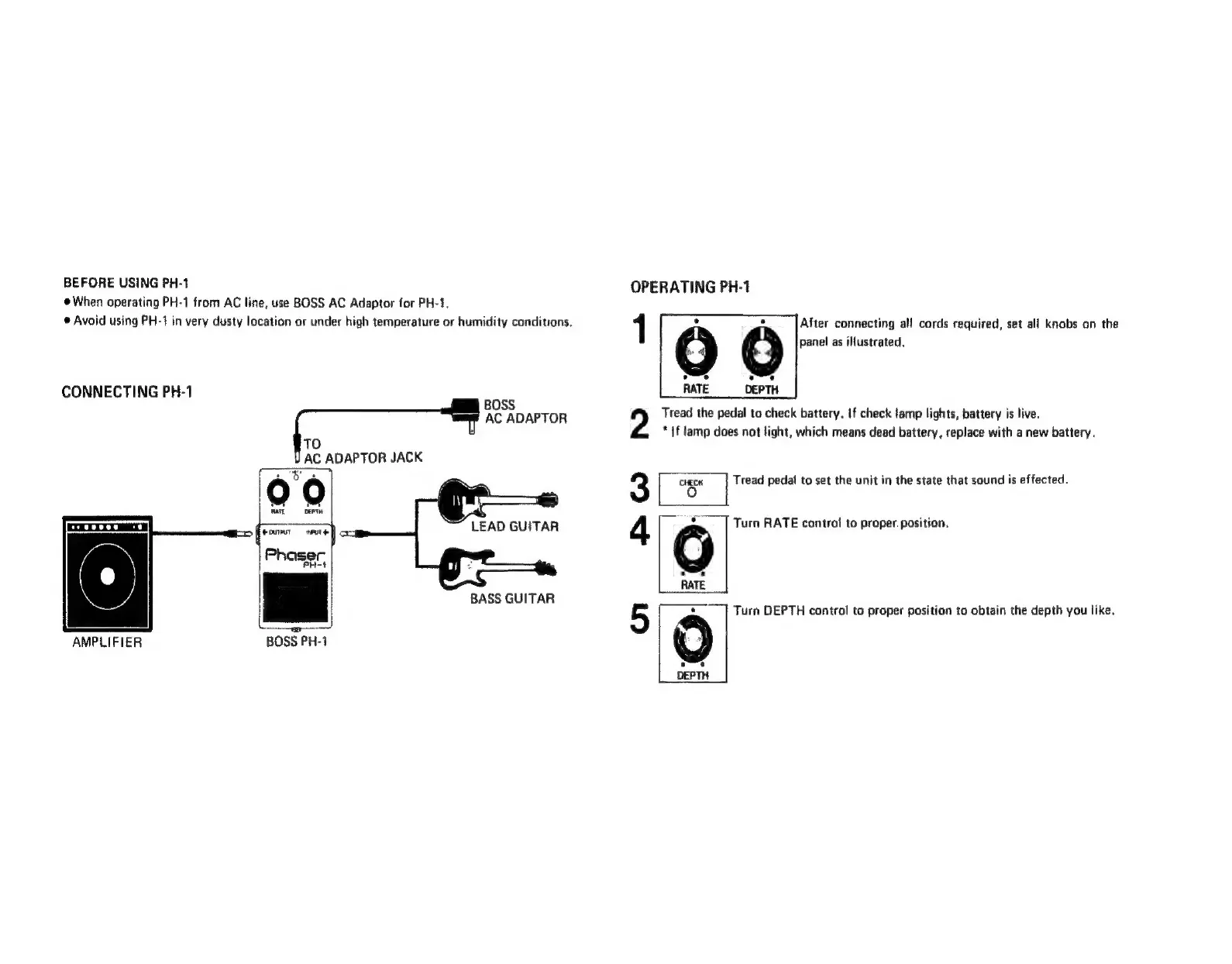

BEFORE USING PH-1
When operating PH-1 from AC line, use BOSS AC Adaptor for PH-1.
© Avoid using PH-1 in very dusty location or under high temperature or humidity conditions.
CONNECTING PH-1
BOSS
AC ADAPTOR
TO
AC ADAPTOR JACK
BASS GUITAR
oY
AMPLIFIER BOSS PH-1
OPERATING PH-1
O
After connecting all cords required, set all knobs on the
panel as illustrated.
1
_ _
RATE OEPTH
2 Tread the pedal to check battery. If check lamp lights, battery is live.
* if lamp does not light, which means dead battery, replace with a new battery.
3 cogs Tread pedal to set the unit in the state that sound is effected.
4 Li Turn RATE control to proper position,
G
RATE
~~] Turn DEPTH control to proper position to obtain the depth you like.
