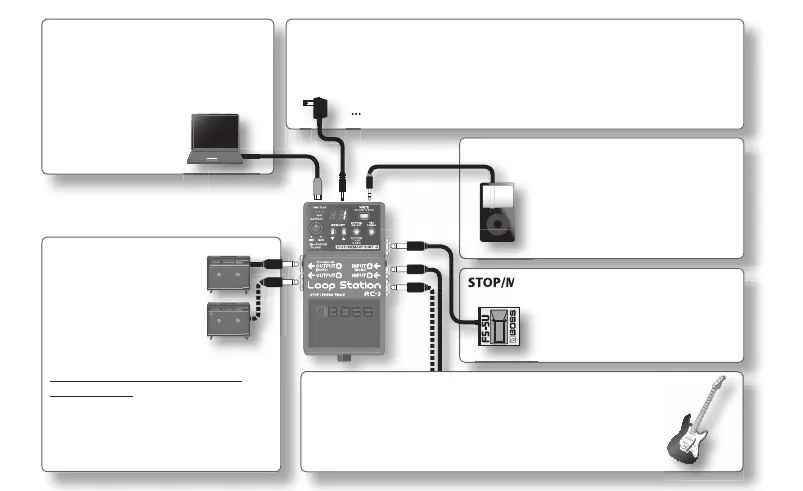

USB connector
You can use a commercially available
USB cable to connect the RC-3 to your
computer, and use the computer to read/
write RC-3 phrases (WAV les) (p. 14).
DC IN jack
Accepts connection of an AC Adaptor (PSA series; optional). By using an AC Adaptor, you
can play without being concerned about how much battery power you have left.
* Use only the speci ed AC adaptor (PSA series), and connect it to an AC
outlet of the correct voltage. Do not use any other AC adaptor, since this
may cause malfunction.
AUX IN jack
Use a stereo mini-plug cable to
connect your audio player here.
By using the Auto recording function
(p. 11), you can start recording the
moment your audio player begins
playback.
OUTPUT A/B jacks
Connect these jacks to your
amp or monitor speakers.
If your system is monaural,
use only the OUTPUT A jack.
Sound that was input in
stereo will also be output
monaurally.
The OUTPUT A jack also operates as
a power switch. The power will be on if
a plug is inserted in the OUTPUT A jack.
Remove the plug when you’re not using
the RC-3.
STOP/MEMORY SHIFT jack
You can connect a separately available
foot switch (FS-5U, FS-6) here, and
use it to stop playback or to switch
phrases (p. 16).
INPUT A/B jacks
Connect your guitar, bass, or e ects unit to these jacks.
Use the INPUT A jack and INPUT B jack when connecting a
stereo-output e ects unit. Use only the INPUT A jack if you’re using
a monaural source.
To Next Page
