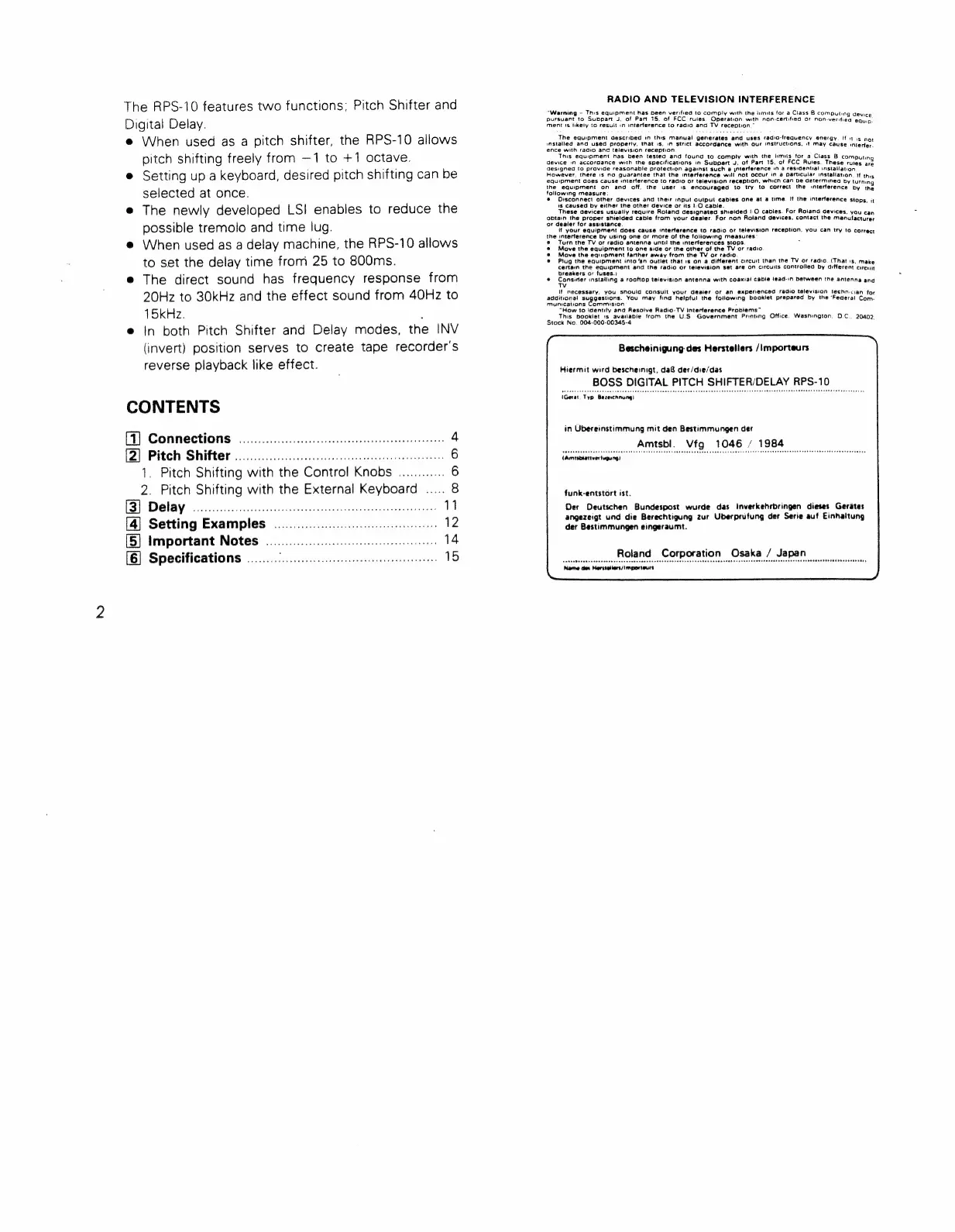

Boss RPS-10 - Page 2

The RPS-10 features two functions; Pitch Shifter and
Digital Delay.
e When used as a pitch shifter, the RPS-10 allows
pitch shifting freely from —1 to +1 octave.
è Setting up a keyboard, desired pitch shifting can be
selected at once.
e The newly developed LSI enables to reduce the
possible tremolo and time lug.
e When used as a delay machine, the RPS-10 allows
to set the delay time from 25 to 800ms.
e The direct sound has frequency response from
20Hz to 30kHz and the effect sound from 40Hz to
15kHz.
r
e in both Pitch Shifter and Delay modes, the INV
(invert) position serves to create tape recorder’s
reverse playback like effect.
CONTENTS
[1] Connections ................aiasieieewanen anae en eaaa teens 4
[Z] Pitch Shifter ................ aaa anaa aia eee 6
1. Pitch Shifting with the Control Knobs ............ 6
2. Pitch Shifting with the External Keyboard ..... 8
[3] Dela, sia ranah NA uot Ng gaga Bg aken 11
[4] Setting Examples 0000000000... 12
[5] Important Notes 0.00.0. 14
[6] Specifications .................. cece 15
