Boss TPSE201 - TPSE101 Wiring Diagrams; Combi Boiler Connections; Wired & Wireless Thermostat Wiring; Connection Types

4

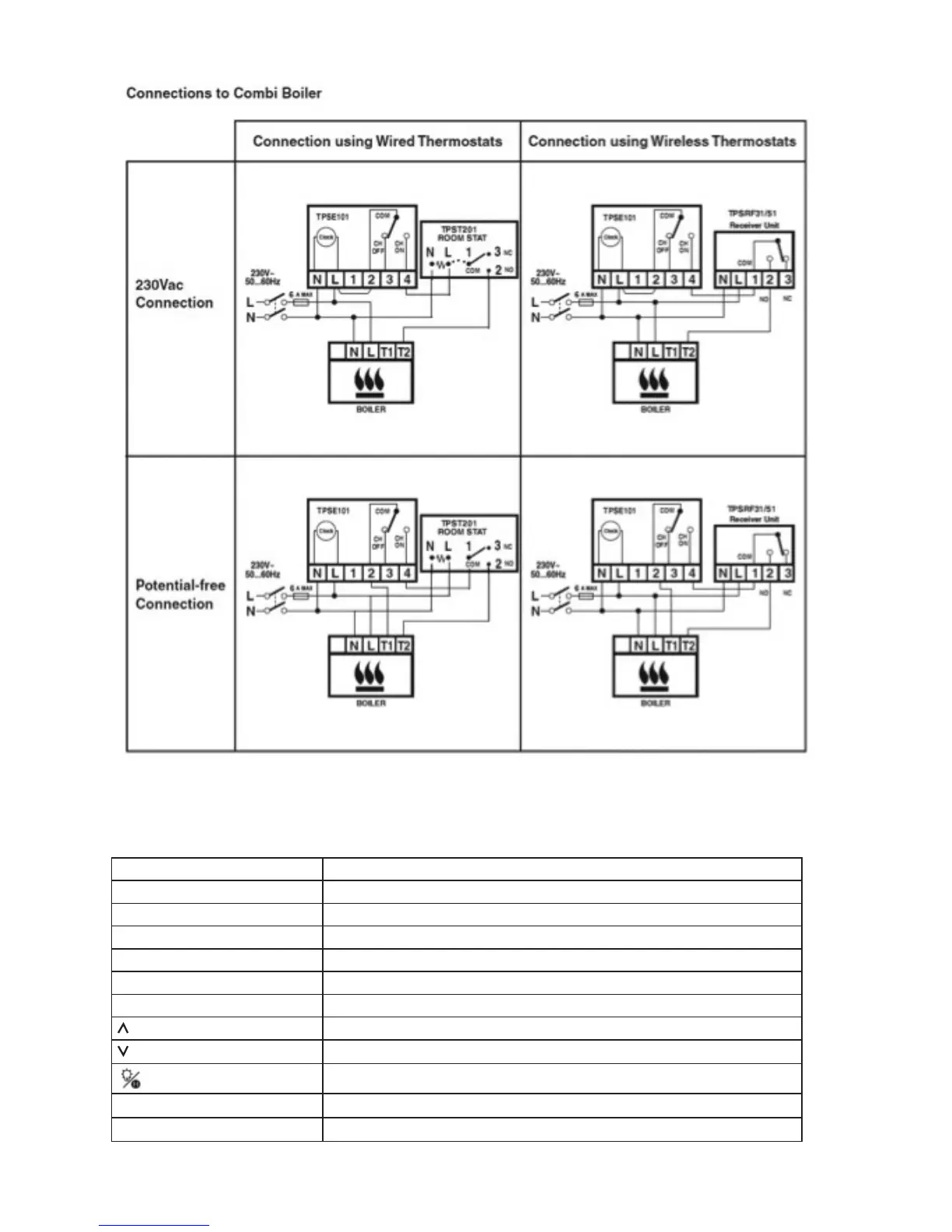

Wiring diagrams (TPSE101)
Note: Wireless thermostat receiver unit MUST have permanent mains power from fused spur to operate correctly.
User Instructions
Keyboard
Key Function
Mode (CH)
Operating mode selection for Central Heating
Hr+ (CH)
Temporary override for Central Heating
Adv (CH)
Advance to next program for Central Heating
Mode (HW) Only for TPSE201
Operating mode selection for Hot Water
Hr+ (HW) Only for TPSE201
Temporary override for Hot Water
Adv (HW) Only for TPSE201
Advance to next program for Hot Water
Increase set Temperature.
Decrease set Temperature.
Turn on backlight for 10 seconds. Activate/de-activate holiday override.
Set
Press to begin/confirm programming settings.
Select
Press to select day(s)/time/temperature.
