Thank You
Thank you for selecting Boston Acoustics
®
Micro speakers. Your speakers have been
designed to deliver years of stunning audio performance. Please keep your manual
in a safe place in case you need to refer to it later. Enjoy your new Micro speakers.
Description
Micro130x, Micro120x, and Micro110x Satellite Speakers
Micro satellites are ideally suited for use as main or surround speakers in a high
quality home theater or music system, or as extension speakers for another room in
the house. The included wall-mount brackets make installation easy, and
MagnaGuard
®
magnetic shielding allows placement next to a television.
MicroCenter and Micro110c Center Channel Speakers
The MicroCenter center channel speaker system delivers exceptionally articulate
on-screen dialog and effects from a small, sleek package. Point-source driver spac-
ing and a low crossover frequency assure wide, uniform horizontal dispersion for
complete coverage of the listening area. MagnaGuard magnetic shielding ensures
the speaker’s magnetic field does not interfere with the television’s picture.
Specifications Micro130x Micro120x Micro110x MicroCenter
Micro110c
Frequency Response 80Hz–22kHz 125Hz–22kHz 155Hz–20kHz 100Hz–22kHz
(±3dB)
Recommended Amplifier 15–125 watts 15–100 watts 15–100 watts 15–125 watts
Power
Nominal Impedance 8 ohms 8 ohms 8 ohms 8 ohms
Sensitivity 90dB 89dB 89dB 90dB
[1 watt (2.83v) at 1m]
Tweeter 1" (25mm) VR
®
1" (25mm) VR
®
3
⁄4" (19mm) 1" (25mm) VR
®
alum. dome alum. dome dome alum. dome
Bass Unit 4
1
⁄2" (114mm) 3
1
⁄2" (89mm) 3" (77mm) two 3
1
⁄2" (89mm)
copolymer copolymer copolymer copolymer
Crossover Frequency 3200Hz 3500Hz 3800Hz 3000Hz
Dimensions 8
7
⁄8 x 5
1
⁄16 x 7
3
⁄16"7
3
⁄16 x 4 x 5
1
⁄4"5
7
⁄8 x 3
5
⁄8 x 4
3
⁄4"4
3
⁄8 x 13
1
⁄8 x 5
3
⁄8"
(HxWxD)
(226 x 129 x 183mm) (183 x 102 x 134mm) (150 x 93 x 121mm) (112 x 334 x 137mm)
Micro110c
3
15
⁄16 x 8
1
⁄4 x3
11
⁄16"
(99 x 210 x 93mm)
Weight 6.5 lbs ea. (2.9kg) 4 lbs ea. (1.8kg) 3 lbs ea. (1.3kg) 6.5 lbs ea. (2.9kg)
Recommended Subwoofer 80Hz 125Hz 150Hz 100Hz
Crossover/LFE Setting

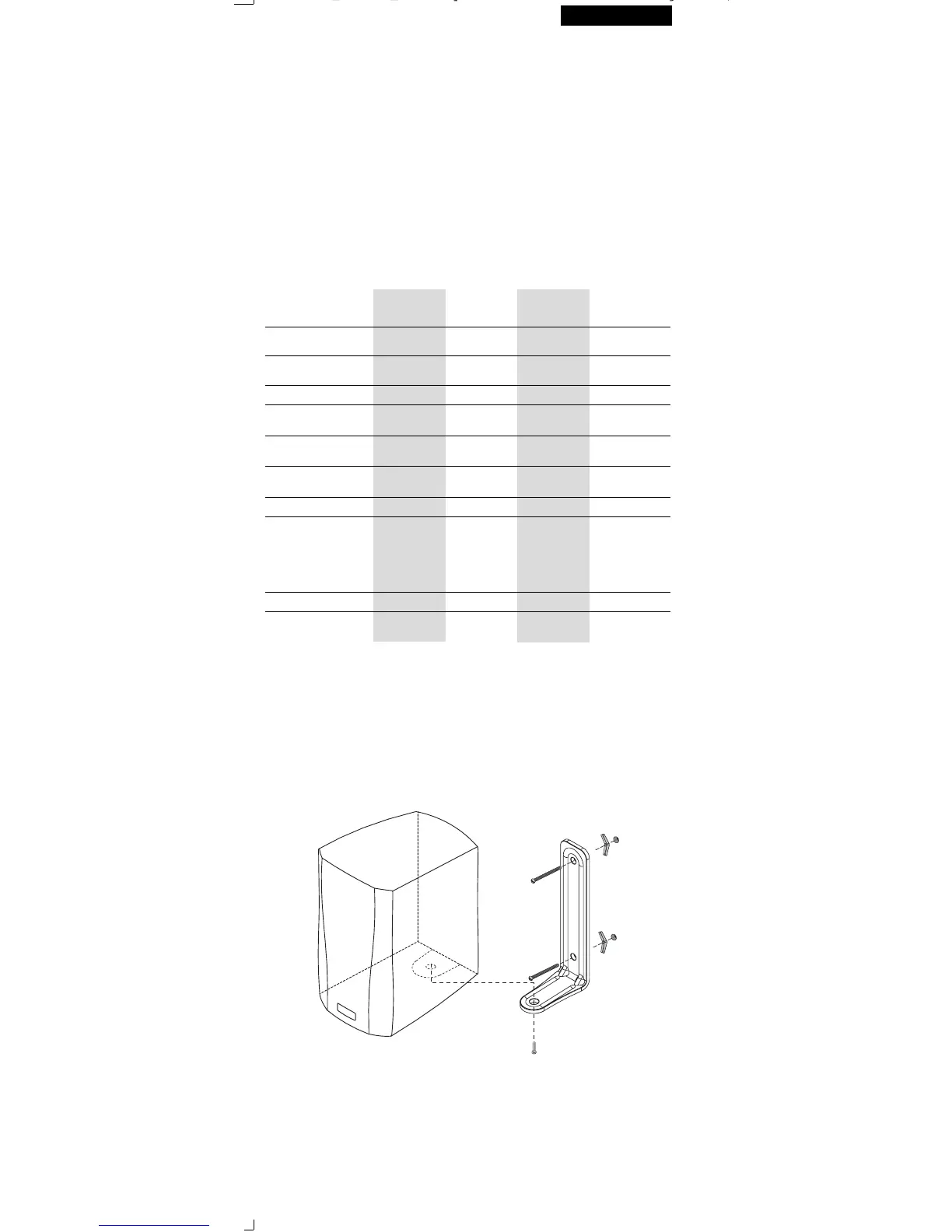

Wall-Mounting the Micro Satellite Speakers
The Micro satellite speakers may be wall-mounted using the included wall-mount bracket.
• Install the two mounting screws with wing nuts on the wall using the wall-mount bracket as
a template for the holes. Be sure that the wall will hold the weight of the speaker, if unsure
please consult a knowledgeable installer.
• Attach the wall-mount bracket to the bottom of the speaker with the machine screw as
shown.
The MicroCenter and Micro110c can be wall-mounted with the optional UMB1 (see below).
Note: An optional mounting bracket (Model UMB1), available for the
Micro110x, Micro120x, Micro130x, Micro110c, and MicroCenter, allows hor-
izontal and vertical mounting on either wall or ceiling. For more information,
contact your dealer or Boston Acoustics directly.
How to Wire Your Speakers
It is important that you wire your speakers correctly to obtain the best sound qual-
ity and the proper stereo image. Wiring should just take a few minutes, but it’s
important to do it carefully, since incorrect wiring (such as reversed connections)
can result in a poor soundstage or poor bass.
We recommend using 18-gauge (1.0 mm) or larger speaker wire for runs up to 25
Wall-Mount Bracket
