21
english

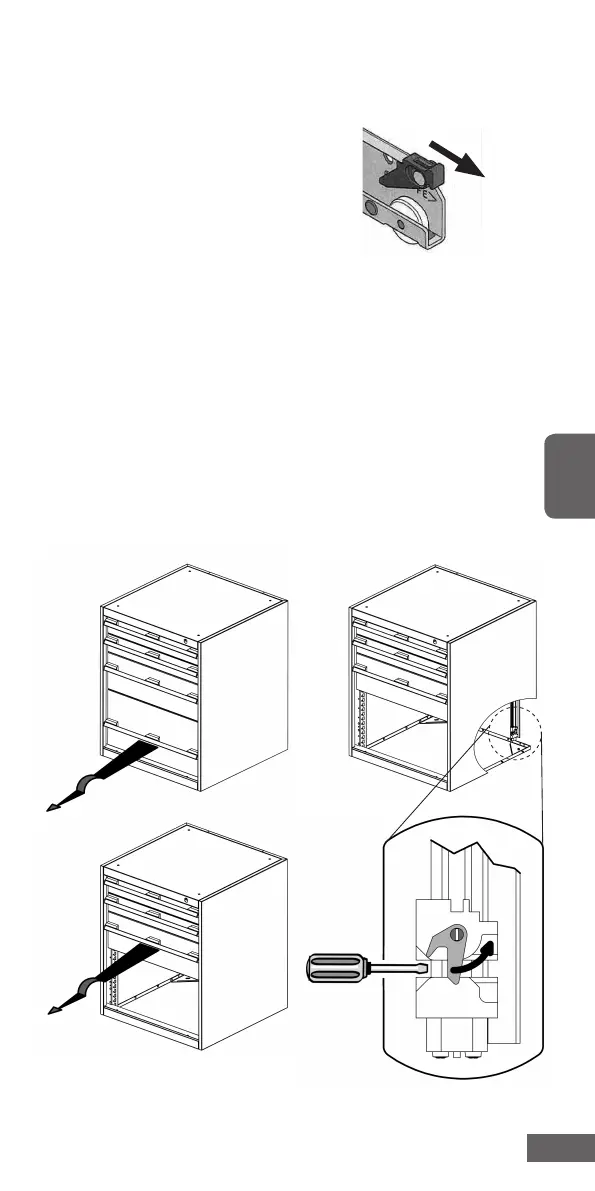

5. Removal of drawers from cabinet housing
Extend the drawer to the stop
and release the locking clip on
the right and left extension rails
(see sketch on right).
Lift the drawer front slightly and remove.
Using a screwdriver, press the turnbuckle of the lock
element back until the top part of the lock element
clips down (see sketch below).
Remove further drawers and repeat the process.
Install in reverse order. The locking elements need no longer
be activated manually.
