Battery Series And Parallel Considerations
1. First make sure that each battery is fully charged.
2. When using, it is best to ensure that each battery is of the same
brand and specification. If you need to use different batteries for
connection, please contact us ( service@bougerv.com) in advance,
and our technical team will confirm whether different batteries can be
connected together.
3. After connecting the batteries in parallel, you need to wait at least 6
hours before charging and discharging the batteries.

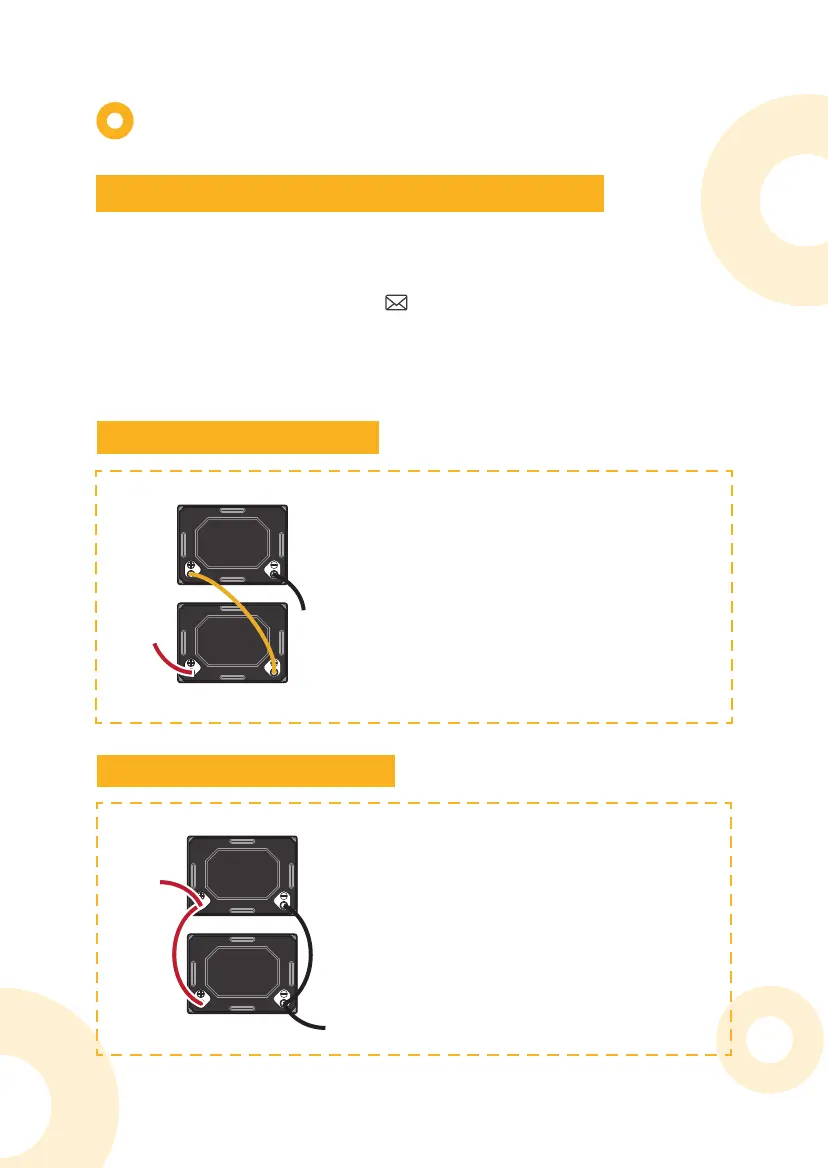

Battery Pack System Connection
Battery Pack In Series
1. After the series connection is
completed, the battery pack
system becomes 24V/ 100Ah, and
the series circuit can connect up to
4 batteries in series to reach a
system voltage of 48V.
Battery Pack In Parallel
1. After the parallel connection is
completed, the battery pack system
becomes 12V/ 200Ah, and the
parallel circuit can connect up to 4
batteries in parallel to reach a
system current of 400Ah.
Load (+)
Load (-)
12V/100Ah
12V/100Ah
12V/100Ah
12V/100Ah
Load (+)
Load (-)
