7. Functional Units 7.
The condensate recovered from the 2
nd
fraction of the distillation runs to the water separator. In the
water separator, water that may still be left and other low-boiling solvents are separated from the
cleaning solvent. The heavy water collects at the bottom, where there is a water-sensitive sensor,
which controls the draining of the process water. The solvent runs to the clean tank.

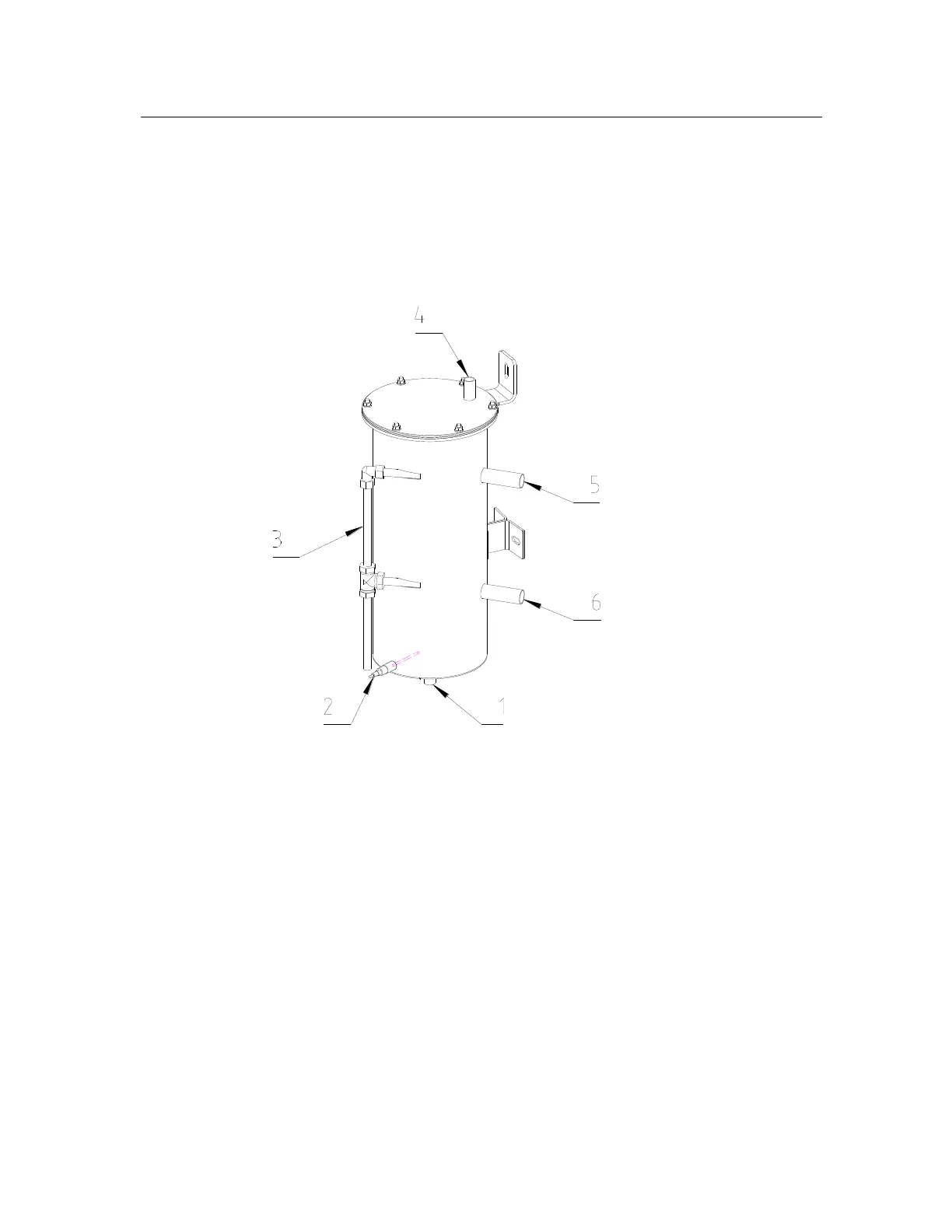

707763-02-0
1 For draining water/emptying tank
4 Ventilation and aeration atmospheres
2 Water-sensitive level sensor
5 Solvent overflow to clean tank
3 Connection, rinsing with pump
