7. Functional Units 7.
The distillation systems consists of the still with ascending pipe, condenser, water separator, flash tank,
extraction tank, operating material tank, operating material cooler and vacuum pump. The still is
equipped with an overfill preventer. The still and the sight-glass are rinsed each time the still is filled. You
can turn the distillation heater on and off with 13E. A thermal sensor at the bottom turns off the heating
when a selected value has been exceeded. Distillation takes place at an underpressure of approximately
900 mbar (13 psi). Besides you can stop the destillation by pressing the button „0“ (about 2 sec.)
707763-06-0

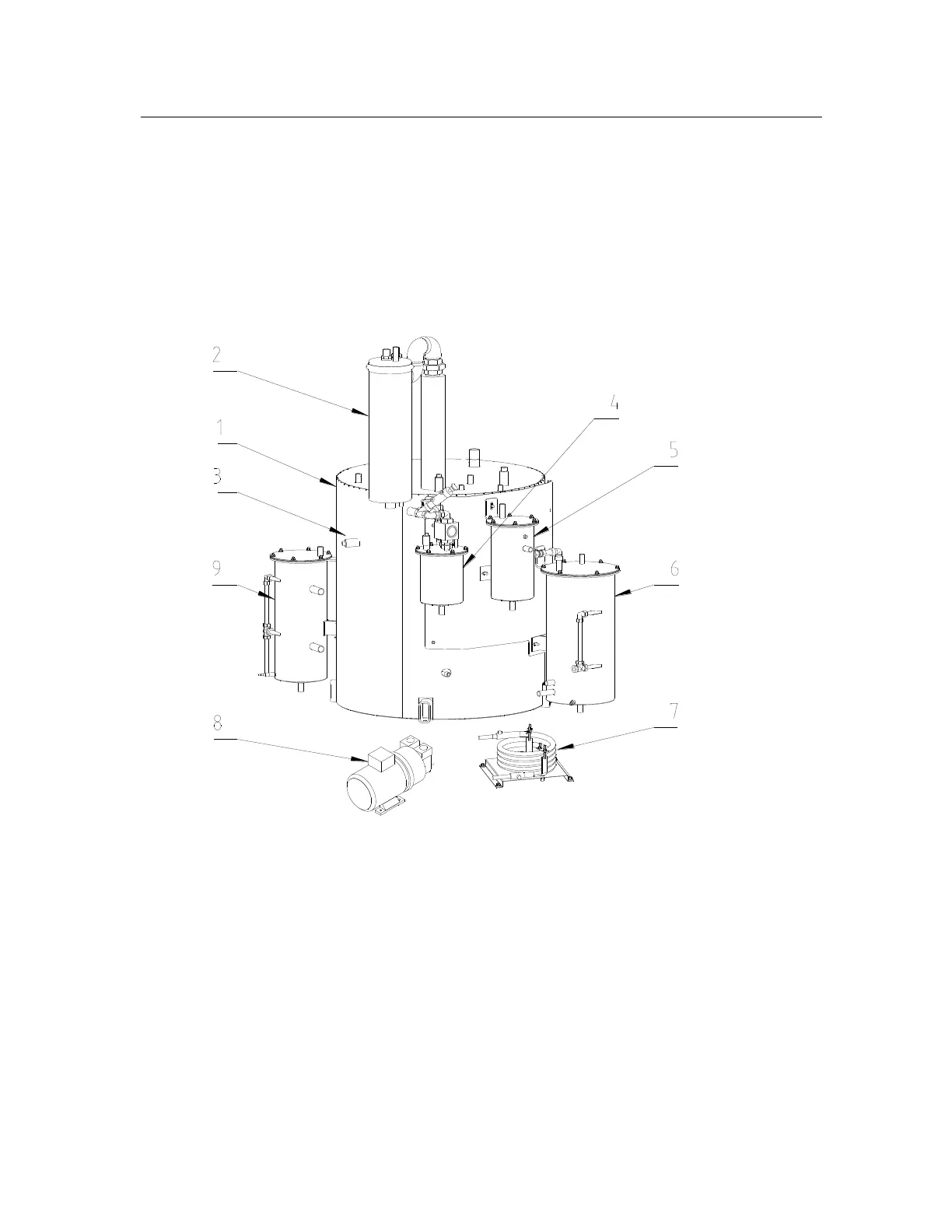

1 Still with ascending pipe
2 Condenser (stainless steel)
7 Operating material cooler
5 Operating material tank
