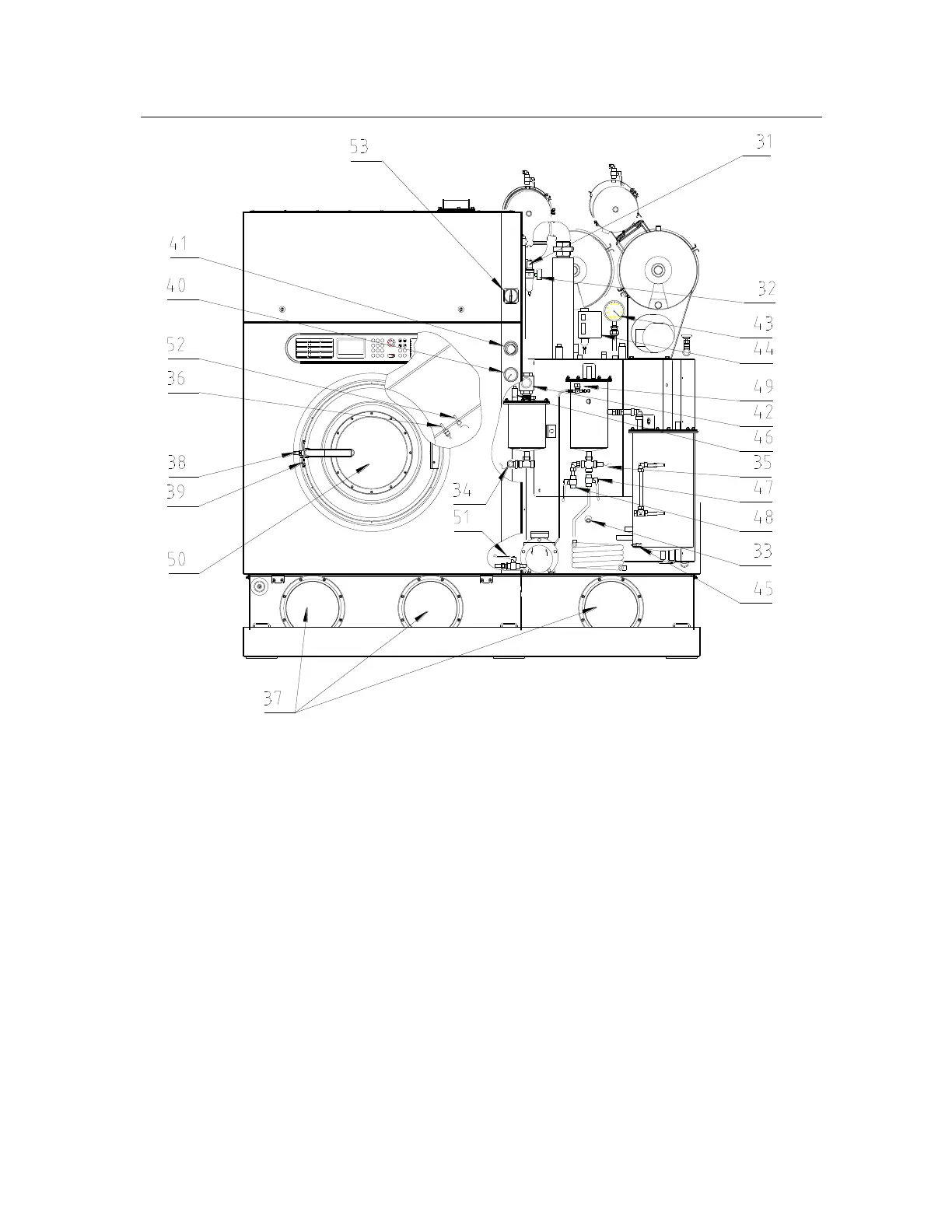

10. Operating and Monitoring Systems 10.
707763-08-0
31
Low air pressure switch
42
Sight-glass, distillation
32
Pressure gauge, compressed air
43
Vacuum pressure gauge
33
Thermal sensor, distillation
44
Vacuum control switch, distillation
34
Thermal sensor, distillation condenser
45
Water-sensitive level sensor
35
Operating material thermal sensor,
vacuum pump
46
Overfill sensor, level sensor, flash tank
36
Thermal sensor, cage housing inlet
47
Stopcock, operating material
48
For emptying operating material tank
37
Sight-glasses, tanks 1 + 2 + 3
49
Aeration for vacuum pump
38
Limit switch, loading door
50
Loading door window
39
Limit switch, loading door locking
51
Outflow, vacuum pump
40
Filter pressure gauge, Economy filter 1
52
Safety temperature limiter, cage air inlet
41
Sight-glass, filter circuit
53
Main switch
