6.TotesttheDriveBelttension:
• PushtheDriveBeltdownwardatthemidpoint(M)betweenthe
pulleys and measure the distance. The Drive Belt should have only
0.25”(0.64cm)ofgive.
Or:
• HoldtheedgesoftheDriveBeltatthemidpoint(M)andtwistit.The
DriveBeltshouldturnonly90degrees(1/4turn,tovertical).
If the tension is correct, go to Step 10.
If the tension is too loose or too tight, adjust the nuts and bolt on the
TensionerAssembly(IdlerAssembly).
7. To adjust the Tensioner Nuts on the Tensioner Bracket, use a 10mm
open end wrench to hold the Tensioner Bolt steady and turn the nuts with
a second 10mm open end wrench.
8. When the tension is correct, tighten the nuts against the Tensioner
Bracket to hold the bolt and the Tensioner Assembly in position.
Note: This step may require two people.
9. Carefully turn the Right Crank Arm and check the movement of the
Drive Belt. The Crank Arms and Flywheel should move as one.
!
Be sure to keep ngers clear of all pinch hazards when you
turn the Right Crank Arm.
Adjust the belt tension again if necessary.

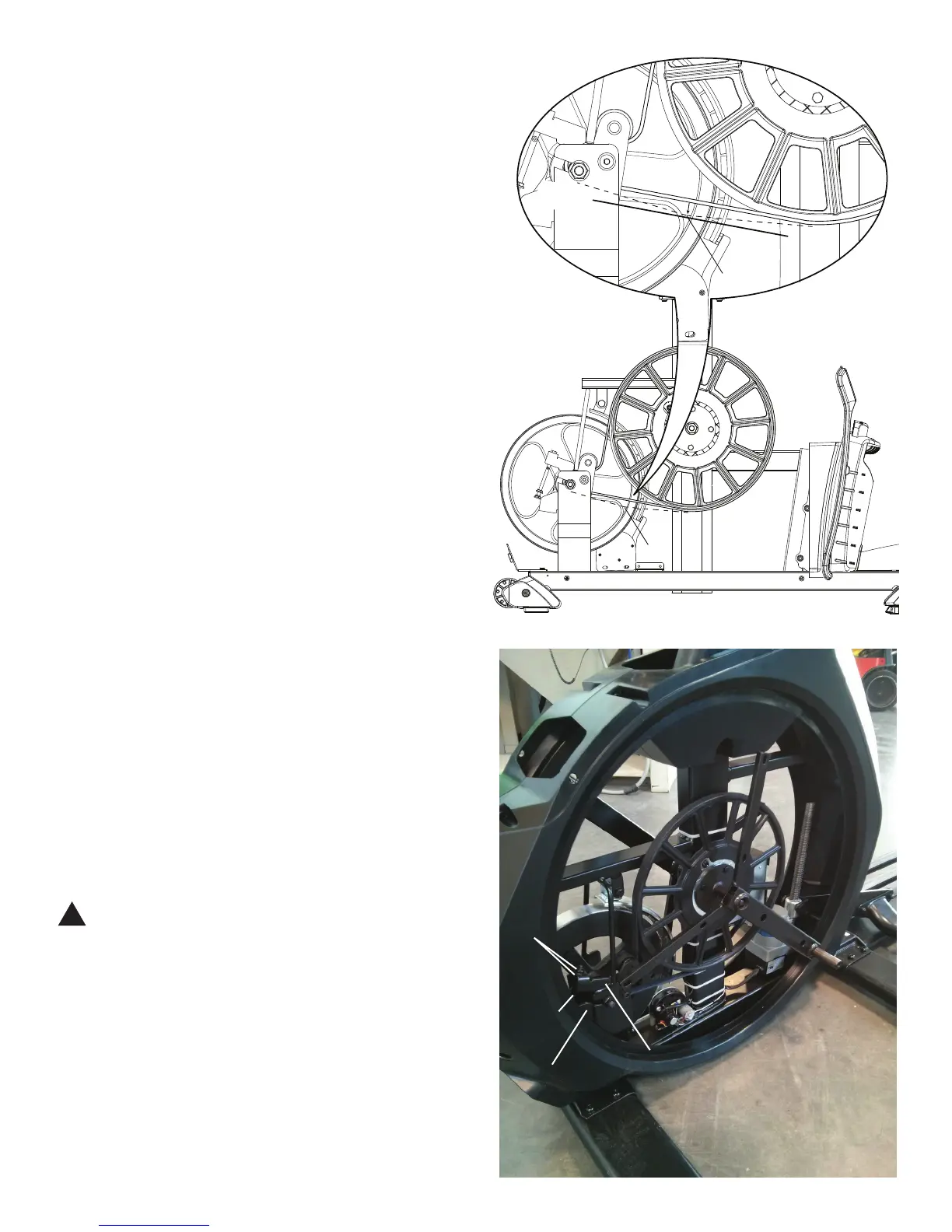

M
M
0.25”
0.64 cm
}
Tensioner Assembly
Tensioner Bracket
Tensioner
Nuts
Tensioner
Bolt
