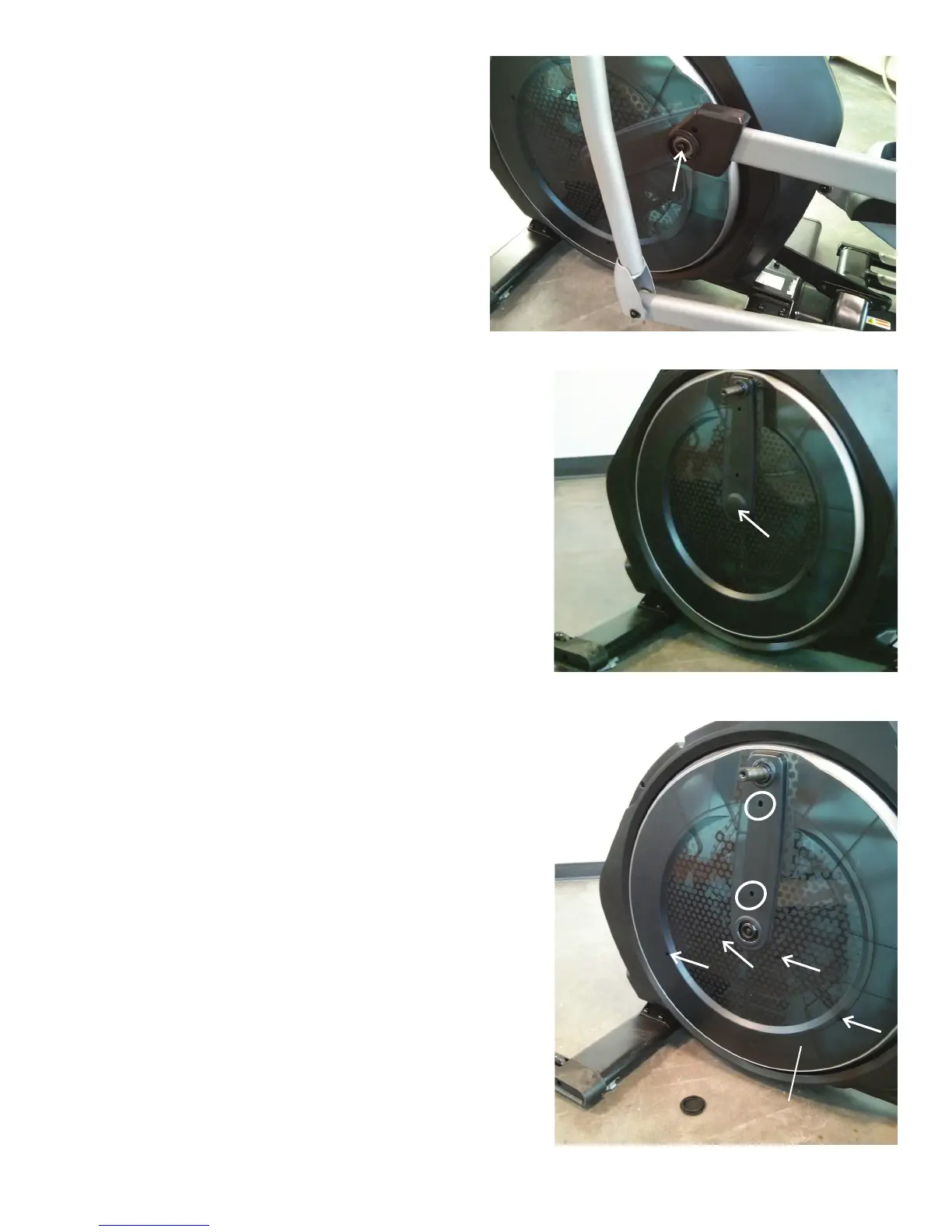

5.Usinga6mmhexwrench,loosenandremovetheindicatedhardware
from the Crank Arm and Leg, and set it safely aside for reassembly.
Remove the Leg and Pedal together and set them safely aside for reas-
sembly.
NOT ICE: This step may require two people.
6. Using a small standard screwdriver, gently pry the Cap off of the center
of the Crank Cover.
7.Usinga#2Phillipsscrewdriver,removethe6indicatedscrews(ovals
andarrows)fromtheCrankCover.
NOTICE: To assist with re-assembly, observe that the white arrows
are the longer screws.
8. Repeat steps 3-7 on the other side of the machine.
Crank Cover
