47
NOTICE: ThisdocumentprovidesinstructionsforthereplacementoftheCrankArmontheBowex
®
BXE116 / BXE216 Ellipticals.
If you need assistance, please call Bowflex Customer Service at 1-800-605-3369.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the
wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power cord in a secure
location.

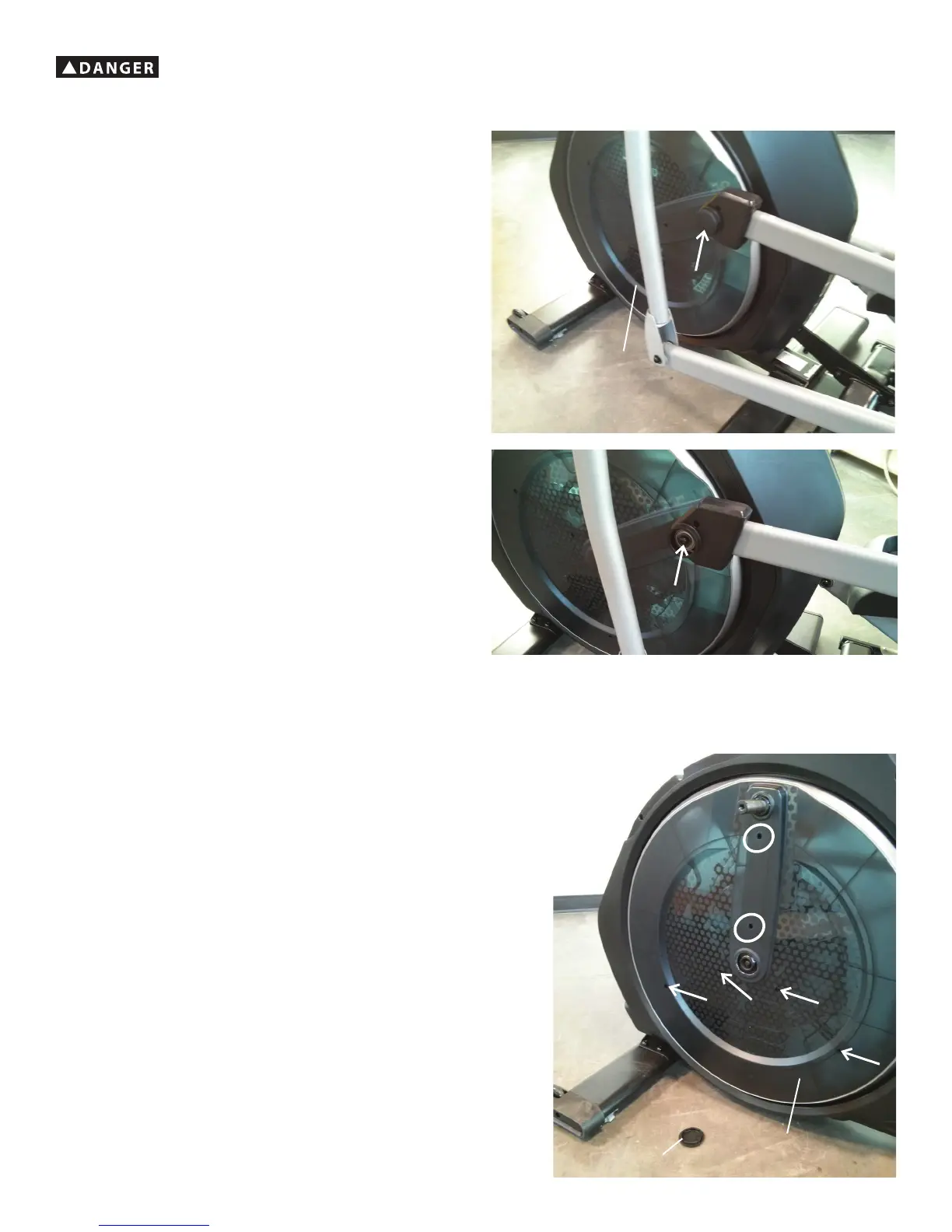

1.UsingaStandardscrewdriver,removetheindicatedCap(byarrow)
from the Frame Assembly.
2.Usinga6mmhexwrench,removetheindicatedhardwarefromthe
Crank Arm and Leg.
3. Remove the Leg from the Crank Arm.
4.Usingasmallstandardscrewdriver,gentlyprytheCapoffofthecenter
of the Crank Cover.
5.Usinga#2Phillipsscrewdriver,removethe6indicatedscrews(ovals
andarrows)fromtheCrankCover.
NOTICE: To assist with re-assembly, observe that the white arrows
are the longer screws.
Crank Cover
Crank Cover
Cap (removed from
center of Crank Cover)
