Bowflex BXE116 - Page 55

55

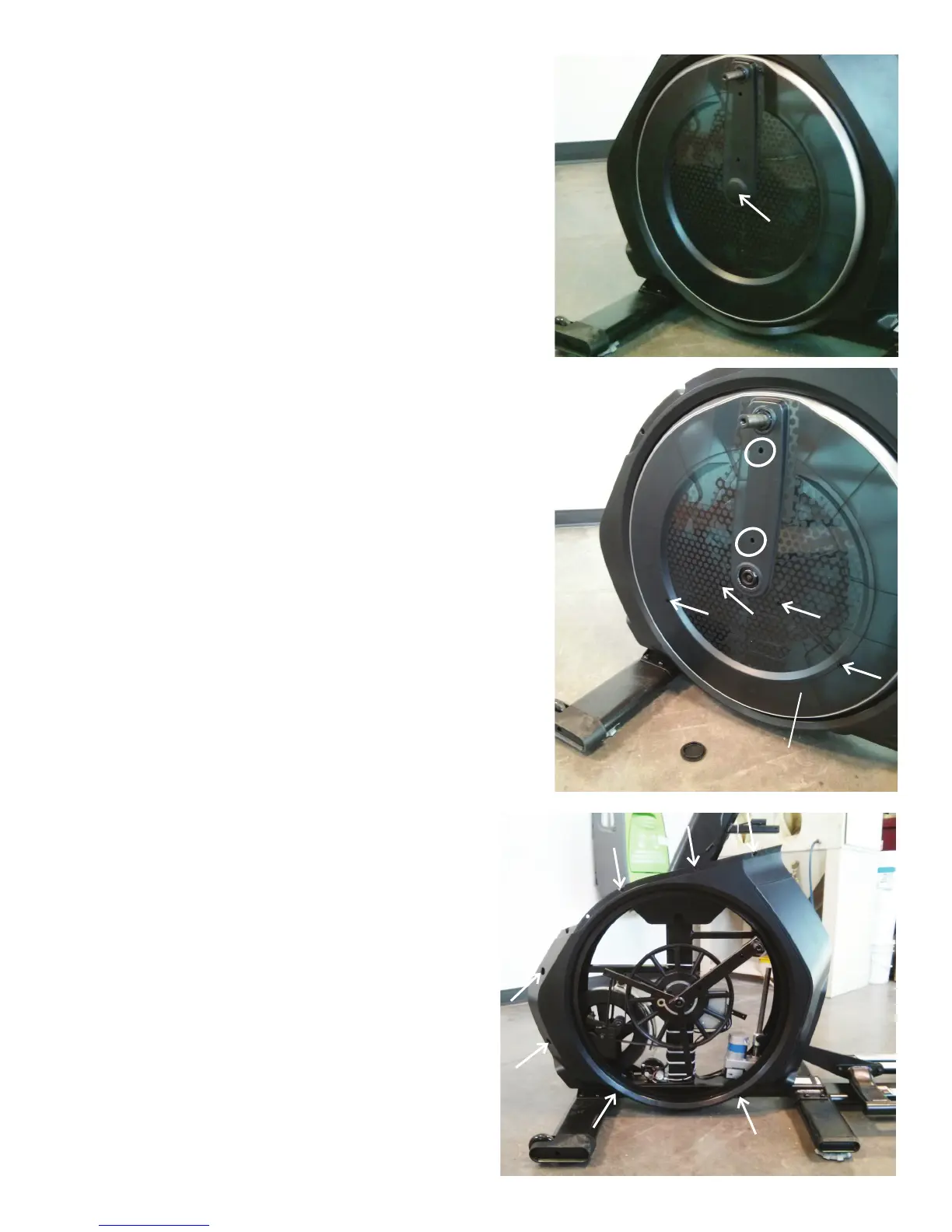

14.Usingasmallstandardscrewdriver,gentlyprytheindicatedCapoffof
the center of the Crank Cover.
15.Usinga#2Phillipsscrewdriver,removethe6indicatedscrews(ovals
andarrows)fromtheCrankCover.
NOTICE: To assist with re-assembly, observe that the white arrows
are the longer screws.
16.Repeatsteps14-15ontheothersideofthemachine.
17.Usinga#2Phillipsscrewdriver,removethe7indicatedscrews(with
arrows)thatsecuretheLeftShroud.Removethebottomscrewsrst,and
then the top screw. Slowly remove the Left Shroud.
Crank Cover
