NOTICE: ThisdocumentprovidesinstructionsforthereplacementoftheInclineAdjusterAssemblyontheBowex
®
BXE116 / BXE216 Ellipticals.
If you need assistance, please call Bowflex Customer Service at 1-800-605-3369.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the
wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power cord in a secure
location.

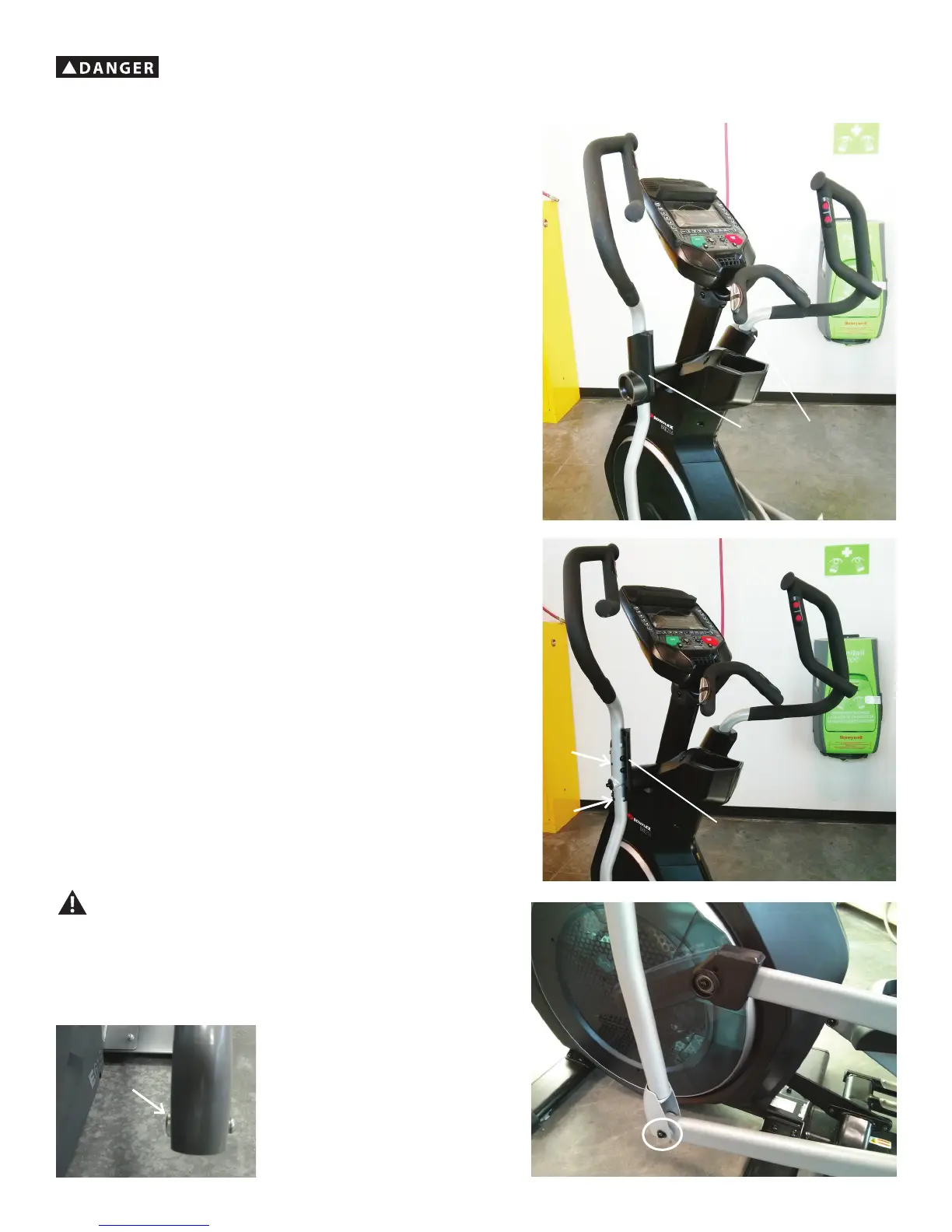

1.UsingaStandardscrewdrivertogentlypry,unsnaptheExteriorPivot
Covers. Place them safely aside.
Note: This procedure shows the removal and replacement of the Left
Upper and Lower Handlebar Arm. To remove the Right Handlebar, adjust
the procedure accordingly.
2.Usinga#2Phillipsscrewdriver,removethetwoscrewsthatsecurethe
Interior Pivot Cover to the Handlebar Arm.
3.Usinga6mmhexwrench,removetheindicatedhardwarefromthe
Lower Handlebar Arm and Pedal.
Be aware that the Handlebar Arm will be loose and will pivot
when the hardware is removed. Safely allow the Handlebar
Arm to pivot downward and come to rest. Be sure not to be in
the path of the Handlebar Arm.
Note: To assist with reassembly, observe how the Pivot Sleeve engages
ushwiththeLowerHandlebarArm.
Exterior Pivot Cover
Interior Pivot Cover
