14.Usingasmallstandardscrewdriver,gentlyprytheCapoffofthe
center of the Crank Cover.
15.Usinga#2Phillipsscrewdriver,removethe6indicatedscrews(ovals
andarrows)fromtheCrankCover.
NOTICE: To assist with re-assembly, observe that the white arrows
are the longer screws.
16.Repeatsteps14-15ontheothersideofthemachine.
17.Usingthe15mmopenendwrenchand6mmhexwrench,removethe
indicatedbolts(withanoval)thatattachtheInclineAdjusterbrackettothe
Lift Motor Assembly. This will allow the Incline Adjuster Assembly to pivot.

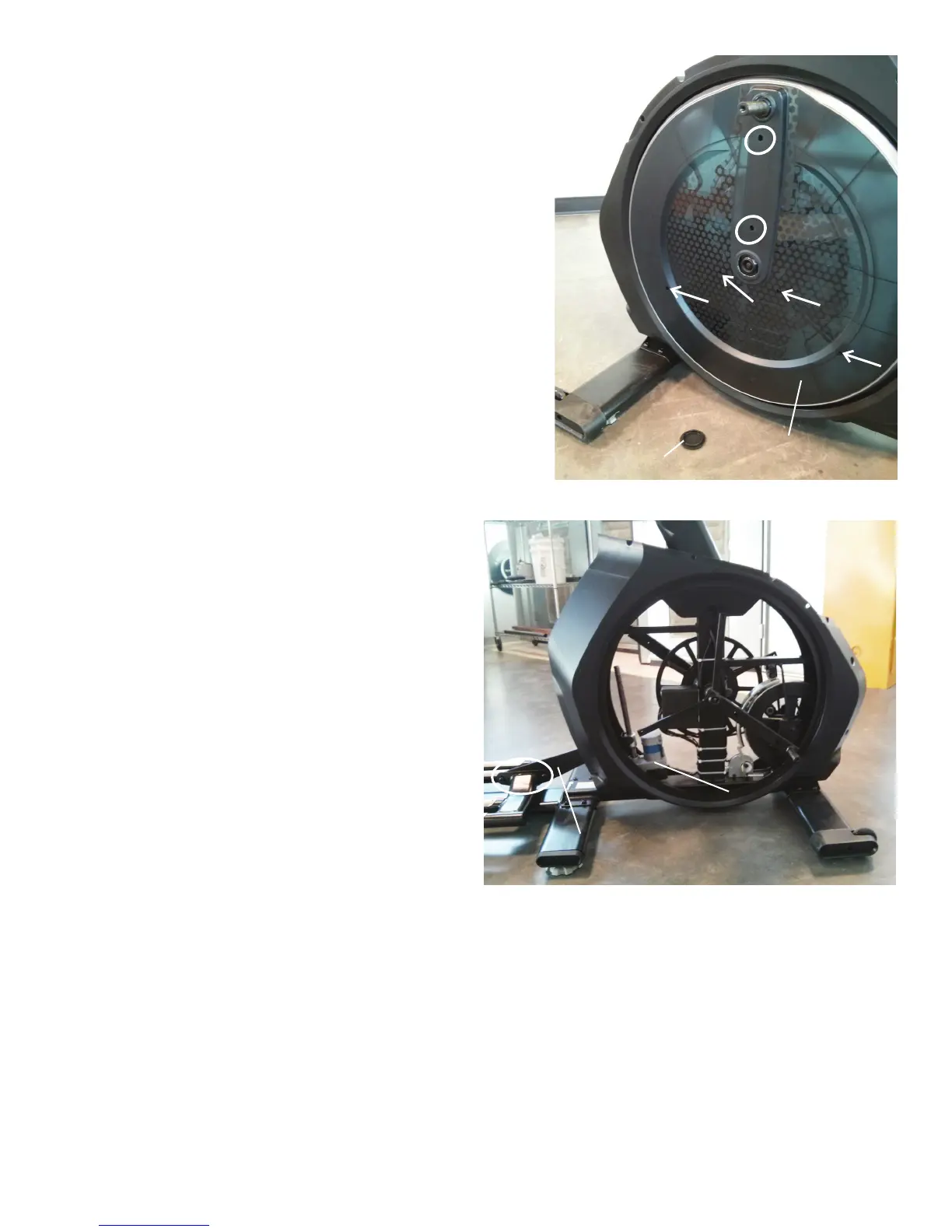

Crank Cover
Cap (removed from
center of Crank Cover)
Incline Adjuster Assembly
Lift Motor Assembly
