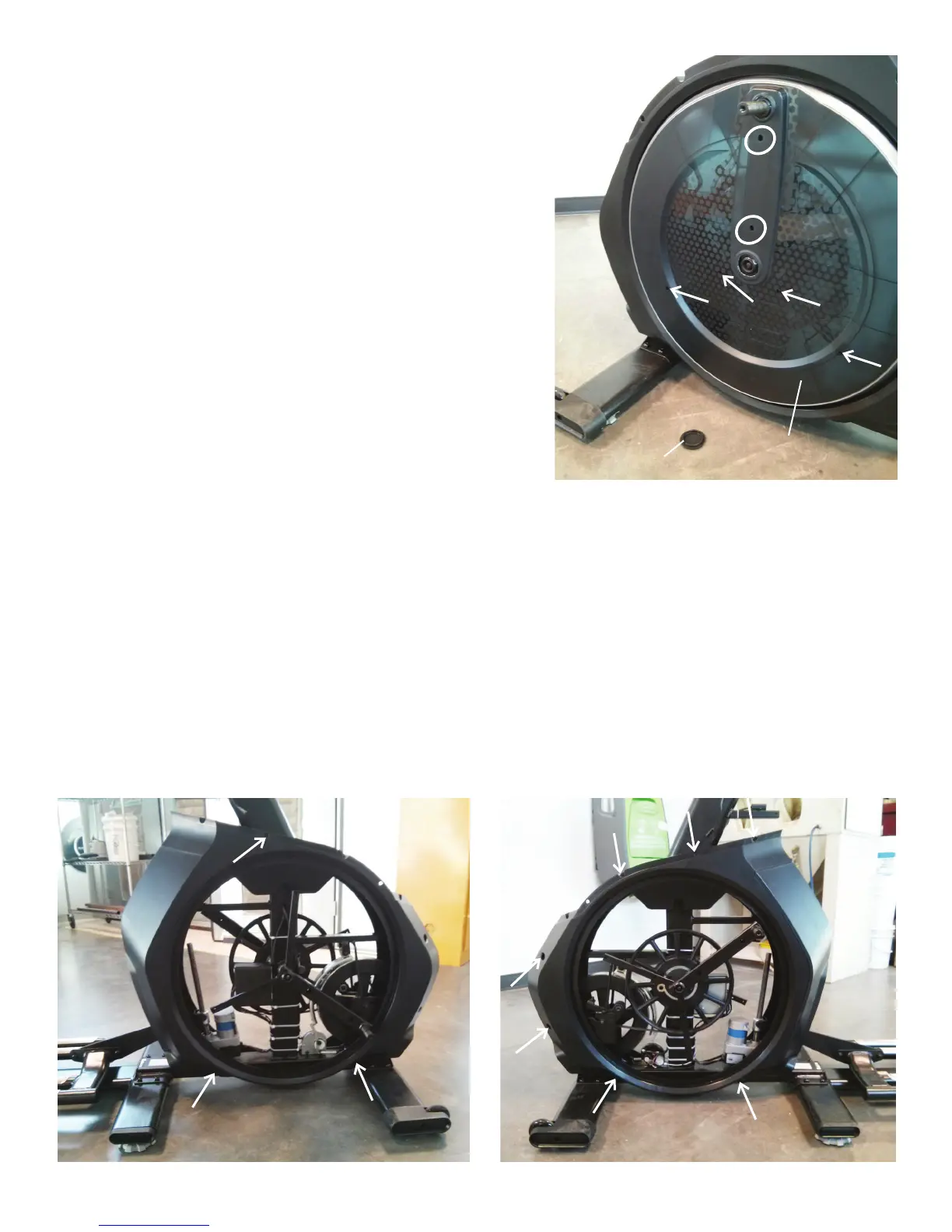

14.Usingasmallstandardscrewdriver,gentlyprytheCapoffofthe
center of the Crank Cover.
15.Usinga#2Phillipsscrewdriver,removethe6indicatedscrews(ovals
andarrows)fromtheCrankCover.
NOTICE: To assist with re-assembly, observe that the white arrows
are the longer screws.
16.Repeatsteps14-15ontheothersideofthemachine.
17.Usinga#2Phillipsscrewdriver,removethe7indicatedscrews(with
arrows)thatsecuretheLeftShroud.Removethebottomscrewsrst,and
then the top screw. Slowly remove the Left Shroud.
18.Usinga#2Phillipsscrewdriver,removethe3indicatedscrews(with
arrows)thatsecuretheRightShroud.Removethebottomscrewsrst,
and then the top screw. Slowly remove the Right Shroud.
Crank Cover
Cap (removed from
center of Crank Cover)
