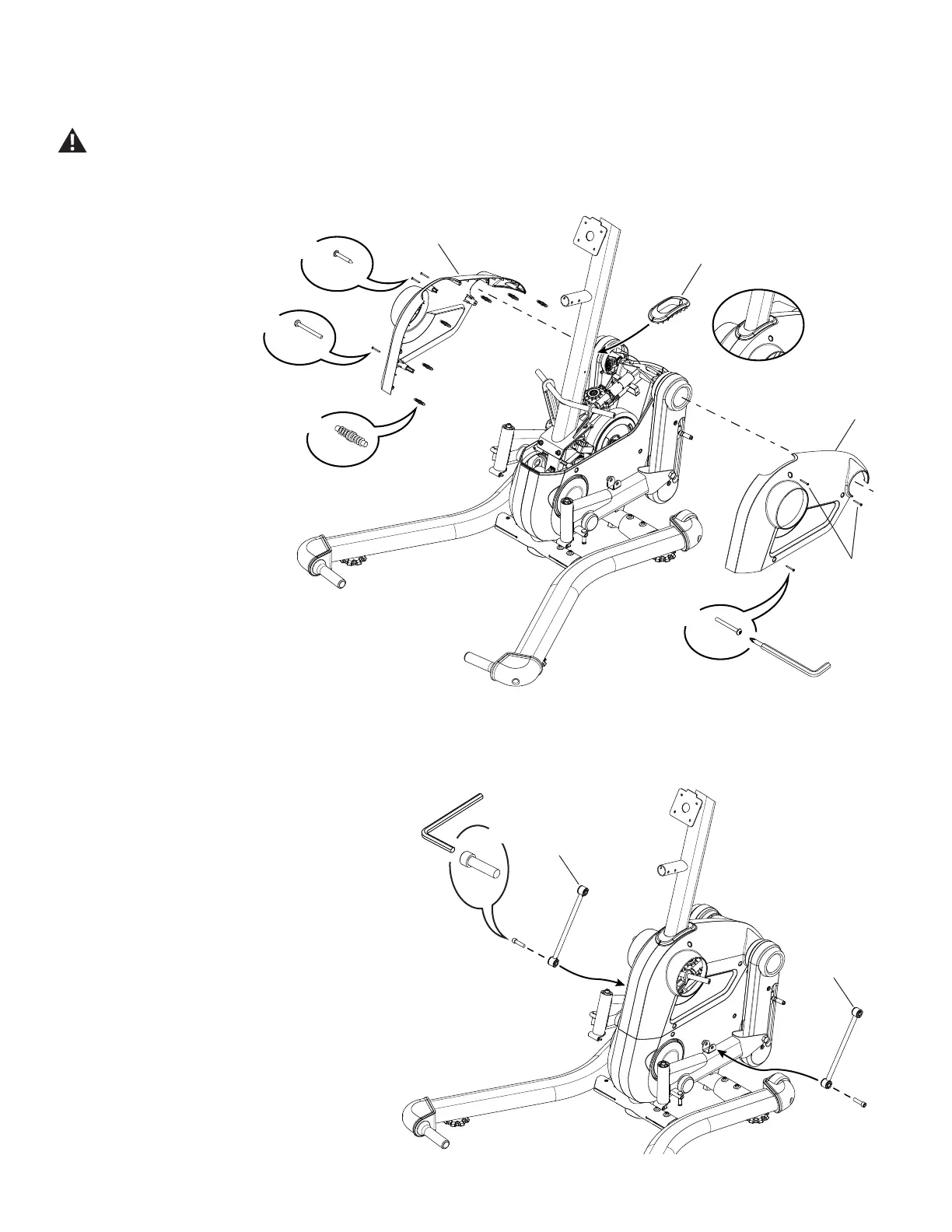

3. Attach the Shrouds and Mast Gasket to Frame Assembly
Insert the Push Fasteners (F) in the mount holes in the Left Shroud. Put the Left Shroud in position. Align the Right Shroud with
the Push Fasteners and move the Right Shroud into position. Push the Shrouds together so that the Push Fasteners are fully
seated. Install the Shrouds to the Frame Assembly with the screws (R, S).
NOTICE: Do not crimp the Cables.
4. Attach Handlebar Links to Crank Arms
Note: Finger tighten the screws at this time.
6
7
8
R
F
X6
X1
R
X1
S
X2
S
#2
9
9
H
X2
10mm
