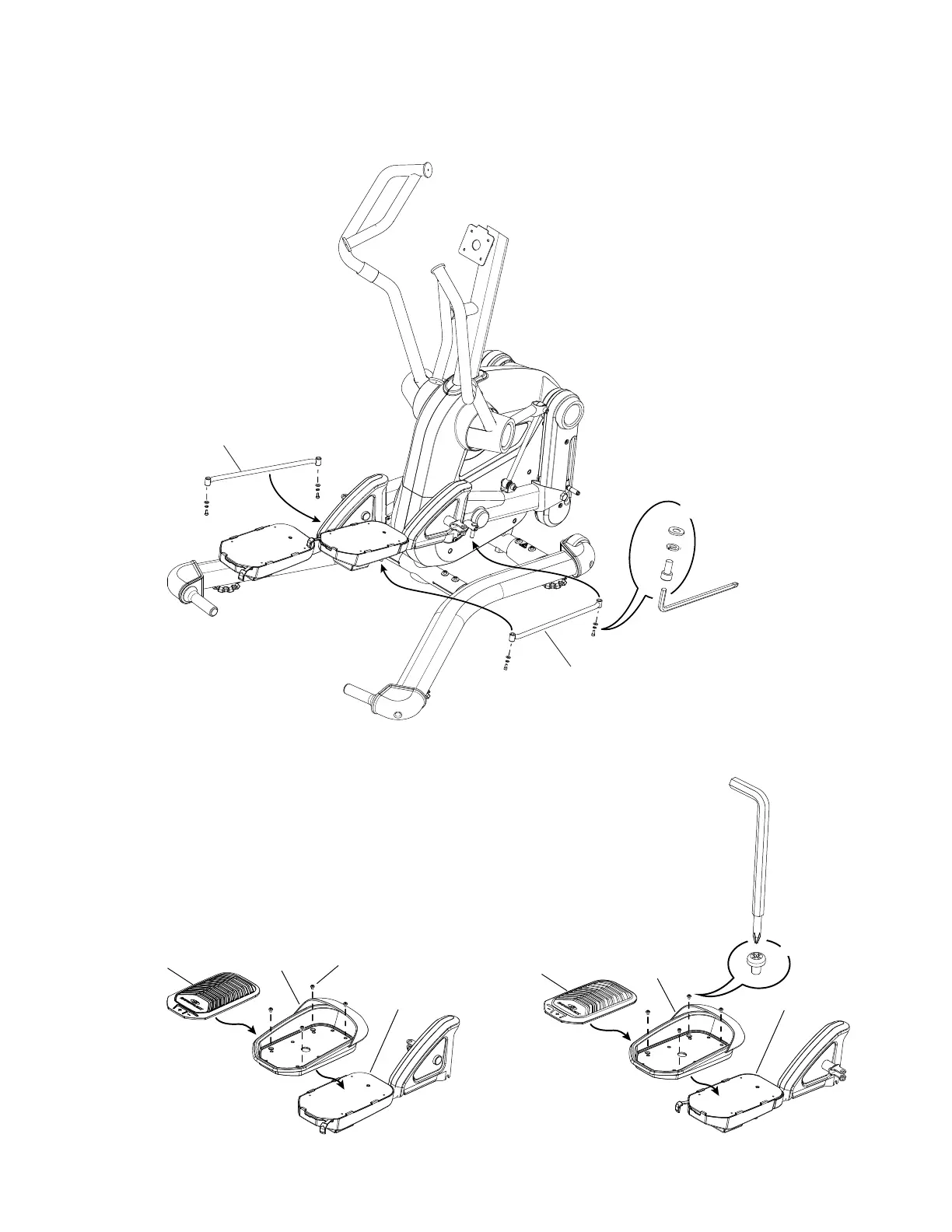

7. Attach the Parallel Links to Pedal Arms and Crank Arms
Note:$WWDFK3DUDOOHO/LQNWRERWWRPRI3HGDODQGWKHVLGHEUDFNHWRQWKH&UDQN$UP)XOO\WLJKWHQWKHKDUGZDUH
19
19
C
O
E
X4
6mm
8. Attach the Pedal Shrouds and Footpads to Pedal Arms
Note: Fully tighten the hardware.
K
23 22
18
K
21
17
20
X8
