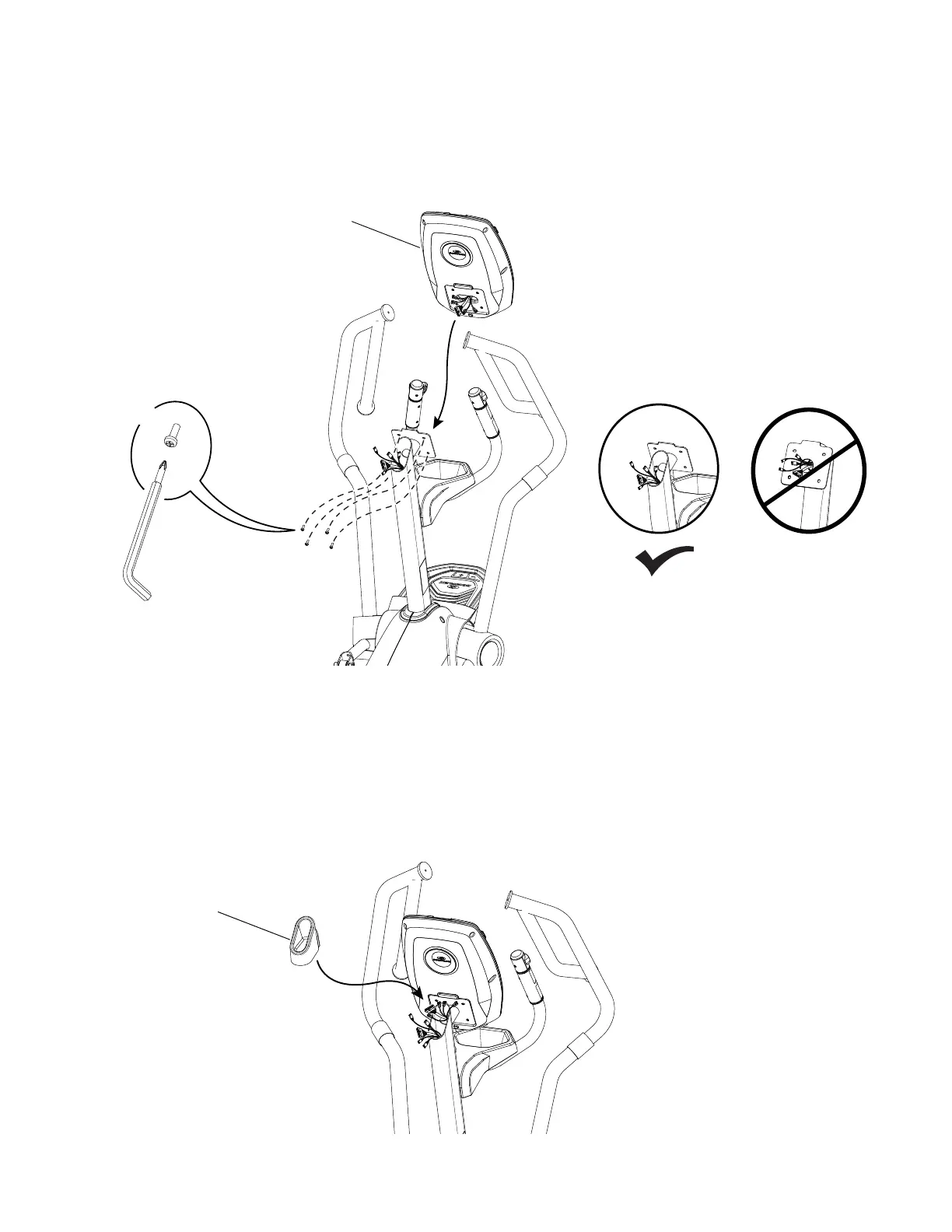

12. Route Console Cables through Mounting Plate and Attach the Console
NOTICE: Do not crimp the Cables. If the Mast Cables are routed through the Mounting Plate on the Console Mast, pull them back through
the opening. Make sure the Mast Cable connectors do not fall into the Console Mast.
27
X4
13. Connect the Console Cables to Mast Cables and Attach the Mast End Cap
NOTICE:'RQRWFULPSWKH&DEOHV0DNHVXUHWRFRQQHFWDOOFDEOHV(DFKFRQQHFWRUHQGFDQRQO\EHFRQQQHFWHGWRWKHPDWFKLQJ
connector. Push the excess cable length down into the Console Mast.
