Bowflex MAX Trainer M9 - Page 17

Assembly / Owner’s Manual
17

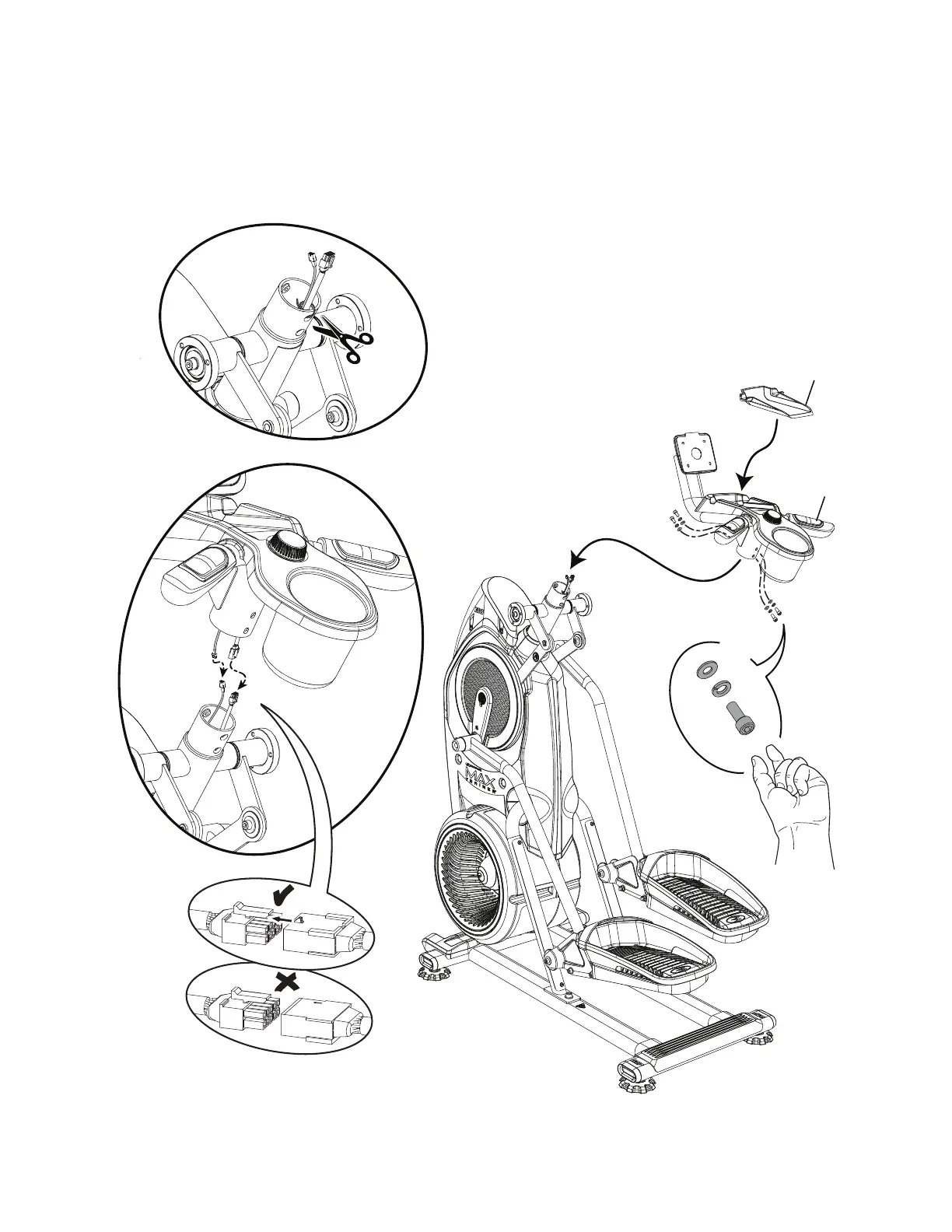

9. Cut the Shipping Zip-Tie that Secures the Cables, Connect the Cables, and Attach the Static Handlebar
Assembly and Tray Insert
NOTICE: Do not let the Cables drop into the Frame Assembly. Do not cut or crimp the Console Cables. Be sure to fully connect the cable
connectors. Onceallhardwarehasbeenhandtightened,fullytightenthehardwarewiththe5mmhexwrench.
X4
O
N
M
10
20
