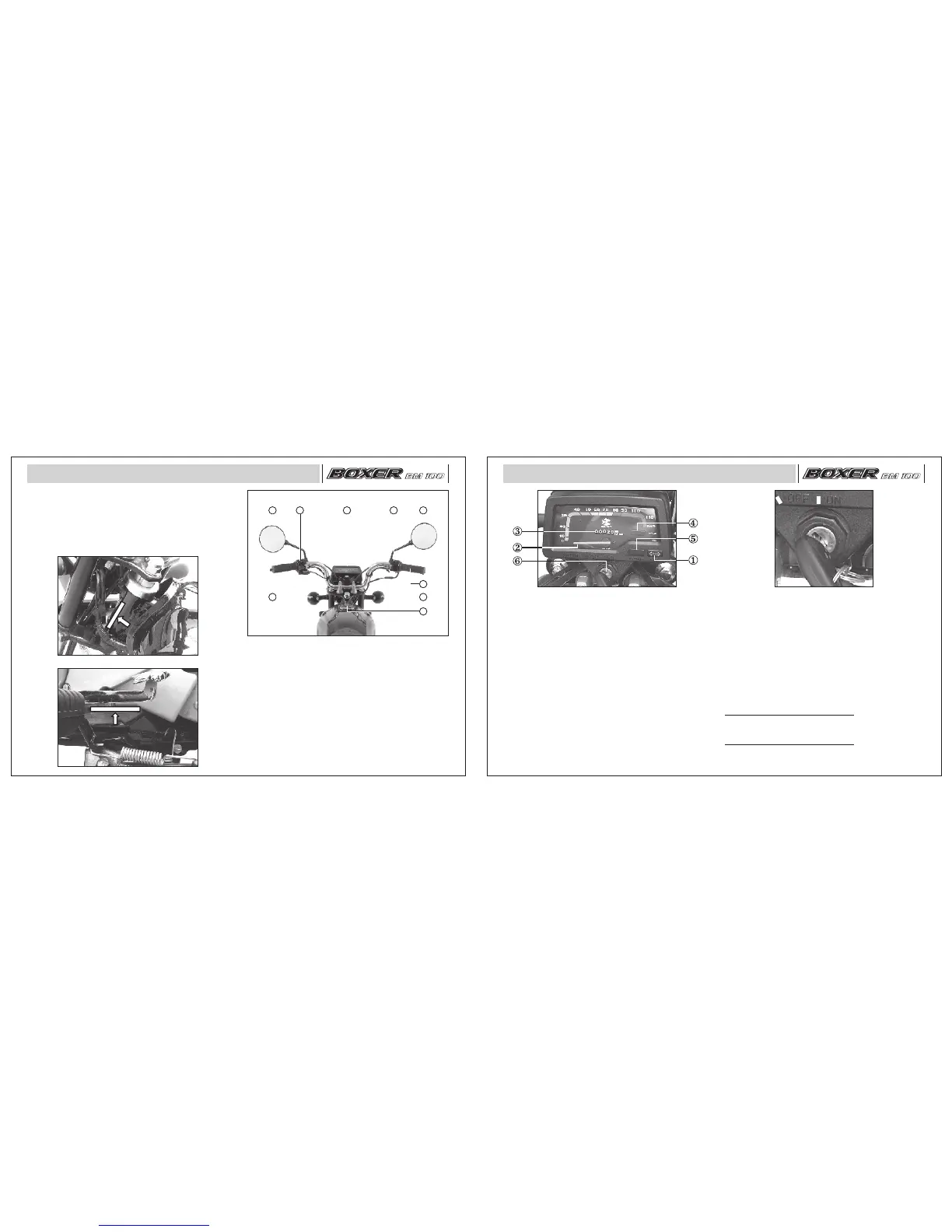

Location of Parts
1. Mirror - LH/RH
2. Control Switch LH
3. Speedo Console
4. Control Switch RH
5. Throttle Grip
6. Indicators LH/RH
7. Fuel Tank Cap
1
2
3
4
1
6 6
7
5
The Frame and Engine serial numbers are
used to register the motorcycle. They are
the unique alpha-numeric codes to identify
your particular vehicle from others of the
same model and type.
Engine Number
Frame Number
Location of Parts
1. Turn Signal Indicator (LH & RH) : When
turn signal switch is turned to Left or Right,
Turn pilot indicator will flash with engine
running.
2. Speedometer : The Speedometer pointer
shows the speed of vehicle.
3. Odometer : The Odometer shows the total
distance that the vehicle has accumulated.
4. Hi beam Indicator : When Headlight is
‘ON’ and Hi beam is selected with engine
running, Hi beam indicator will be lit.
N
5. Neutral Indicator :
When the transmission is in Neutral and
Ignition switch ‘ON’, with engine running
the Neutral indicator is lit.
6. Ignition Switch : Key operated switch
for Ignition ‘ON’/‘OFF’.
OFF : Ignition OFF.
ON : Ignition ON.
Ignition ON & OFF :
OFF ON
