6
5

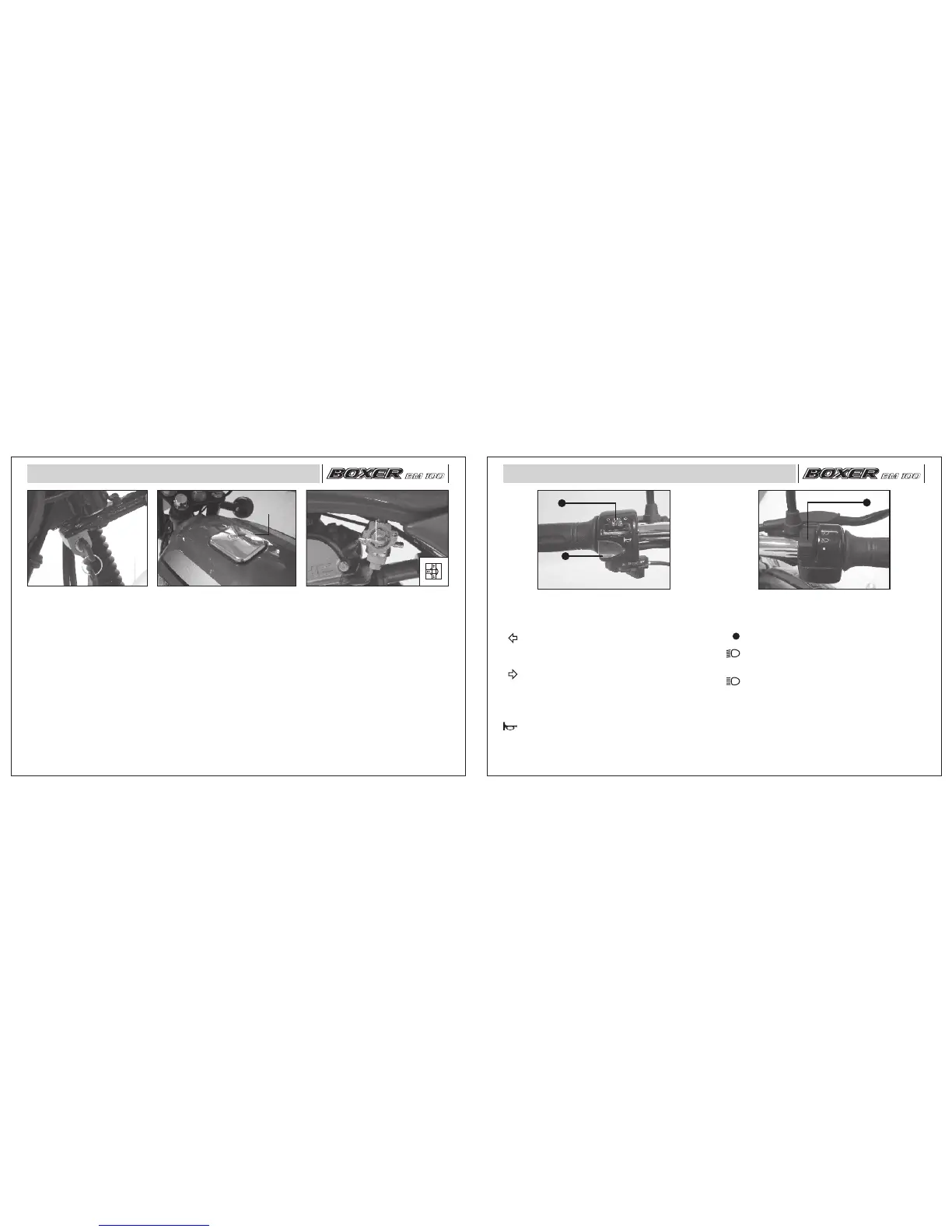

Location of Parts
Steering Lock ON & OFF :
To Lock the Steering : To lock the steering,
turn the handle bar to the left. Turn the key to
“LOCK” position and remove the key.
To Lock the Steering : To lock the steering,
insert the key in steering lock & turn it
anticlockwise to “ON”.
To Unlock the Steering : To unlock the
steering, insert the key in steering lock & turn
it clockwise to “OFF”.
Key : A common key is used for Steering
lock, Ignition lock, Fuel tank cap and Side
cover lock.
Fuel Tank Cap
• To open the fuel tank cap, insert the key
in the lock and turn it clockwise and lift
fuel tank cap.
• ‘Fuel Tank Cap’ is locked when pushed
back into the place.
Fuel Tap
Fuel tap lever has following positions.
ON : When fuel level is above Reserve
position.
RES : When fuel level is below Reserve
position.
OFF : When fuel supply is to be cut off.
Fuel Tank
Cap
Fuel Tap
OFF
ON
RES
Location of Parts
A. Turn Signal Switch :
: When the turn signal switch is turned to
Left the Left side Front and Rear turn
signal flash ‘ON’ and ‘OFF’.
: When the turn signal switch is turned to
Right the Right side Front and Rear
turn signal flash ‘ON’ and ‘OFF’.
B. Horn Button :
: Press horn button for sounding horn.
A. Head Light Switch : It has 3 positions.
: All lamps 'OFF'.
: With engine running, Low beam, Tail
lamp and Meter lamps ‘ON’.
: With engine running, High beam, Tail
lamp and Meter lamps ‘ON’.
A
Right Handle Bar Switches
B
A
Left Handle Bar Switches
