BOXER BM 100 - Page 5

87

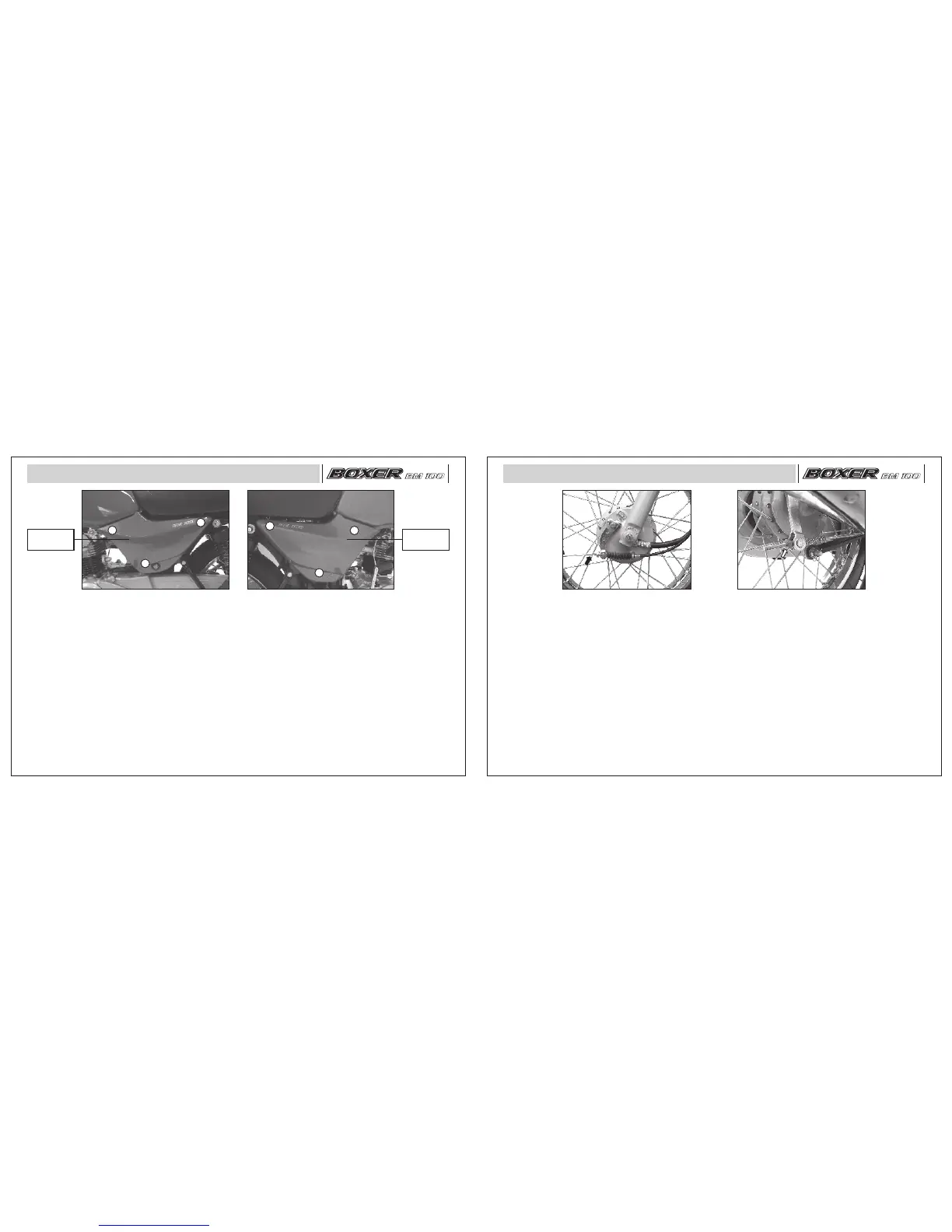

Location of Parts
SIDE
COVER LH
A
B
C
SIDE
COVER RH
D
B
A
Removal Of Side Cover LH and RH
• Insert the key into cover lock (C) & turn
the key clockwise & pull ‘Side cover’ LH
out from bottom.
• Pull ‘Side cover’ from (A) to release Lug
provided on ‘Side cove r’ from hole
provided on ‘Frame’.
• Slide the ‘Side Cover’ forward (towards the
engine) from location (B) to release slot
provided on front side of ‘Side cover’ from
bracket with rubber cap provided on ‘Fuel
Tank’. Take out ‘Side cover’.
• Similarly ‘Side cover’ RH can be removed
after removing screw (D).
Caution : Remove cover as described
above, otherwise the lugs may break.
Fitment Of Side Cover LH and RH
• Match slot (B) provided on front side of
‘Side Cover’ with bracket provided on
‘Fuel Tank’ and slide ‘Side cover’
backward (towards Tail lamp).
• Match Lug (A) provided on rear side of
‘Side cover’ with hole provided on
‘Frame’ and press ‘Side cover’ inside.
• Match the lock plate of ‘Side cover’
properly with bracket on ‘Chassis’ and
Lock. (For ‘Side cover’ LH).
• For ‘Si d e cover’ RH adopt s a me
procedure and fit the screw (D) properly.
Caution : Fit cover as described above to
ensure proper fitment.
Location of Parts
FRONT
BRAKE
ADJUSTER
Front Brake Adjustment
For safe riding, the brakes must always be
maintained in perfect condition. Brake is
properly adjusted if
• The wheel rotates freely when the
control lever is in the resting position.
• The braking action starts after Front
brake lever is pressed by 2-3 mm.
These conditions are obtained by adjusting
the cables by means of adjuster shown in
the figure and minor play adjustments can
be done by adjuster provided near front
brake lever.
Rear Brake
Rear brake is properly adjusted if
• The wheel rotates freely when the brake
pedal is in the resting position.
• The braking action starts after Brake
pedal is pressed by 20-30 mm.
These conditions are obtained by adjusting
the cables by means of adjuster shown in
the figure.
Warning :
Brakes are items of personal safety and
hence must be maintained in perfect
condition.
Adjustment
REAR
BRAKE
ADJUSTER
