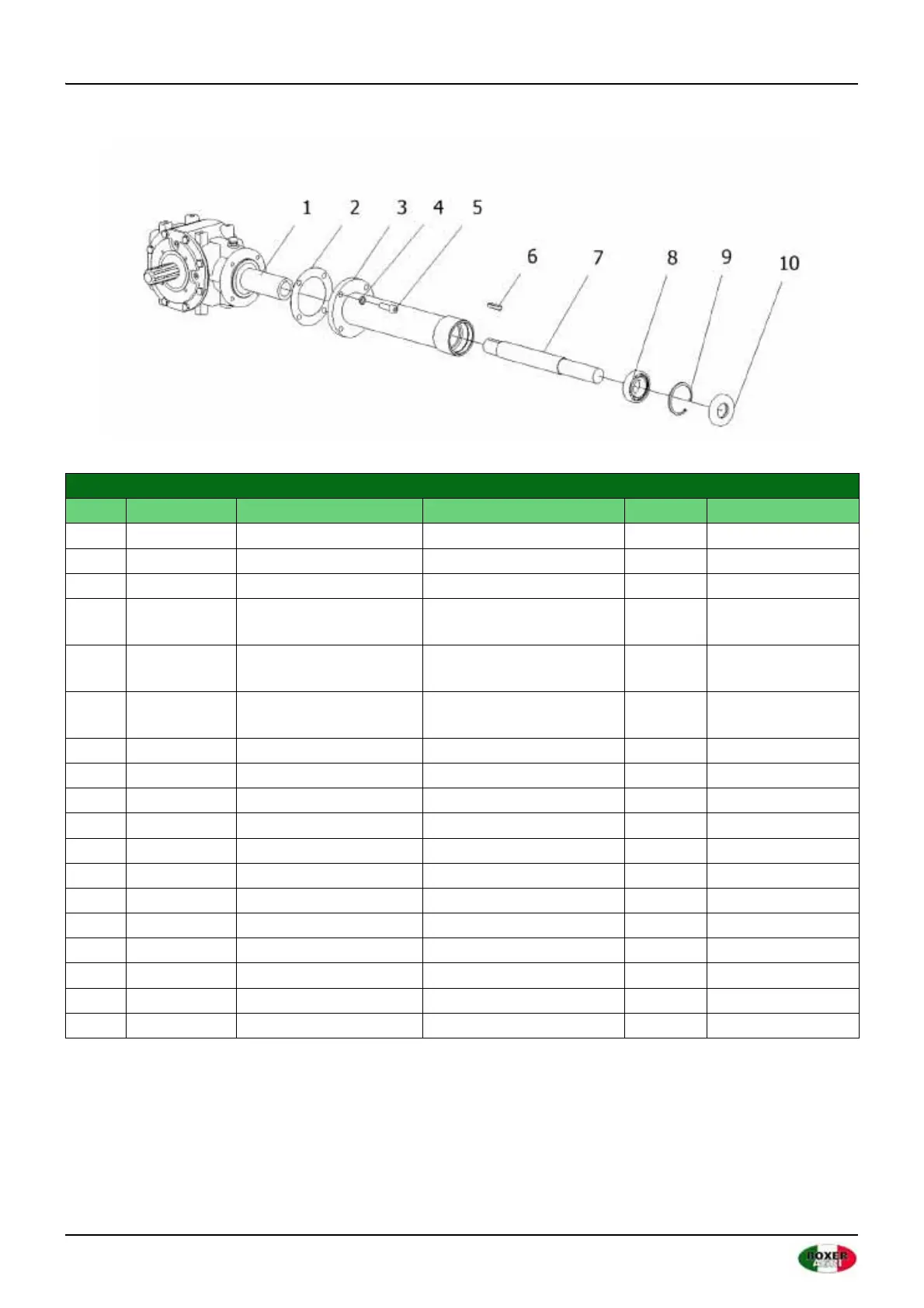

10.2 Transmission shaft
TRANSMISSION SHAFT
No. Article no. Part no. Name Quantity Remark
1 801240040 XH50.300Z.02W Transmission 1 EFGCHMZ105-175
1 (2) 801380003 XH50.300Z.02-200 Transmission 1 EFGCHMZ200-220
2 701240024 EFGC120.131 Washer 1
3 801220004 EFGC100.018A
Shaft cover
(EFGC100-110)
1 EFGCHMZ105-115
3 (1) 801240004 EFGC120.018A
Shaft cover
(EFGC120-170)
1 EFGCHMZ125-175
3 (2) 801600032 EFGCH200.026A
Shaft cover
(EFGCHZ/M/H-200)
1 EFGCHMZ200-220
4 506030037 GB93-12 Spring washer 4
5 505011445 GB70.1-M12x35 Screw M12x35 4
6 507010086 GB1096-A-10x8x40 Spring washer 1
7 701220003 EFGC100.133A Shaft (EFGC105-115) 1 EFGCHMZ105-115
7 (1) 701250003 EFGC130.133A Shaft (EFGC135-175) 1 EFGCHMZ125-175
7 (2) 701600034 EFGCH200.166B Shaft (EFGCHZ/M/H-200) 1 EFGCHMZ200-220
8 511021528 GB276-6207-2RS Grooved ball bearing 1 EFGCHMZ105-175
8 (1) 511021667 GB276-6208-2RS Grooved ball bearing 1 EFGCHMZ200-220
9 506060188 GB893.1-72 Circlip 1 EFGCHMZ105-175
9 (1) 506060191 GB893.1-80 Circlip 1 EFGCHMZ200-220
10 510020640 GB13871-FB-35X72X12 Sealing ring 1 EFGCHMZ105-175
10 (1) 510020405 GB13871-FB-40X80X10 Sealing ring 1 EFGCHMZ200-220
