10.3 Transmission

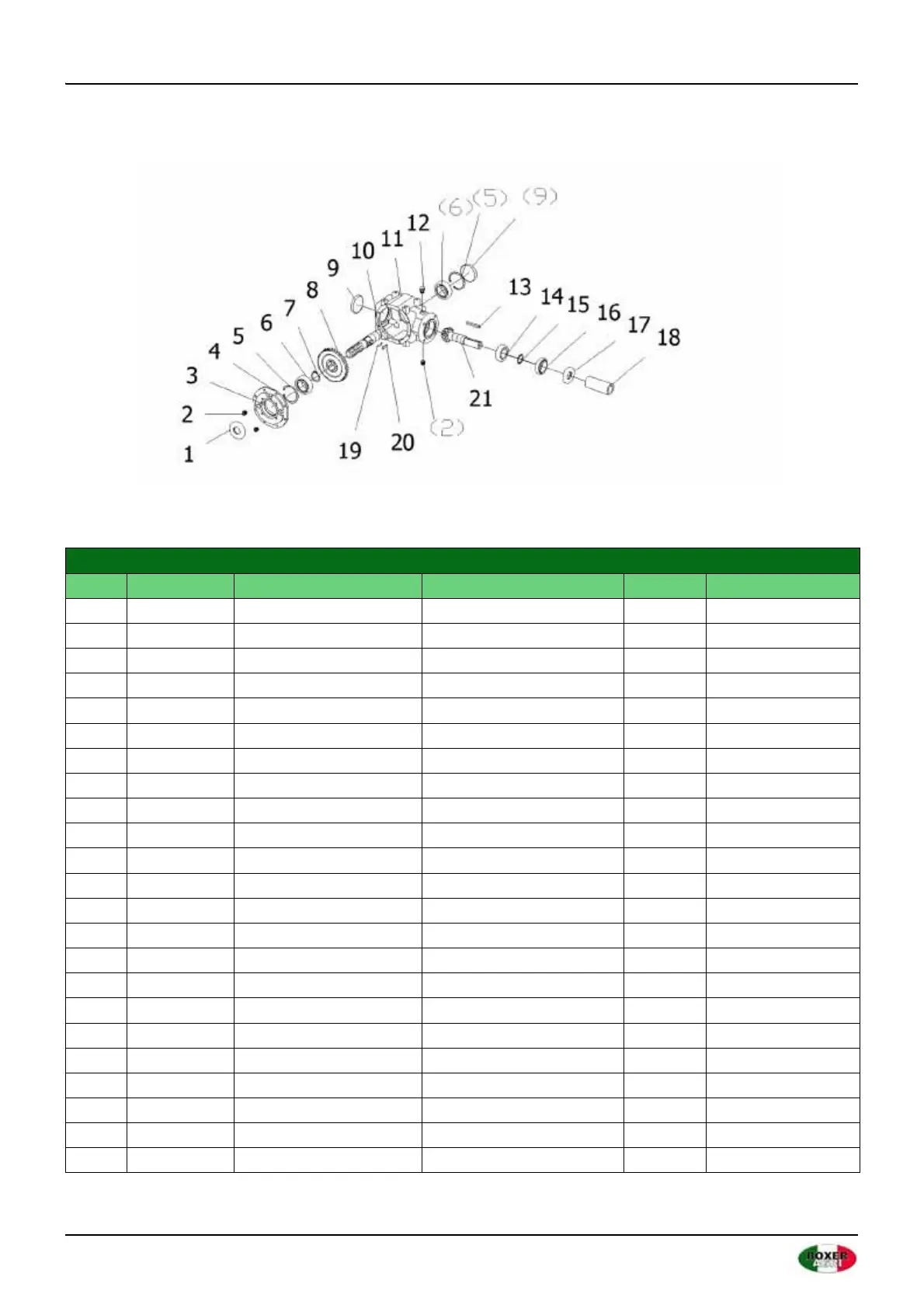

TRANSMISSION
No. Article no. Part no. Name Quantity Remark
1 510020638 GB13871-FB-35x80x10 FB sealing ring 1
2 516010003 ZBT32001.3-ZG3/8-19" Internal hexagon plug 3
3 501011112 GB5783-M10x25 Screw M10x25 8
4 702480003 AG14.01.C03 Cover 1
5 506060191 GB893.1-80 Circlip 2
6 511022654 GB276-6307 Grooved ball bearing 2
7 506060322 GB894.1-42 Circlip 1
8 702480005 AG14.01.C05 Gear wheel 1 EFGCHMZ105-175
8 (1) 702080002 AG14.01.C05-G2 Gear wheel 1 EFGCHMZ200-220
9 703340013 NFG-RCA-80X10 80X10 Cover 2
10 701240041 GC175.01.C04A Input shaft 1
11 702480003 AG14.01.C03 Cover 1
12 705290211 CBW-00-011B Plug 1
13 507010091 GB1096-A-10X8X70 Feather key 1
14 511016440 GB297-32207 Tapered roller bearing 1
15 506060515 JB4342-35 Circlip 1
16 511016411 GB297-30207 Tapered roller bearing 1
17 510020398 CFW-35X72X10 FB sealing ring 1
18 701240025 EFGC120.132 Sleeve 1
19 702480007 AG14.01.C07 Leaf spring 3
20 702480006 AG14.01.C06 Feather key 3
21 702480001 AG14.01.C01 Output shaft 1 EFGCHMZ105-175
21 (1) 702080001 AG14.01.C01-G2 Output shaft 1 EFGCHMZ200-220
