Model: S2614 & S2615 Chairs
Armrest Adjustment and Release
(All Models)
Armrest Positioning (both armrest styles):
1. Adjust armrest by squeezing the Armrest Release Knob (See Below) upward toward armrest pad.
2. This releases the armrest to move freely for positioning.
3. Releasing knob will lock armrest in set position.
Armrest Height/Rail Adjustment and Removal (Rail Mount):
1. Loosen the Armrest Height and Rail Adjustment Handle to unlock armrest position. (See Below)
2. The armrest can be raised or lowered and can be slid along the rail to position as desired or removed.
3. Retighten the handle to lock armrest for repositioning.
Armrest Removal (Compensating):
1. Depress and hold Armrest Assembly Removal Button. (See Below)
2. Lift armrest to disengage from Armrest Support.
3. Release Armrest Assembly Removal Button.
Armrest Support Removal (Compensating):
1. Pull down and hold Armrest Support Release Lever. (See Below)
2. Push Armrest Support in until it stops.
3. Rotate Armrest Support top toward rear side of chair until it stops.
4. Pull Armrest Support outward until it stops.
5. Rotate Armrest Support top toward front side of chair until it stops.
6. Pull Armrest Support outward until freed from chair.
7. Release Armrest Support Release Lever.
Reverse process to insert Armrest Supports.
Operang Instrucons (connued)

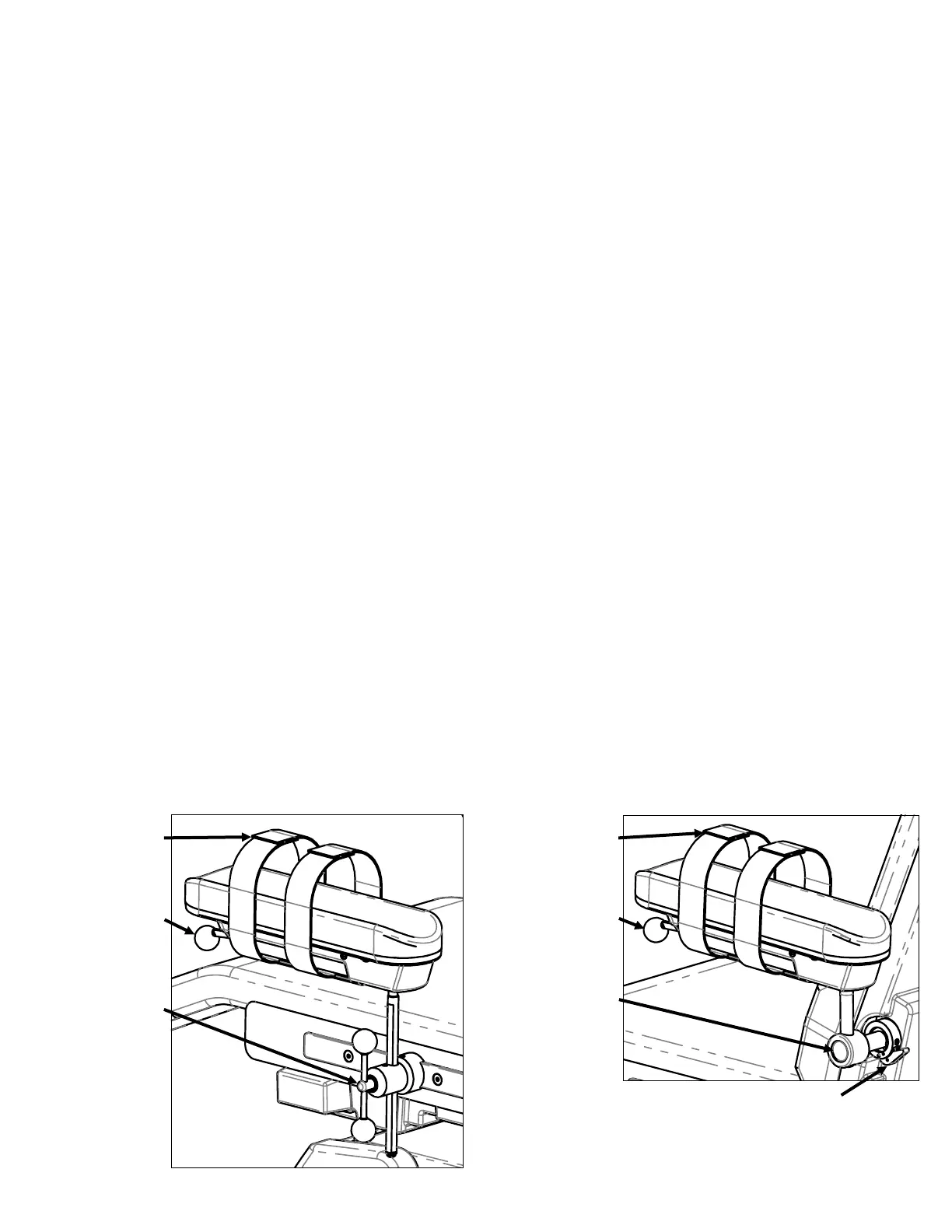

Adjustable
Arm straps
Armrest
Adjustment
Release Knob
Armrest Height &
Rail Adjustment
Handle
Rail Mount Arm
Adjustable
Arm straps
Armrest
Adjustment
Release Knob
Armrest Assembly
Removal Buon
Armrest Support
Release Lever
Compensang Arm
