Boyd S2614 - Upholstery Installation and Removal

17
SCHM-002
Rev 2
Installation: S2614 & S2615 Upholstery
S2614 / S2615 Back Upholstery – Place the Hangers located near the top of the Back Upholstery into the slots on the Back Frame
and slide upholstery downward until it stops on Hangers. Then, press the Bullets located near the bottom of the upholstery into
the Receiving Clips on the Back Frame. The Back Upholstery Flap attaches to the rear Velcro Strip before installing the Seat
Upholstery.
S2614 Toe Upholstery – Place the two upper ‘Z’ brackets under the upper cross member of the Toe Frame. Then, press the Bullets
located near bottom of the upholstery into the Receiving Clips on the bottom of the Toe Frame. The Toe Upholstery Flap attaches
the front Velcro Strip before installing the Seat Upholstery.
S2615 Seat Upholstery – Place the two ‘Z’ Brackets under the rear cross member of Seat Frame. Lower the upholstery so that the
Locking Angle engages tightly into slot at front of Seat Frame. The angle must be in the slot and not outside of the frame.
S2614 Seat Upholstery – Place the two Angle Brackets against the rear cross member of Seat Frame. Lower the upholstery so
that the Locking Angle engages tightly into slot at front of Seat Frame. The angle must be in the slot and not outside of the frame.
Note: Seat Upholstery Brackets can be adjusted as required to reduce any Seat Upholstery movement.
Caution: Move the Seat Upholstery back & forth and side to side to verify that it is securely fastened to the Seat Frame before
operating.

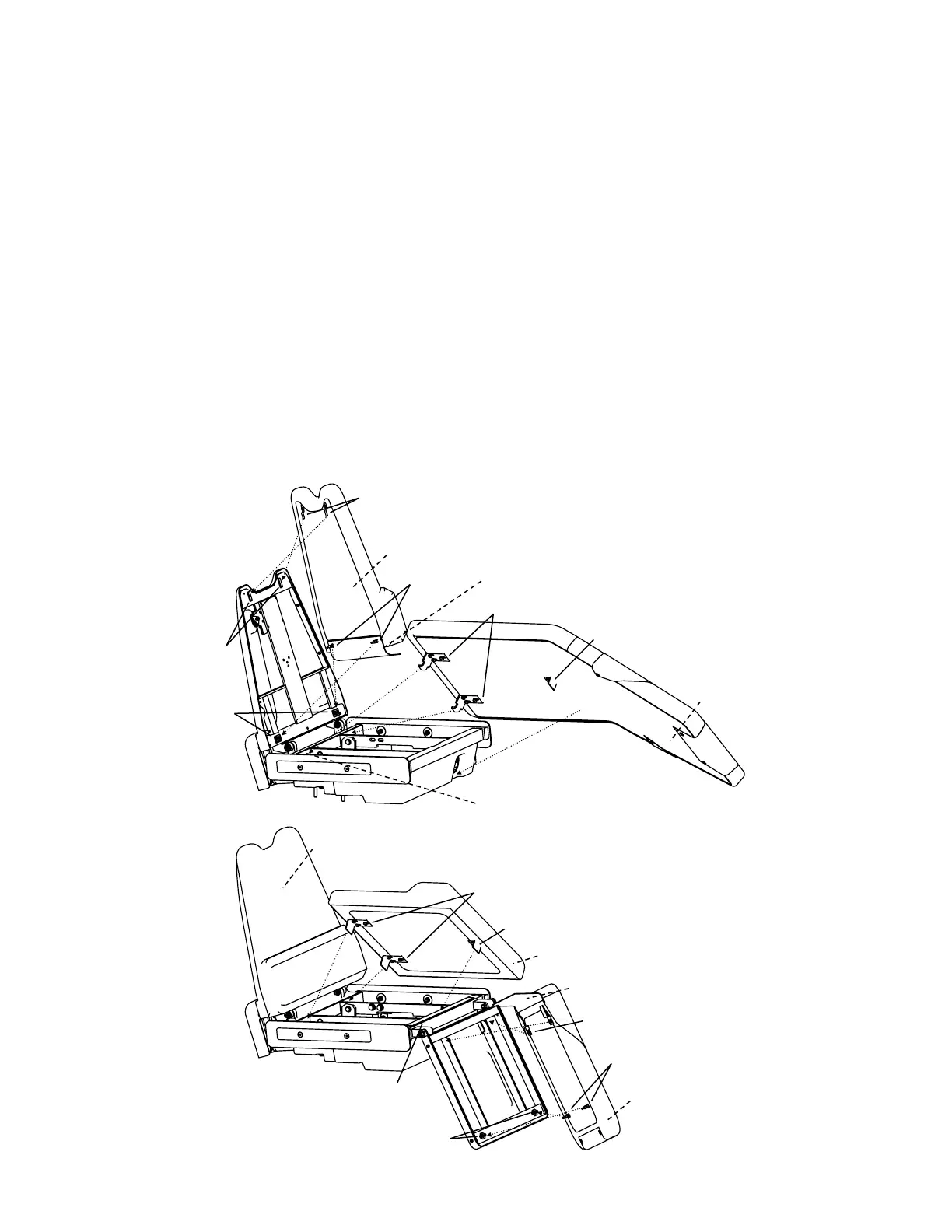

Upholstery Installation and Removal
Velcro for securing
Back Flap
Back
Frame
Slots
Receiving
Clips
Seat Locking Angle
Hangers
Bullets
Back
Upholstery
One Piece Seat
Upholstery
Back Upholstery
Aachment Same as Above
S2615
S2614
Seat Upholstery
Toe Upholstery
‘Z’ Brackets
‘Z’ Brackets
Bullets
Seat Locking Angle
Seat Locang Angles
Back Flap
Toe Flap
Velcro for securing
Toe Flap
Receiving Clips
