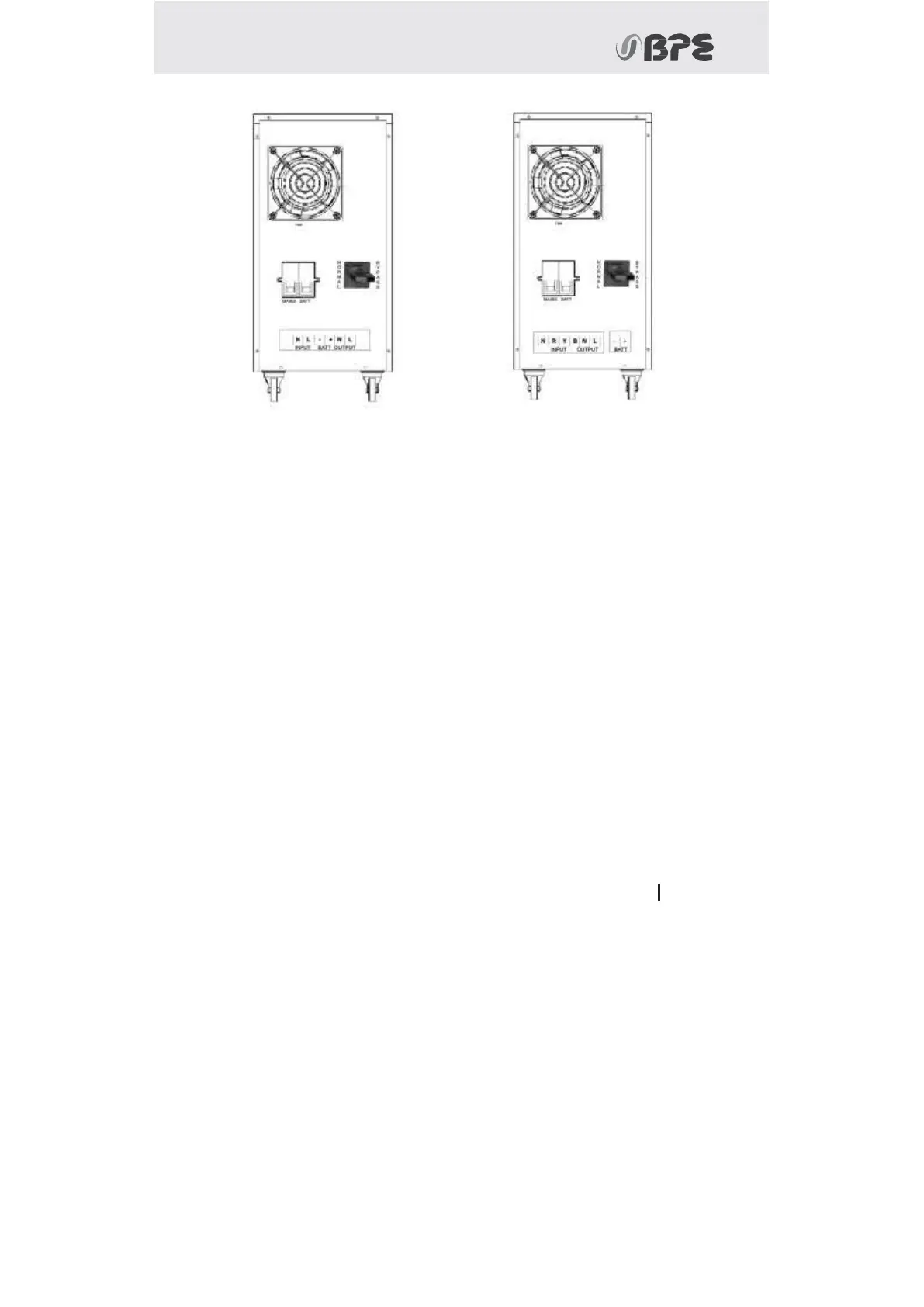

3 B. Rear Panel Diagram
4. I
NSTALLATION & OPERATION
Unpacking & Inspection:-
Examine the packing carton. Notify the carrier immediately, if damage is present.
Retain the package for future use.
UPS Installation:-
Connect the I n p ut power to a MCB of recommended Capacity of distribution
board. Charge the batteries for 8 hours before use so that all batteries attend
similar voltage level. The UPS will recharge the batteries automatically whenever
its power card is plugged into a wall outlet. You may use the UPS
immediately without recharging but the backup time may be less than the rating.
Connect the output load to the UPS. It is mandatory to connect ground point to
avoid any malfunctioning of UPS.
Operational Instructions:-
Ensure that the installation procedures and metering
, controls, indications as
specified, are followed and the battery of rated voltage is connected to the system.
