TF and RF Series B&S Commercial Kitchens
9

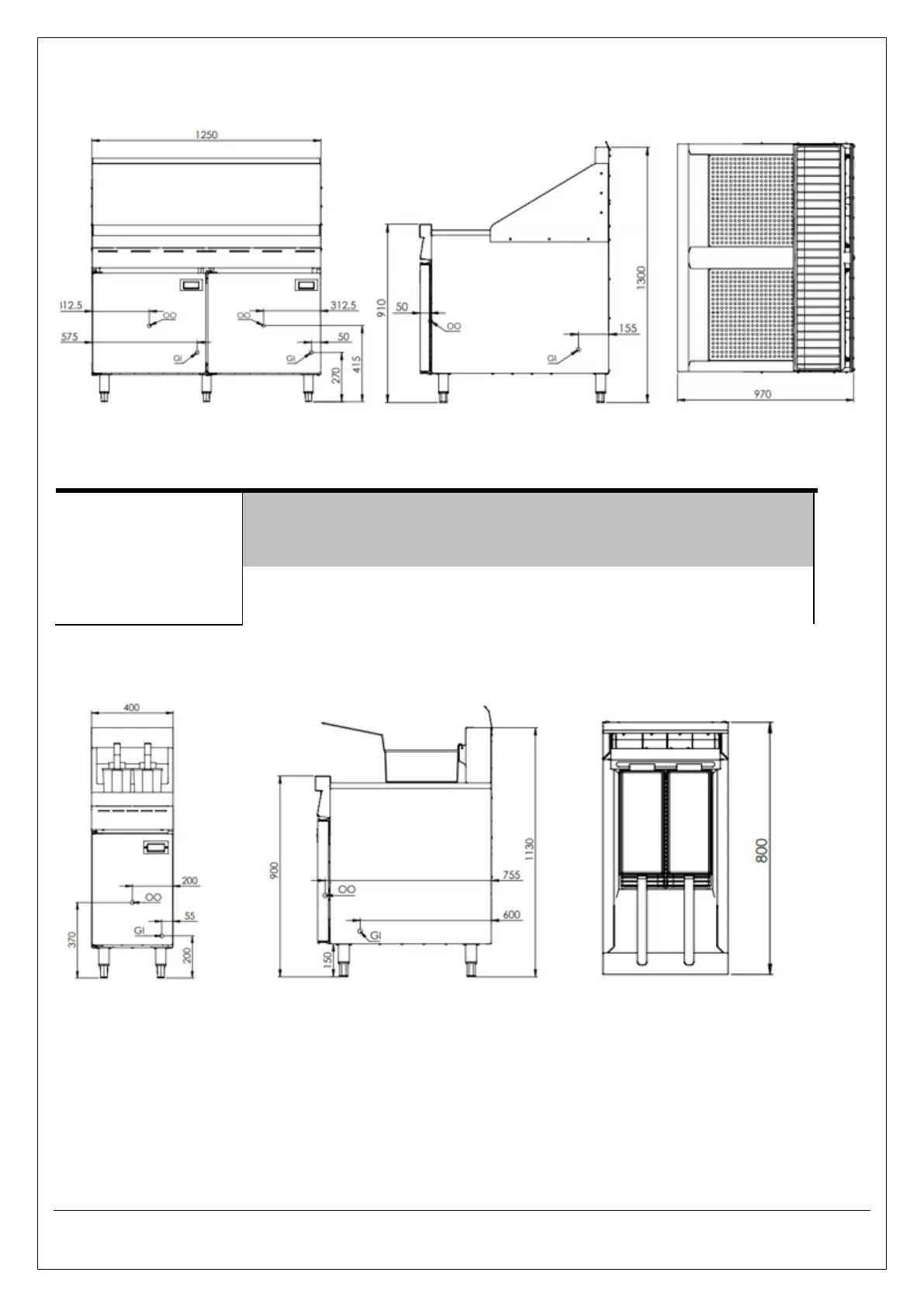

FIGURE 4: PLUMBING CONNECTIONS: RF-1/2/3/4
TABLE 5: PLUMBING CONNECTIONS
Connection
Position from
Floor
(mm)
Position from Rear
of Appliance (mm)
Position from
LHS/RHS edge of
Appliance (mm)
Gas Inlet (GI)
¾” male BSP
270 (+/-5)
156(+/-5)
50 (+/-5) RHS
Oil drain valve(D1)
Oil drain valve(D2)
1 ¼” Ball valve
1 ¼” Ball valve
415(+/-5)
415(+/-5)
920(+/-5)
920(+/-5)
315(+/-5) LHS
315(+/-5) RHS
FIGURE 4: PLUMBING CONNECTIONS: RF-400
