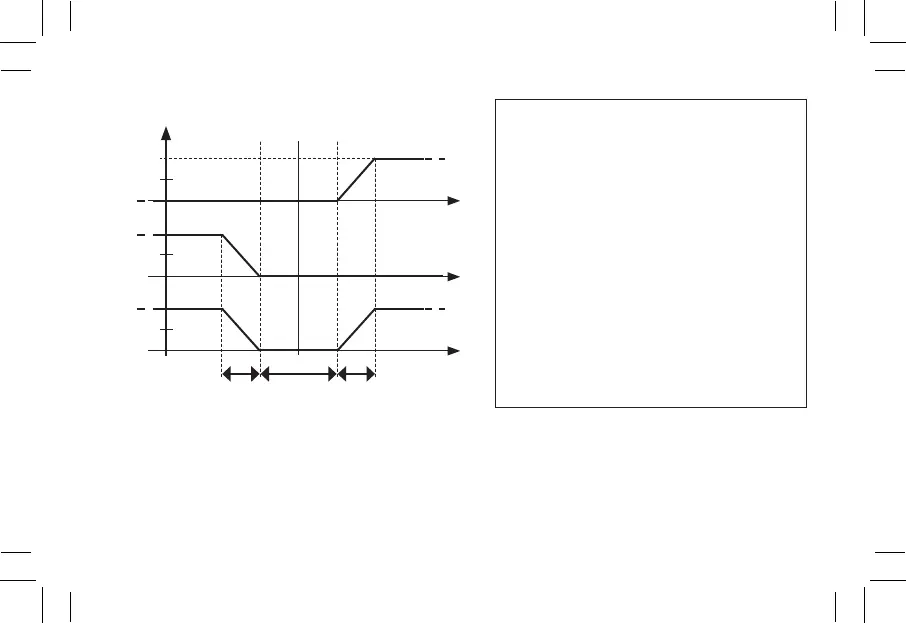

Fig. 14: Lo schema mostra il pilotaggio delle valvole in un impianto a 4 tubi con zona neutra. Lo schema presuppone uscite congurate per azione propor-
zionale diretta 0..10V e non tiene conto dell’eventuale azione del tempo integrativo. Analogamente l’uscita valvola di un sistema a 2 tubi (uscita
valvola caldo) verrà pilotata allo stesso modo, in questo caso la Ts (temperatura di setpoint) coinciderà con Ts ris in inverno e Ts raf in estate.
The scheme shows the valve control in a 4-pipes unit with neutral zone. In the diagram it is assumed that outputs are congured for proportional
direct action (0..10V) and that any integrative action is not taken into account. Likewise a 2-pipes system valve output (heating valve output)
would be driven at the same way, in this case Ts (set-point temperature) would coincide with Ts hea when in heating mode and Ts coo when in
cooling mode.
LEGENDA - EXPLANATION
V COOL: Uscita proporzionale valvola freddo
Cooling valve proportional output
V HEAT: Uscita proporzionale valvola caldo
Heating valve proportional output
V FAN: Uscita proporzionale ventilatore
Fan proportional output
HEAT: Uscita valvola caldo ON/OFF - ON/OFF Heating valve output
COOL: Uscita valvola freddo ON/OFF - ON/OFF Cooling valve output
Ta: Temperatura ambiente - room temperature
Ts: Temperatura setpoint - Set-point temperature
Ts hea: Temperatura setpoint in riscaldamento
Heating set-point temperature
Ts coo: Temperatura setpoint in raffrescamento
Cooling set-point temperature
ist: Isteresi temperatura ambiente
Ambient temperature hysteresis
Bp hea: Banda proporzionale in riscaldamento
Heating proportional band
ZN: Ampiezza zona neutra - Neutral zone amplitude
Bp coo: Banda proporzionale in raffrescamento
Cooling proportional band
Ts hea Ts cooTs
Bp hea Bp coo
ZN
C03 P20 C04
Ta
Ta
Ta
V
COOL
V
HEAT
V
FAN
10V
0V
5V
10V
0V
5V
10V
0V
5V
PILOTAGGIO USCITE - OUTPUT DRIVING
