Bpt VA/01 - Page 23

B
VA/01
+12V
M2
+
-
B IN1
B IN2
B IN3
B OUT
A
1
2
1
2
VAS/100.30
DVC/01
-
-
-
M2
12V
+
-
M1
B OUT
+
-
M1
B OUT
DVC/01
-
-
-
M2
12V
DVC/01
12V
+
-
M1
B OUT
M2
-
-
-
Le
L1
L2
L3
Page 7 - Manual FB00353-EN - ver. 1 - 12/2015 - © CAME S.p.A. The contents of this manual are subject to change at any time without prior notice.

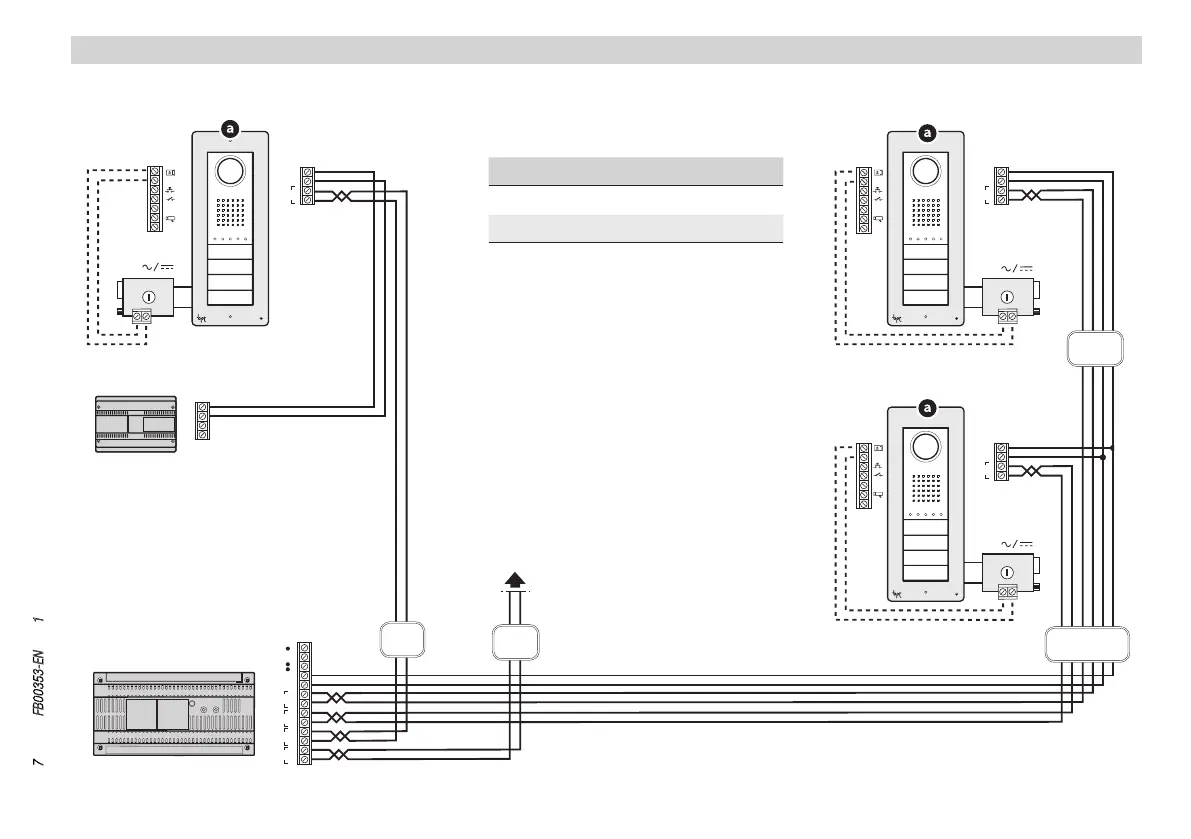

SAMPLE SYSTEMS WITH VA/01
Multi-family system with 󱤎 3 entry panels.
Admissible distances with cable VCM/2D
Line ≤/m
L1, L2, L3 100
L1 + L2 + L3 300
To the IN terminals of the
risers towards the indoor
receivers.
