BRABUS SHADOW - Page 109

Project rev.
Sheet rev.
Drawing by
Date
Modified by Description
A
B
C
D
E
F
1 2 3 4 5 6 7 8
Date of modification Sheet Loc
HL
/
Project ID Boat
Boat model
Product code
Copyright by
Sub-product code
Title
1 2 3 4 5 6 7 8
A
B
C
D
E
F
42
28 MY18
Axopar
B1: INTRODUCED DRAWING.
C2: RENAMED H18, H41 TO DECK LT COCKPIT, CHANGED MEASUREMENTS.
VV
PN
29.8.2017
TuM
2
C
22.9.2017
9.11.2017
37
24165

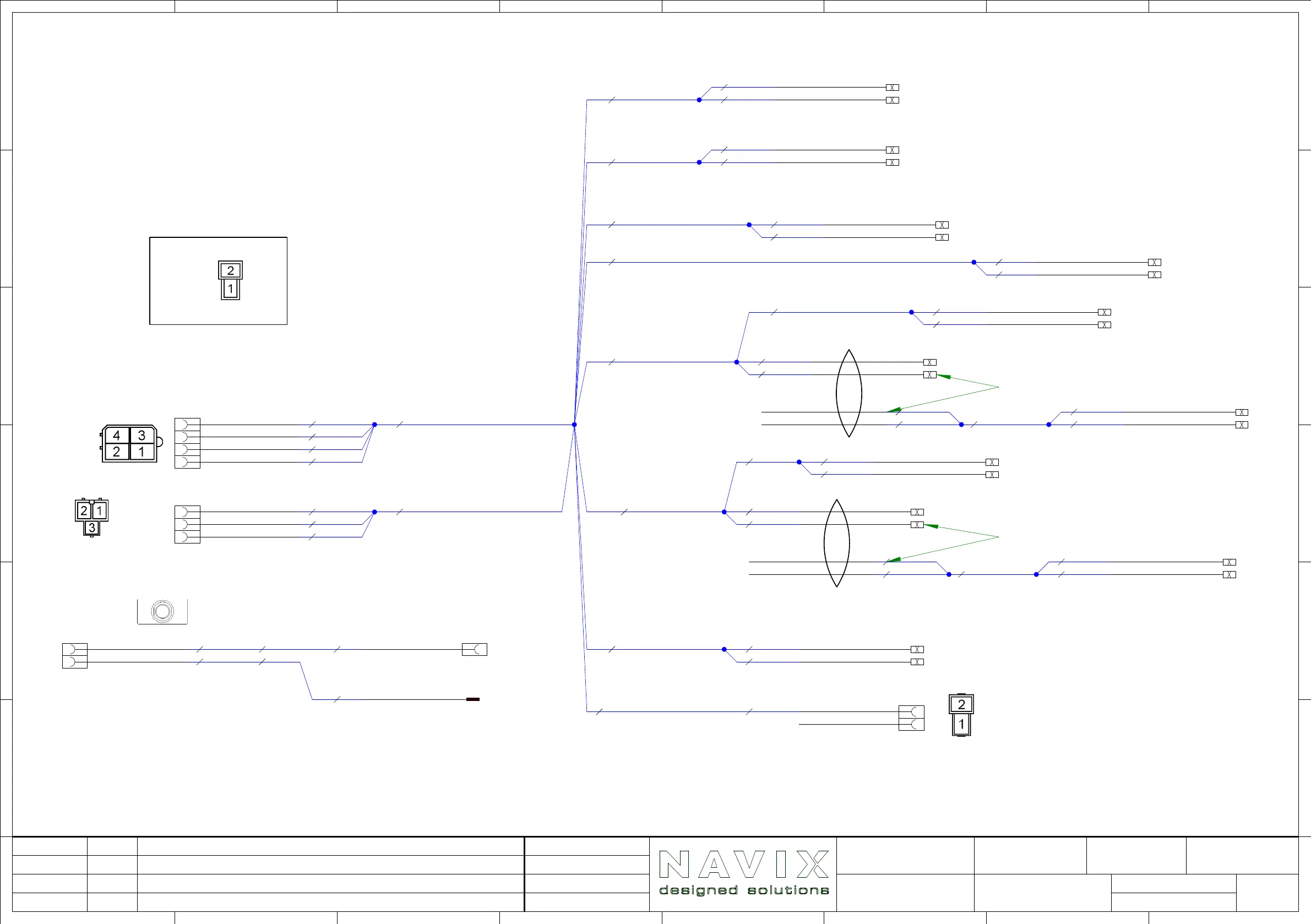

DECK LT HARNESS
(2NT BACK VIEW)
DECK_LT_OUT
-X6a:1
-H8#1 DECK LT COCKPIT
INPUT-
-X32:2
Lt1
DECK_LT_OUT
-X6a:2
-H10#1 DECK LT COCKPIT
INPUT-
-X32:3
88-10-A1B14-A00
-F.13#1
DECK_LT_OUT
-H19, -X6a:2
-H15#1 DECK LT CONN STB MID
INPUT-
-H19, -X32:3
DECK_LT_OUT
-H41
-H18#1 DECK LT COCKPIT PORT
INPUT-
-H41
Lt1
INPUT-
-H15
Lt1
DECK_LT_OUT
-H20
-H.15#1 DECK LT CONN
INPUT-
-H20
DECK_LT_OUT
-H.15
-H20#1 DECK LT STB AFT
INPUT-
-H.15
Lt1
DECK_LT_OUT
-X6a:1, -H22
-H9#1 DECK LT CONN PORT MID
INPUT-
-X32:2, -H22
DECK_LT_OUT
-H9
-H22#1 DECK LT PORT AFT
INPUT-
-H9
Lt1
DECK_LT_OUT
-H21
-H.9#1 DECK LT CONN
INPUT-
-H21
DECK_LT_OUT
-H.9
-H21#1 DECK LT PORT FORE
INPUT-
-H.9
Lt1
2637710
-X.3b
INPUT-
-X32:1
INPUT-
-X32:1, -H18
DECK_LT_OUT
-X6a:4, -H18
-H41#1 DECK LT COCKPIT STB
DECK_LT_OUT
-X6a:4
-H40#1 DECK LT
DECK_LT_OUT
-H15
-H19#1 DECK LT STB FORE
1
INPUT-
-H41, -H40
-X32#1
2
INPUT-
-H9, -H8
3
INPUT-
-H15, -H10
2635310
1
DECK_LT_OUT
-H8, -H9
-X6a#1
(4U BACK VIEW)
2
DECK_LT_OUT
-H15, -H10
3
DECK_LT_IN
-X3b:1
4
DECK_LT_OUT
-H40, -H41
2635410
1
DECK_LT_IN
-X6a:3
-X3b#1
2
2637810
1
INPUT+
-F13:1
4422.02
-F4/1#1
1
DECK_LT_IN
-F13:2
6434.01
-X.3b/1#1
1
INPUT+
-F4/1:1
-F13#1 DECK LTS
2
DECK_LT_IN
-X.3b/1:1
TAPE TOGETHER
TAPE TOGETHER
INCLUDED
(2UT BACK VIEW)
(3UT BACK VIEW)
SIDE POCKET PORT
SIDE POCKET STB
4000 mm
4000 mm 250 mm
250 mm
2.5 RED
1.5 WHITE/GREY
2.5 RED
1.5 WHITE/GREY
1.5 WHITE/GREY
1.5 WHITE/GREY
1.5 BLACK
1.5 WHITE/GREY
1.5 BLACK
1.5 WHITE/GREY
1.5 BLACK
2600 mm
1.5 WHITE/GREY
1.5 BLACK
1.5 WHITE/GREY
1.5 BLACK
2700 mm
1.5 WHITE/GREY
1.5 BLACK
2250 mm
1.5 WHITE/GREY
1.5 BLACK
2300 mm
1.5 WHITE/GREY
1.5 BLACK
1.5 WHITE/GREY
1.5 BLACK
1000 mm
1.5 WHITE/GREY
1.5 WHITE/GREY
1.5 WHITE/GREY
1500 mm
1.5 WHITE/GREY
1.5 WHITE/GREY
1.5 BLACK
1.5 WHITE/GREY
1.5 BLACK
1.5 BLACK
1.5 BLACK
500 mm
1.5 BLACK
5900 mm
2900 mm
2600 mm
3000 mm
3000 mm
1.5 BLACK
1.5 WHITE/GREY
1.5 BLACK
1.5 WHITE/GREY
