4 Product description

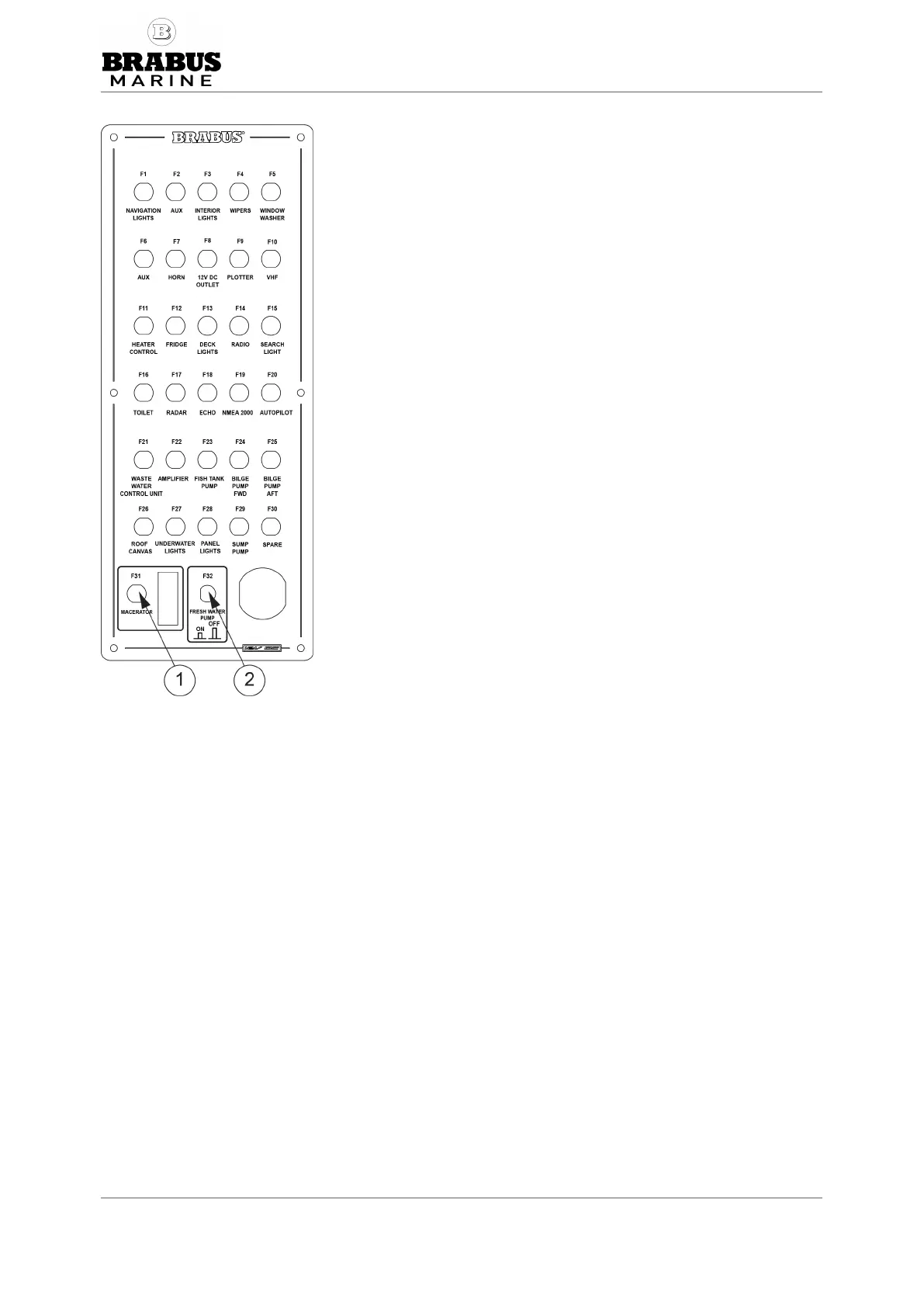

(1) Macerator switch and fuse
(2) Fresh water pump switch and fuse
4.2.6 Heavy duty fuses
There are fuse panels containing fuses for appliances and electronic circuits which require large
currents, such as windlasses, in the boat.
The bow thruster’s and windlasses' high-current fuses are located under the front deck hatch and the
battery charger fuses behind the toilet's wall panel.
The functioning of fuses can be checked from the holes in the fuse’s cover. If the metal strip visible in the
hole is unbroken, the fuse is operational.
If the metal strip is damaged, meaning that an overload has occurred, contact a qualified nautical
electrician.
Brabus Shadow 500 Cabin 2020 Document ID: 500CMY20202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 29
-
-
