4 Product description

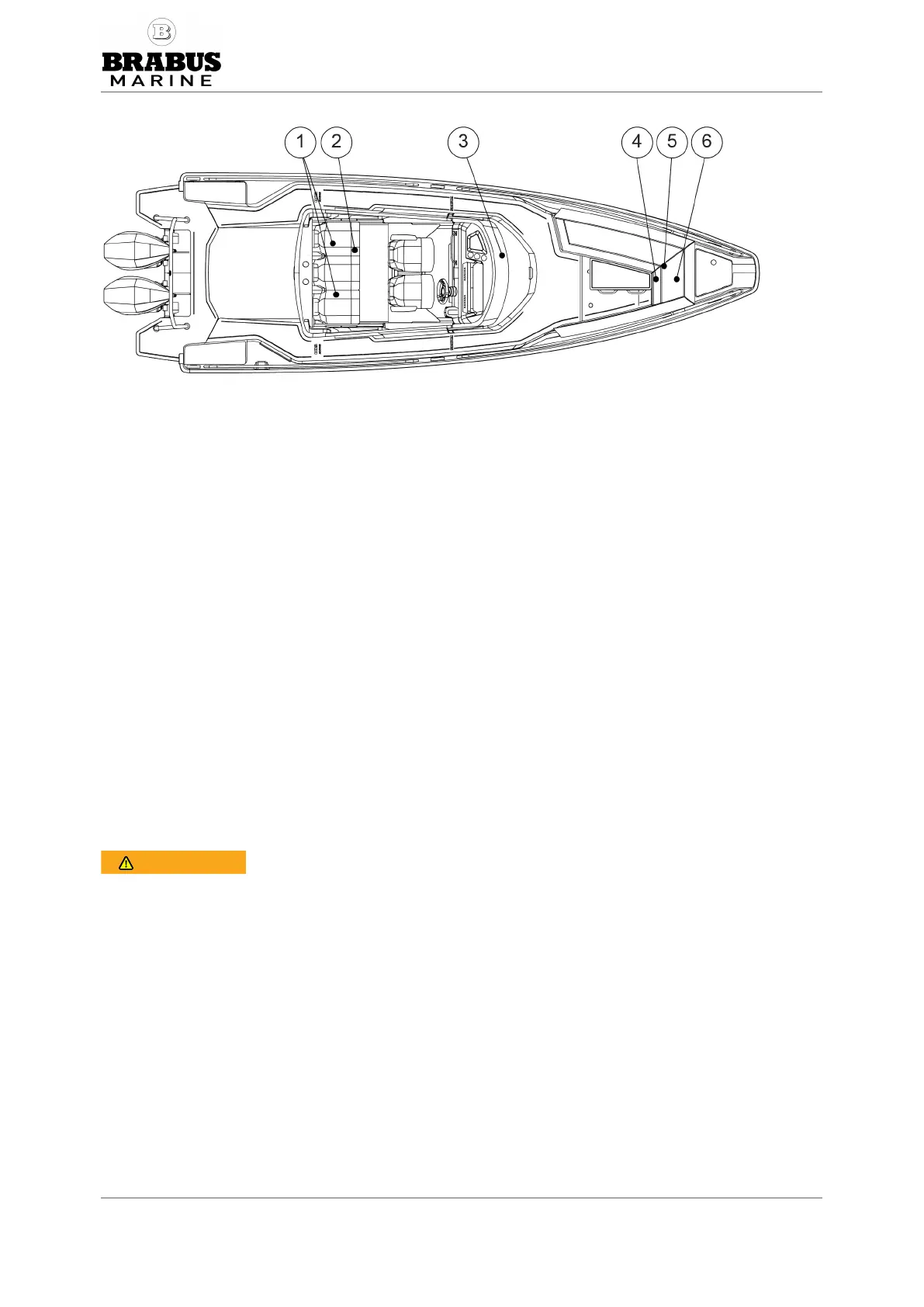

(1) Batteries

(2) Main switch panel

(3) Fuse panel

(4) Shore power plug

(5) Shore power system battery charger

(6) Bow thruster and windlass fuses and Aux battery

4.2.2 12 V system

Most of the boat's equipment uses the 12 V system.

The 12 V system consists of engine driven alternators, battery chargers for shore-side electricity,

batteries and equipment. The power is supplied to the batteries via diodes from either the engine

alternator or the shore power charger.

To activate the circuits in the 12V system, the main switches for the corresponding circuits need to be

activated and the fuses intact. When the electronic circuit is switched on, the equipment can be operated

from the main switch panel.

WARNING

• Never switch off the main switch when the engine is running, because

this may cause damage to the alternator.

• Never carry out electrical installations when the power is switched on.

• Never modify the boat’s electrical system or diagrams. Service and

maintenance must be carried out by a qualified electrician.

• Never alter or modify the rated amperage of the overcurrent protective

devices.

• Never install or replace electrical equipment with components that cause

the circuit’s nominal rated amperage to be exceeded.

• Never leave the boat unattended with the electrical system energized,

except automatic bilge pump, fire protection, and alarm circuits.

• Maintain any damaged equipment before taking it back to use.
