6 Operation

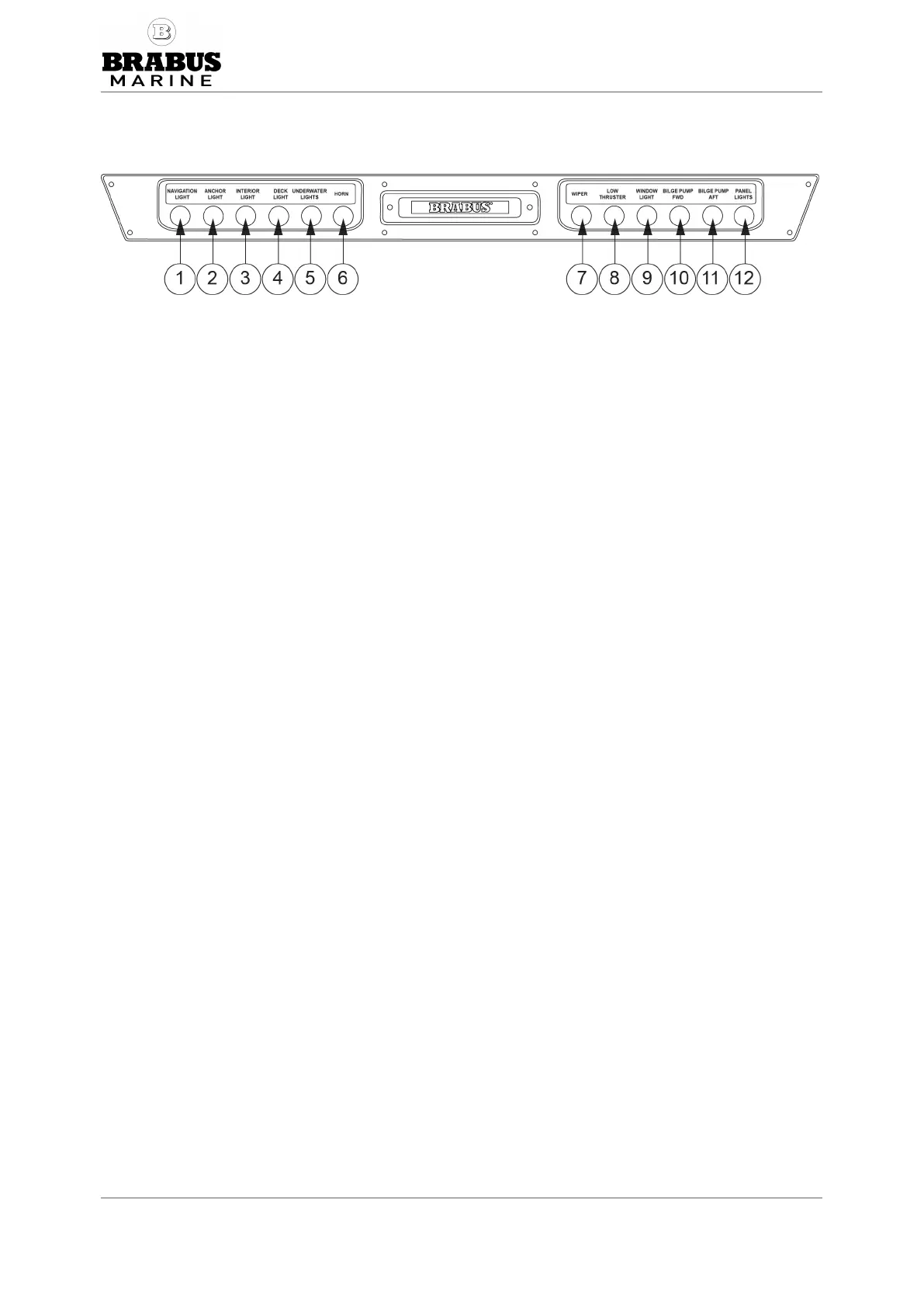

6.1.2 Steering console switch panel

(1) Navigation lights

(2) Anchor lights

(3) Interior lights

(4) Deck lights

(5) Underwater lights

(6) Horn

(7) Wiper

(8) Bow thruster

(9) Window light

(10) Forward bilge pump manual use

(11) Aft bilge pump manual use

(12) Panel lights

6.1.3 Windscreen wipers

The boat’s windscreen wipers are controlled by the switches in the boat’s steering console.

A switch for the windscreen washer is installed next to the switch for the windscreen wipers.

The windscreen wash-fluid tank is located beside the fresh water tank.

6.1.4 Steering system

6.1.4.1 Checking and topping up oil

Effective and properly working steering is crucial for the safety of the boat.

Hydraulic oil is added to the steering system via the filling plug in the steering wheel pump.

• Check the oil level in the pump before casting off.

The oil level must be approximately 10 mm below the filler hole.

• See the manufacturer's instructions for the steering system oil recommendation.

• For the steering systems provided by the engine manufacturer, see the engine manufacturer's

instructions.
