BRABUS SHADOW - Page 71

4mm hole in end of tube
DETAIL A
D16 internal ventline
D16 internal ventline
Grounding Bracket
3/8 shutoff valve
17mm under top
Fuel inlet D38 H60
AT STD115
3/8" plug (PLUGGED STD)
1 1/4" 5mm
13mm hose barb
4mm hole in end of tube
Filling ventline D16
4x fixing brackets
Weld jig to be used
240
664
S.Sundfors
22.08.2017
22.08.2017
S.Sundfors
1
2 3
4
5
6
7
8
1 8
7
6
5
4
3
2
A
B
C
E
D
F
F
E
D
C
B
A
Product / Project
AX81692
Axopar 28 EU
AxoparSFS-EN 22768-1, SFS-EN ISO 13920
A3
Designed by
Scale
General tolerances
Mass
Date
Drawing number
1:10
Approved by
Date
Quantity manufactured
Customer

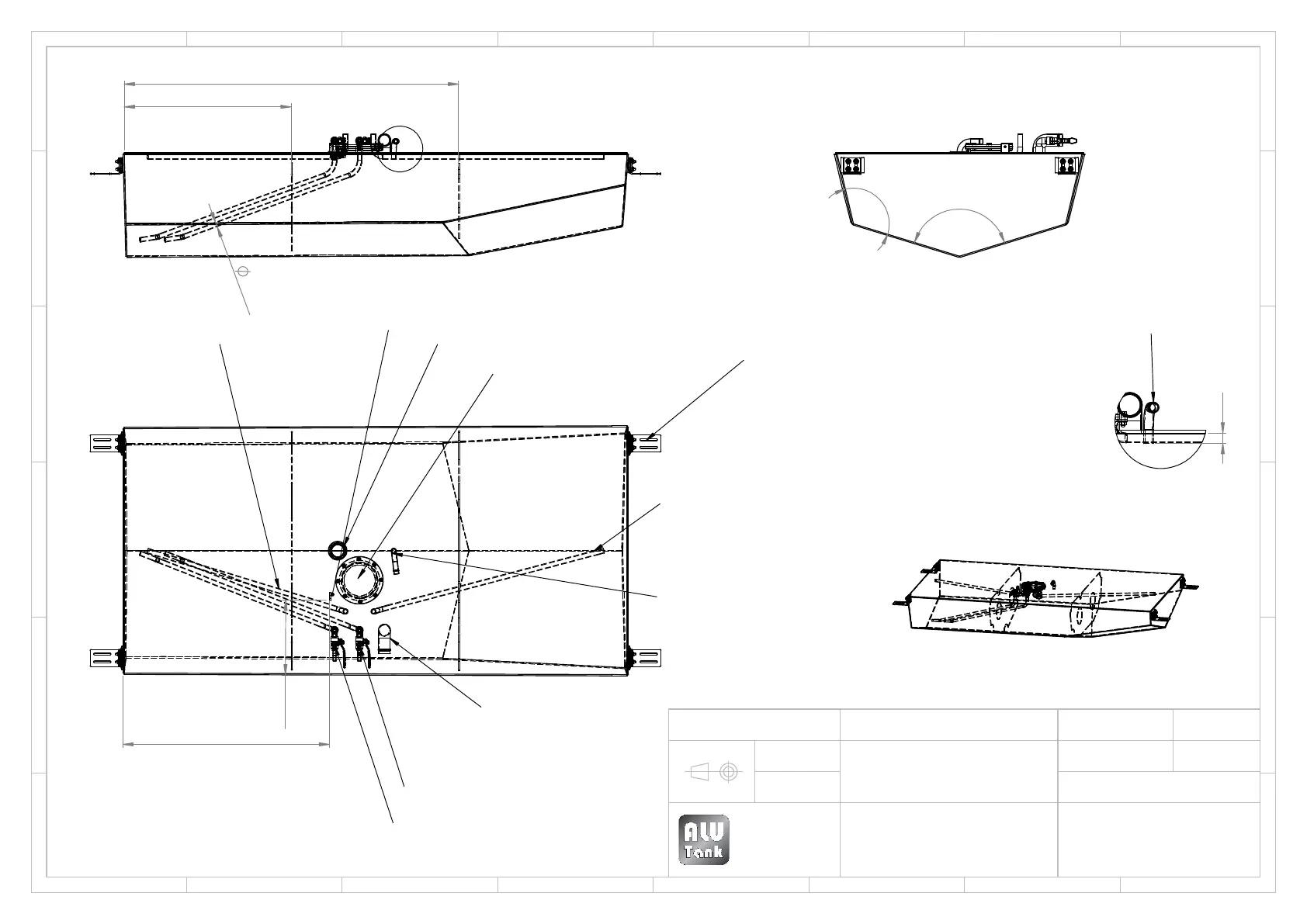

Fueltank AX28
Description
Rev
www.alutank.fi
A
537
18x2
1075
DETAIL A
SCALE 1 : 5
Filling vent
17
14
6,1
°
120,
1
°
