Bradco CONTRACTOR 408A BACKHOE - Backhoe Lubrication Diagram

LUBRICATION
408A BACKHOE
H
H

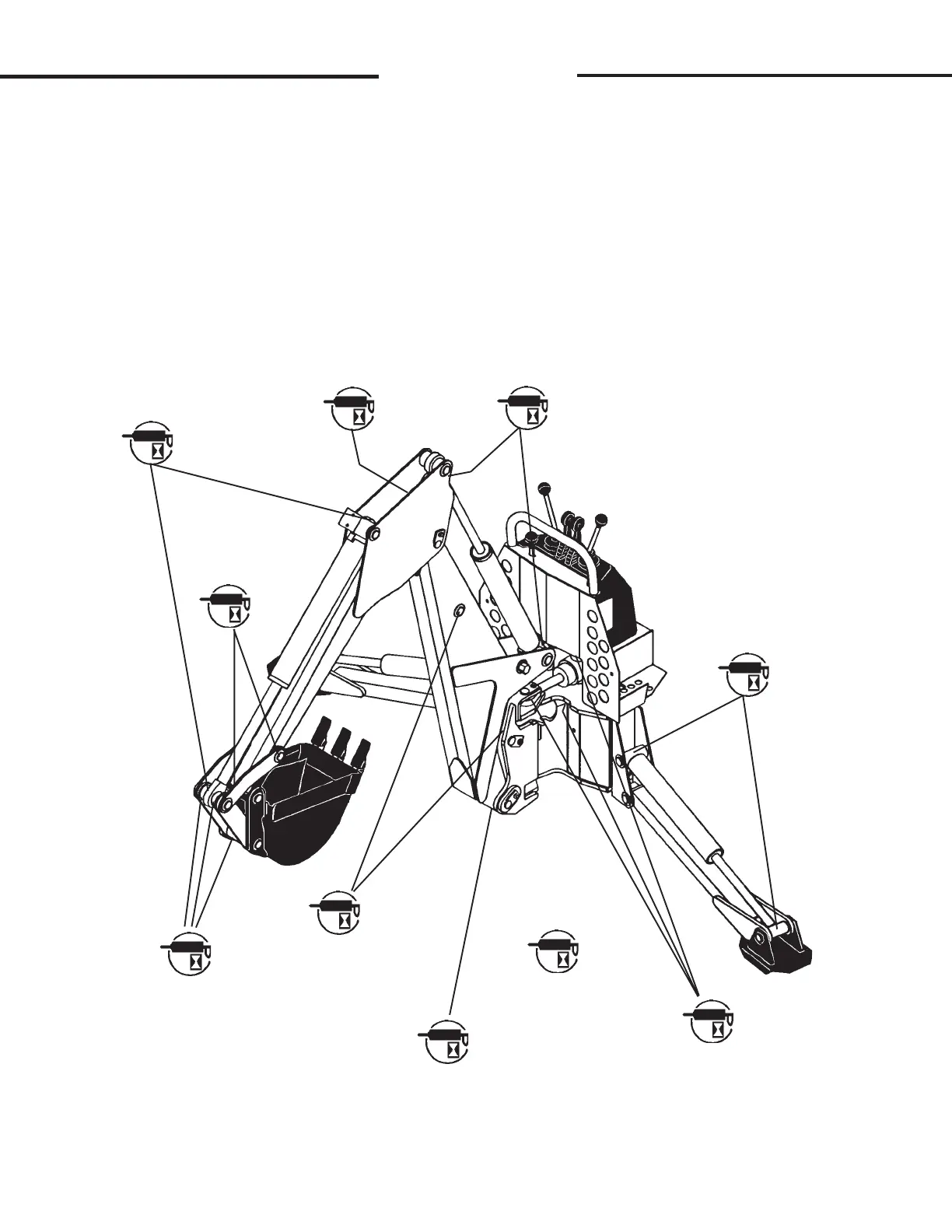

BACKHOE LUBRICATION DIAGRAM
The following diagram is provided to help you locate all the points on
your backhoe that need lubricating. Be sure to follow the lubrication inter-
vals as noted by the lubrication symbols used on this page. Always replace
any missing grease fittings as soon as possible.
8
BUCKET
LINK
BUSHINGS
8
BOOM CYLINDER END
AND BOOM CYLINDER
PIN
8
BOOM / SWING POST
PIVOT
8
8
MAINFRAME / SWING
POST PIVOT PINS
SWING CYLINDER END
AND SWING
TRUNNION PINS
STABILIZER
CYLINDER ENDS
8
DIPPER LINK AND
DIPPER / BUCKET
PIVOT
8
8
8
8
DIPPER
CYLINDER
ENDS
BOOM / DIPPER
PIVOT
BUCKET
CYLINDER
ENDS
6746
12-13-95
