Bradco SG26 - Electrical Schematics - Control Handles (#104367 - Direct, & #104368 - Use with #101096)

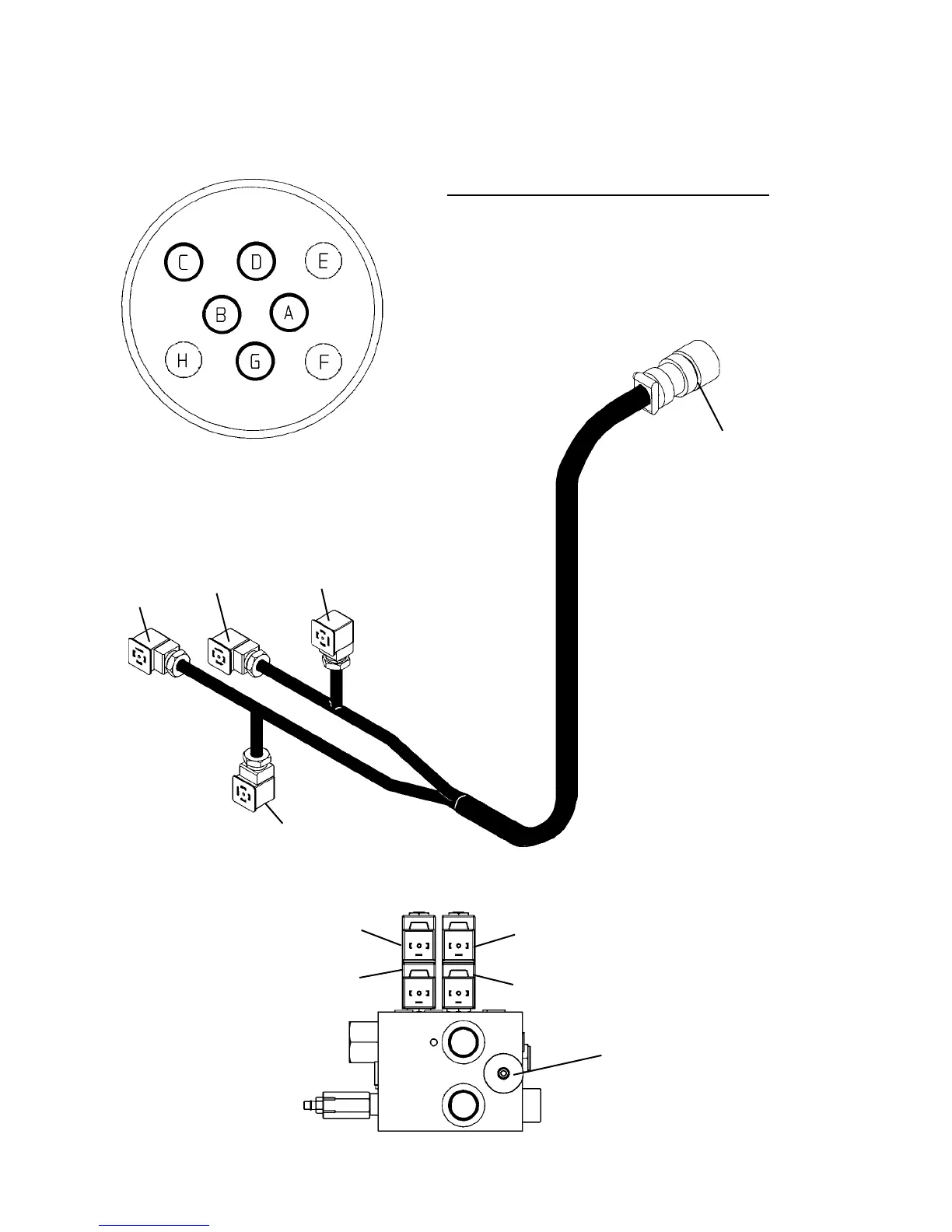

ELECTRICAL SCHEMATIC
12863 7-25-14
WIRING HARNESS #108035
DEUTSCH
CONNECTOR
C
D
B
G
C
D
B
G
CYLINDER SPEED
CONTROL KNOB
CONTROL VALVE
DEUTSCH CONNECTOR PIN DETAIL
A = BLACK (GROUND)
B = RED (LIFT - DOWN)
C = BROWN (SWING - RIGHT)
D = DARK GREEN (SWING - LEFT)
G = YELLOW (LIFT - UP)
75578
61
