Bradford White ACCESSORY MODULE - Page 55

Inlet Shut-off Valve Installation
-55-
Assemble the Inlet Shut-off Valve Wire Harness and the Accessory Module – cont’d

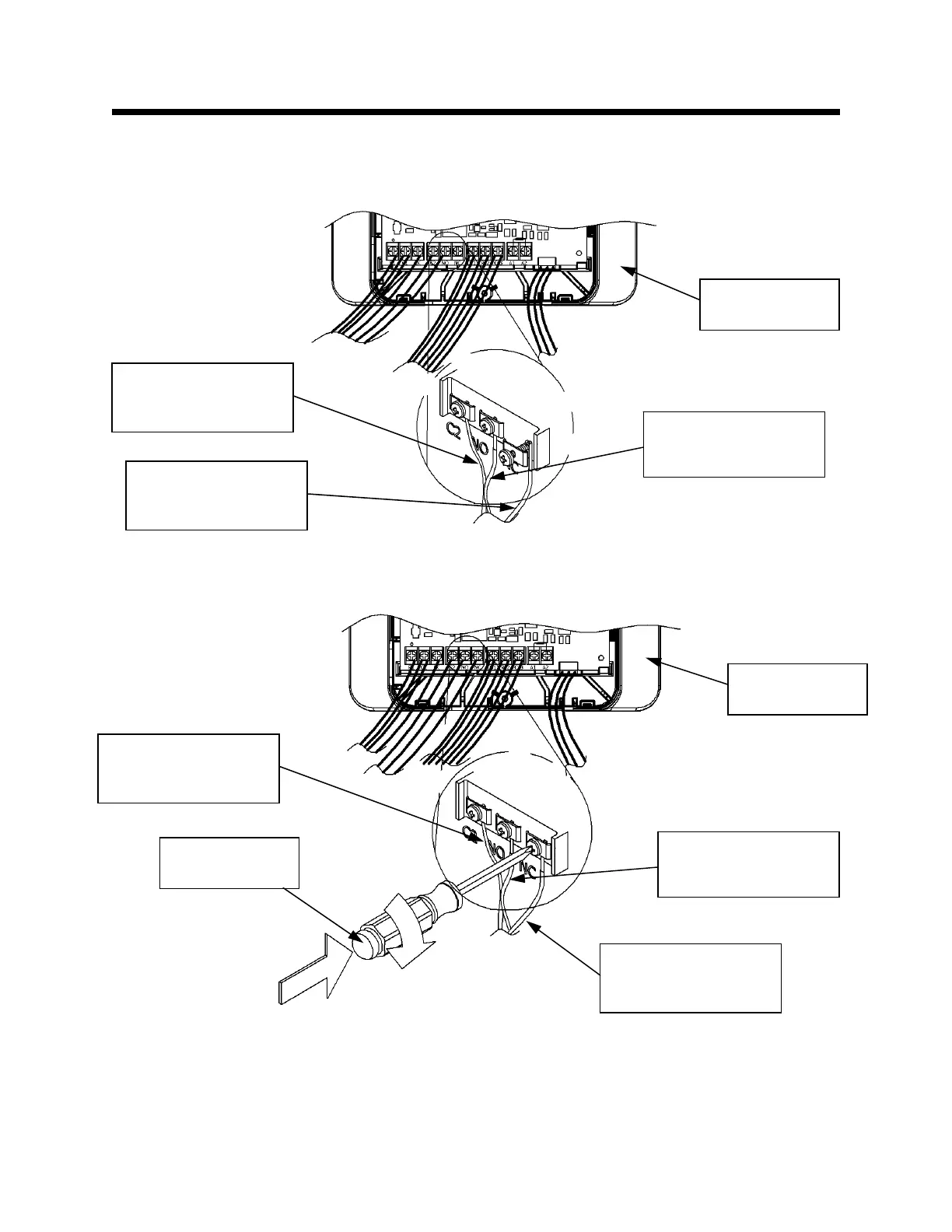

Step 13: Insert the black wire, from the Inlet Shut-off Valve wire harness, under the screw labeled “NC,” as
shown in Figure 80.
Connect the Inlet Shut-off Valve Wire Harness to the Accessory Module – cont’d
Step 14: Tighten the screw labeled “NC.” This is shown in Figure 81.
The Inlet Shut-off Valve installation is complete. Proceed to the
installation sections for the other purchased packages. Or, if
finished, proceed to the Start-up Procedure on page 67.
Figure 81
Figure 80
Accessory
Module
Inlet Shut-off Valve
Wire Harness Blue
Wire
Inlet Shut-off Valve
Wire Harness Brown
Wire
Inlet Shut-off Valve
Wire Harness Black
Wire
Accessory
Module
Inlet Shut-off Valve
Wire Harness Blue
Wire
Inlet Shut-off Valve
Wire Harness Brown
Wire
Inlet Shut-off Valve
Wire Harness Black
Wire
Philips head
screwdriver
