Inlet Shut-off Valve Installation
-54-
Assemble the Inlet Shut-off Valve Wire Harness and the Accessory Module – cont’d

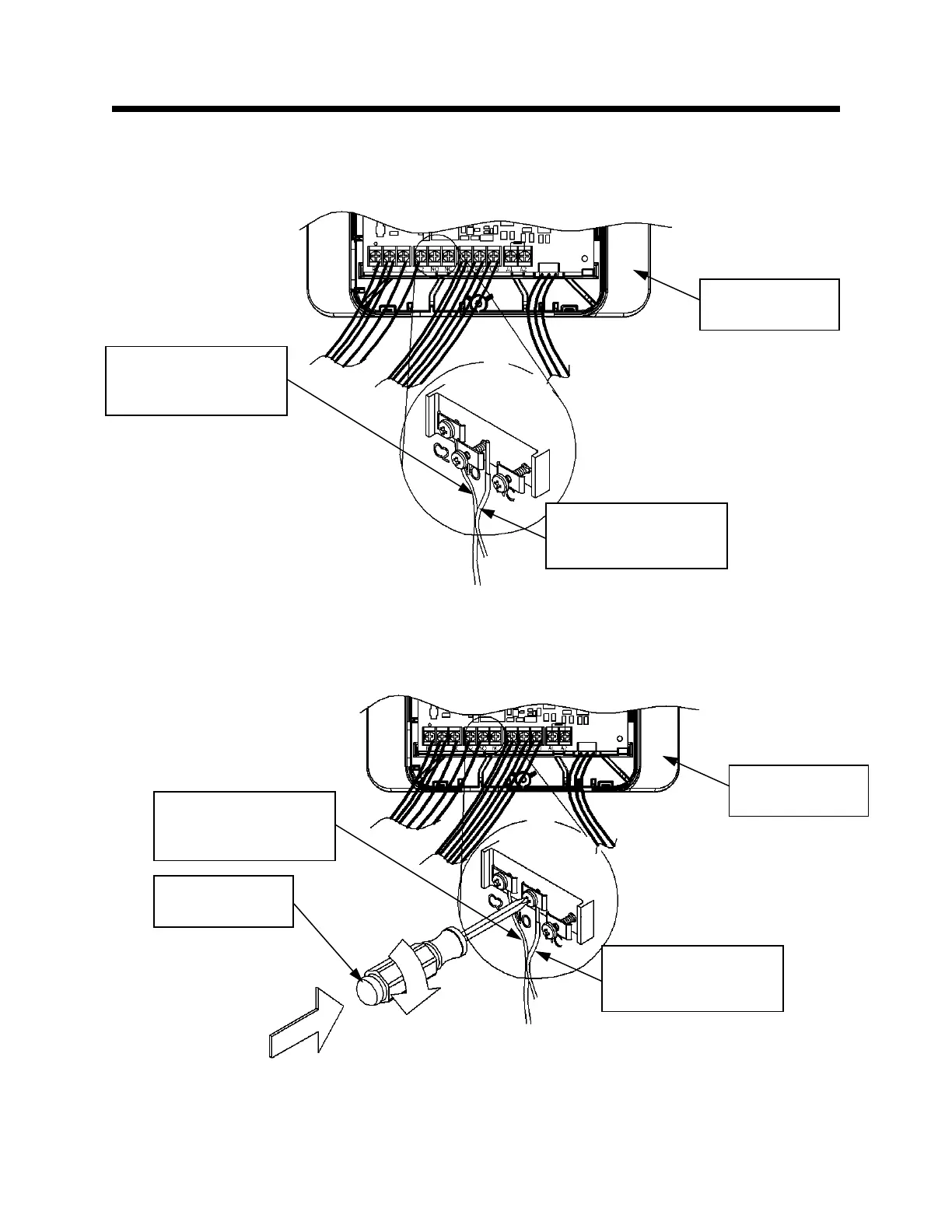

Step 11: Insert the brown wire, from the Inlet Shut-off Valve wire harness, under the screw labeled “NO,”
as shown in Figure 78.
Connect the Inlet Shut-off Valve Wire Harness and the Accessory Module – cont’d
Step 12: Tighten the screw labeled “NO.” This is shown in Figure 79.
Figure 78
Figure 79
Accessory
Module
Inlet Shut-off Valve
Wire Harness Blue
Wire
Inlet Shut-off Valve
Wire Harness Brown
Wire
Accessory
Module
Inlet Shut-off Valve
Wire Harness Blue
Wire
Inlet Shut-off Valve
Wire Harness Brown
Wire
Philips head
screwdriver
